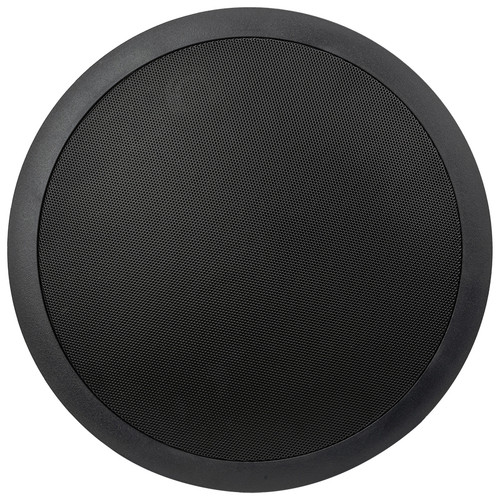

SoundTube CM62-BGM 6.5" Coaxial In-Ceiling Background Music Speaker - Black (Discontinued)
SoundTube CM62-BGM 6.5" Coaxial In-Ceiling Background Music Speaker - Black (Discontinued)
SoundTube CM62-BGM 6.5" Coaxial In-Ceiling Background Music Speaker - Black (Discontinued)
SoundTube CM62-BGM 6.5" Coaxial In-Ceiling Background Music Speaker - Black (Discontinued)
By SoundTube

SoundTube CM62-BGM 6.5" Coaxial In-Ceiling Background Music Speaker - Black (Discontinued)

Write a Review
Part #:
CM62-BGM-BK
Model #:
CM62-BGM
Availability: This model has been replaced. View new model
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The SoundTube CM62-BGM is a 6.5" coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth.

Description

The CM62-BGM is a 6.5" coaxial two-way blind-mount in-ceiling speaker which delivers true high-efficiency and performance across the operating bandwidth. By incorporating a 6.5" polypropylene driver with a rubber surround and a 1" silk dome tweeter in a drawn steel backcan with a tuned port, this speaker delivers maximum frequency response (60 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension fixed-wing mounting system with a 21-gauge "full-metal" steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge and optional pre-construction bracket, as well as a six-position tap switch for 25, 70.7 and 100V applications with a transformer bypass position.

Features
  • One 6.5" (165 mm) polypropylene woofer with rubber surround and one 1" (25.4 mm) silk dome tweeter
  • BeamRing™ technology for mid-range clarity and smooth off axis performance
  • Easy-access six-position tap switch for 25/70.7/100V and transformer bypass settings allows for easy ordering, stocking and installation
  • Tuned port on baffle for added musicality and bass response down to 64 Hz (-10 dB)
  • Reduced amplification costs and maximum efficiency of 85.0 dB sensitivity, 16 ohm impedance
  • Incorporates a painted steel grille for lasting durability
  • Adaptable to material thicknesses ranging from 0.035" (0.9 mm) to 1.6" (40.6 mm)
  • UL 1480 and 2043
  • High-quality black or white painted finish. Custom colors available
  • Included accessories: Tile bridge, UL listed 0.5" conduit clamp, paint shield

Specifications
System Type 6.5" coaxial, in-ceiling, ported (32W transformer for 25/70.7/100V or transformer bypass)
Impedance (Nominal) 16 ohm
Sensitivity dB @ 2.83 V/1 m 85.0 dB
Sensitivity dB @ 1 W/1 m 88.0 dB
Frequency Response (-3 dB) 80 Hz - 20 kHz
Frequency Response (-10 dB) 60 Hz - 22 kHz
Max. Program Power 100W
Max. Continuous Power RMS 50W
Max. Power SPL @ 1 m 105.0 dB
Coverage Angle (-6 dB @ 2 kHz) 180º
Coverage Angle (-6 dB @ 10 kHz) 40º
Coverage Angle (Averaged 2-10 kHz) 80º
Directivity Factor (Q) 5.1 (averaged 100 Hz - 10 kHz) ; 5.0 (2 kHz)
Directivity Index (DI) 6.2 dB (averaged 100 Hz - 10 kHz) ; 7.0 dB (2 kHz)
Tap Selector Six-position rotary switch with transformer bypass position
Transducer - Low-Frequency Driver 6.5" (165 mm) Polypropylene cone, rubber surround
Transducer - High-Frequency Driver 1" (25 mm) Silk dome tweeter
Low-Frequency Voice Coil 1" (25.4 mm)
Crossover Frequency 4.0 kHz
Network Type: Low Pass 12 dB per octave, 2nd order
Network Type: High Pass 6 dB per octave, 1st order
Enclosure Material Drawn steel backcan with ABS baffle
Grille Painted steel
Inputs Ceramic terminal connector
Colors Black or white
Mounting Hole Diameter 10.5" (266.7 mm)
Min – Max Ceiling Thickness 0.035" (0.9 mm) – 1.6" (40.6 mm)
Visible Diameter 11.75" (298.5 mm)
Visible Height 0.34" (8.6 mm)
Backcan Diameter 9.67" (245.6 mm)
Backcan Height 5.75" (146.1 mm)
Weight 8 lbs (3.6 kg)
Shipping Weight 9 lbs (4.1 kg)
