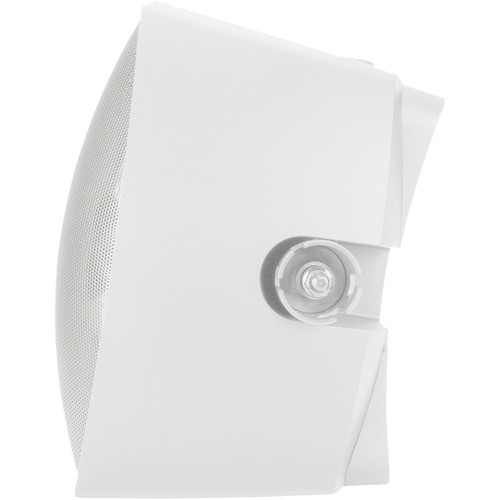

SoundTube SM590i-II 5.25" 2-Way Surface Mount Outdoor Speaker - White (Discontinued)

SoundTube SM590i-II 5.25" 2-Way Surface Mount Outdoor Speaker - White (Discontinued)

Name: SoundTube SM590i-II 5.25" 2-Way Surface Mount Outdoor Speaker - White (Discontinued)
Brand: SoundTube
SKU: SOUNDT-SM590i-II-WH
Price: 345 USD
Availability: OutOfStock

Write a Review

Part #:

SM590i-II-WH

Model #:

SM590i-II

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The SoundTube SM590I-II speaker includes a higher power output for long throw and high SPL requirements as well as one 5.25" polypropylene woofer and one 1" tractrix horn-loaded, convex aluminum dome tweeter in a ported enclosure.

Description

SoundTube SM590i-II 5.25-inch High Power Surface Mount Outdoor Speaker

The SM590i is a high-powered 5.25" two-way, horn-loaded loudspeaker in a ported surface-mount enclosure that delivers effective low-end response (69 Hz @ -10 dB) and consistent dispersion pattern (2 to 10 kHz, independently verified). The SM590i incorporates a low-profile grille, proprietary motor-board, and six-position tap switch with transformer bypass. Mounting hardware is included and features a fast-action Speed LeverTM for easy and secure installation with a proprietary captured ball mounting system. Optional accessories include a pole mount adaptor, a bent shaft and a U-bracket.

Features

High-power output (106.0 dB) for long throw and high SPL requirements
One 5.25" (133 mm) polypropylene woofer and one 1" (25 mm) horn-loaded convex titanium dome tweeter mounted to a proprietary cast-aluminum baffle and heat sink
87.0 dB average sensitivity offers high output capabilities and reduced amplification costs
Includes weatherized components for indoor/outdoor applications
Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position
Aluminum grille with powder-coat finish
Includes a tool-free SpeedLeverTM captured ball mounting system for a fast and secure installation
Vertical and horizontal pivoting offer precision aiming for indoor and outdoor applications
Pan and tilt capabilities
CE approved
High-quality black or white paint finish. Custom colors available
Included Accessories: Corrosion-resistant captured ball mount, safety cable, Euroblock connector, and terminal weather boot
Optional accessories: Pole-mount adaptor (AC-SM-PMA5), bent shaft (AC-SMBS5), U-bracket (AC-SM-UB5)

Specifications

Color	White
Certifications	CCC, CE, RoHS
Enclosure Properties	ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume	349.6 cu in (5728.92 cu cm)
Included Accessories	Euroblock, Mounting Hardware, Safety Cable, Terminal Weather Boot
Source Inputs	4 Pin 5.08mm Euroblock
Crossover Frequency	3.0 kHz
Directivity Factor (Q)	5.7 and 9.3 (Averaged 100Hz - 10kHz, @ 2kHz)
Directivity Index (DI) dB	6.0dB and 9.7dB (Averaged 100Hz - 10kHz, @ 2kHz)
Frequency Response (± 10 dB)	69 Hz - 22 kHz
Frequency Response (± 3 dB)	100 Hz - 22 kHz
Grille Properties	Aluminum, Powder-Coated
Low Frequency Voice Coil	1" (25.4 mm)
Magnetically Boosted	No
Max. Continuous Power RMS	80W
Max. Program Power	160W
Minimum Impedance (Ω Ohms)	7 Ω
Mounting Depth	10.48" (266.2 mm)
Network Type: High Pass	12 dB per octave 2nd order
Nominal Impedance (Ω Ohms)	8 Ω
Tweeter Driver	1" Convex Titanium Horn-Loaded
Woofer Driver	5.25" Polypropylene
Sensitivity	87 dB
Tap Selector	Rotary Switch
Transformer Options	25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps (25V/70.0V/100V)	8W/64W/64W
Dimensions (H x W)	11.4" (289.6 mm) x 8.36" (212.3 mm)
Shipping Weight	10.4 lbs (4.72 kg)
