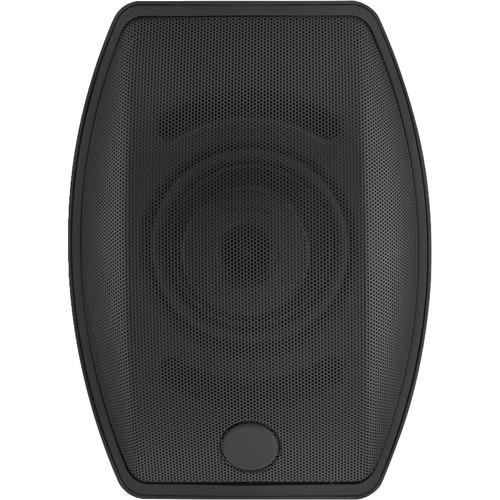

SoundTube's WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille and an aluminum grille with powder-coat finish to keep water from the drivers and internal electronics in even the most extreme weather conditions. The speaker includes a higher power output for long throw and high SPL requirements as well as one 5.25" polypropylene woofer and one 1" tractrix horn-loaded, convex aluminum dome tweeter in a ported enclosure. SM590I-II-WX has an 87.0 dB average sensitivity which offers high output capabilities and reduced amplification costs.
The speaker has an easy access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position and utilizes patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Utilizing the new SM590I-II Stealth™ bracket mounting systems, as well as vertical and horizontal pivoting, allow the SM590I-II-WX to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, wall mount bracket, and terminal weather boot are included.
| Color | Black |
|---|---|
| Certifications | CCC, CE, IP44, RoHS |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 349.6 cu in (5728.92 cu cm) |
| Included Accessories | Euroblock, Mounting Hardware, Safety Cable, Terminal Weather Boot |
| Source Inputs | 4 Pin 5.08 mm Euroblock |
| Crossover Frequency | 3.0 kHz |
| Directivity Factor (Q) | 5.7 and 9.3 (Averaged 100Hz - 10kHz, @ 2kHz) |
| Directivity Index (DI) dB | 6.0dB and 9.7dB (Averaged 100Hz - 10kHz, @ 2kHz) |
| Frequency Response (± 10 dB) | 69 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 100 Hz - 22 kHz |
| Grille Properties | Aluminum, Powder-Coated, Weatherproof |
| Low Frequency Voice Coil | 1" (25.4 mm) |
| Magnetically Boosted | No |
| Max. Continuous Power RMS | 80W |
| Max. Program Power | 160W |
| Minimum Impedance (Ω Ohms) | 7 Ω |
| Mounting Depth | 10.48" (266.2 mm) |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1" Convex Titanium Horn-Loaded |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 87 dB |
| Sensitivity dB @ 2.83V/1M | 87 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps (25V/70.0V/100V) | 8W / 64W / 64W |
| Dimensions (H x W) | 11.4" (289.6 mm) x 8.36" (212.3 mm) |
| Shipping Weight | 10.5 lbs (4.76 kg) |
