The SurgeX Space Saver line has answered the calls for a more efficient space-saving unit that provides premium power protection. With a revolutionary design that enables more rack space, it features compact solutions that can be mounted with plugs facing up or down for maximum convenience and flexibility.
Power distribution is neatly organized at the back of the rack and provides easy access to the power cable configuration, eliminating the need to install the custom length power cords that large racks require. They feature a remote interface with indicator LED, over/under voltage protection LED, power on/off LED, self-test LED, and two power configurations for easy power management.

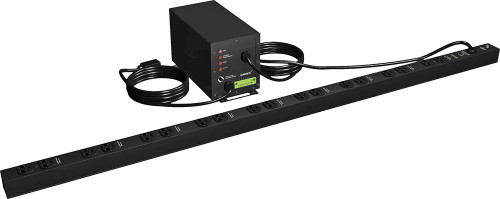

The SurgeX CM-1115-RT24 Surge Eliminator with Power Strip is incorporated with the patented SurgeX Advanced Series Mode surge elimination technology, it is superior to conventional protectors and insures the highest level of protection against damaging surges, spikes, over voltage, EMI/RFI noise, and wiring faults. They are completely non-sacrificial and eliminate all surge energy without producing harmful side effects such as ground contamination or common-mode disturbances. SurgeX Space Savers are the ultimate audio visual protection solution when space is at a premium.
| Operational Voltage Range | 90 to 150 Volts AC |
|---|---|
| Current rating | 15/20 Amps |
| Power Rating | 1,800/2,400 Watts |
| Maximum Load Inrush Energy | 1000 Joules total during power-up |
| Under-Voltage Shutdown | 90 V (resume at 100V) |
| Over-Voltage Shutdown | 145V (resume at 135V) |
| Surge Let-through Voltage | Zero let-through Voltage for a 6000 Volt surge |
| Meets Federal Guidelines | Grade A, Class 1, Mode 1 (CID A-A-55818) |
| EMI/RFI Filter, Normal Mode | 40 dB @ 100 KHz, 50dB @ 300 KHz, 50 dB @ 3 MHz,50 dB @ 30 MHz (50 Ohm load) |
| EMI/RFI Filter, Common Mode | 18dB @ 300 KHz, 30 dB @ 1 MHz, 50 dB @ 5 MHz,50 dB @ 20 MHz (50 Ohm load) |
| Maximum Applied Surge Voltage | 6,000 Volts |
| Maximum Applied Surge Current | Unlimited (due to current limiting) |
| Maximum Applied Surge Energy | Unlimited (due to current limiting) |
| Endurance | (C62.41-1991 category B3 pulses), 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000 |
| Number of Outlets | 2, 8, 18, or 24; Model Dependent |
| Remote Control Voltage | 5 to 30 Volts DC |
| Remote Control Current Draw | 4 mA maximum |
| Contact Closure Max. Resistance | 100 Ohms |
| Auxiliary Relay Contact Rating | 30 Volts DC at 1 Amp |
| 12 Volt Output Max. Current | 20 mA |
| Temperature Range | 5°C to 35°C |
| Humidity Range | 5% to 95% R.H. Non-condensing |
| Power Strip Dimensions (H x W x D) | 1.5" (38.1 mm) x 1.625" (41.275 mm) x 62" (1574.8 mm) |
| Dimensions (H x W x D) | 5.66” (143.764 mm) x 4.95” (125.73 mm) x 9.50” (241.3 mm) |
| Power Strip Weight | 4.8 lbs (121.92 kg) |
| Weight | 8.5 lbs (3.854 kg) |
