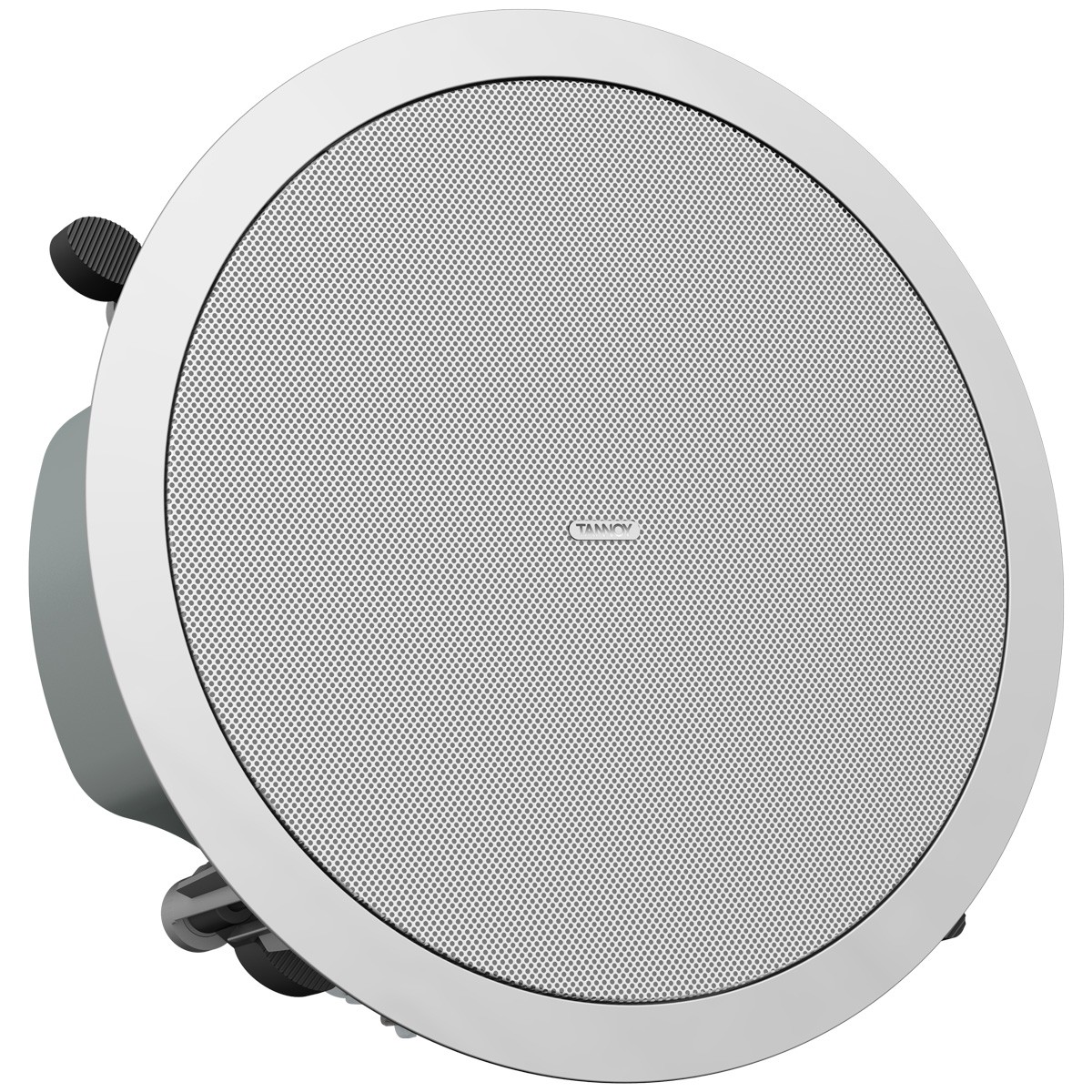

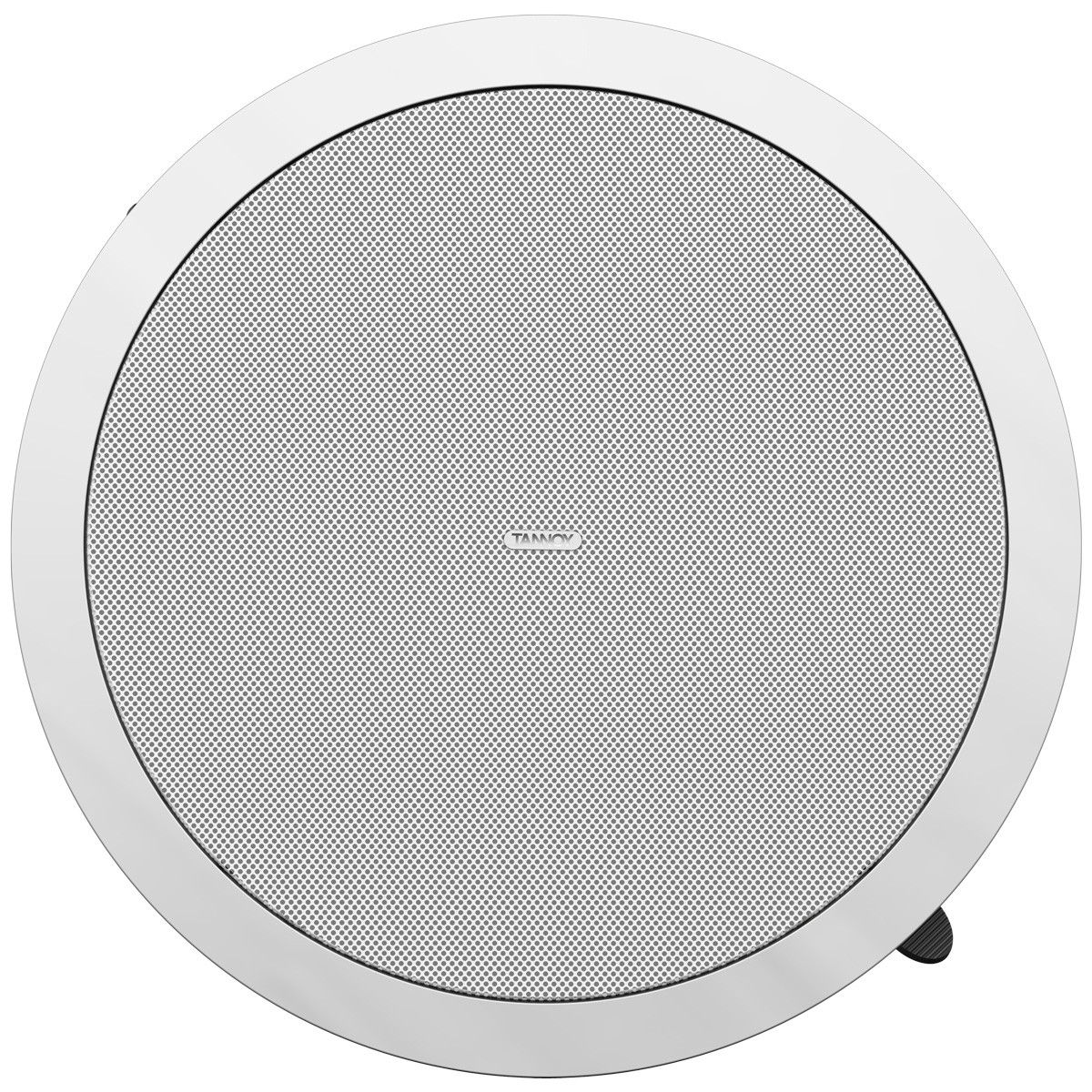

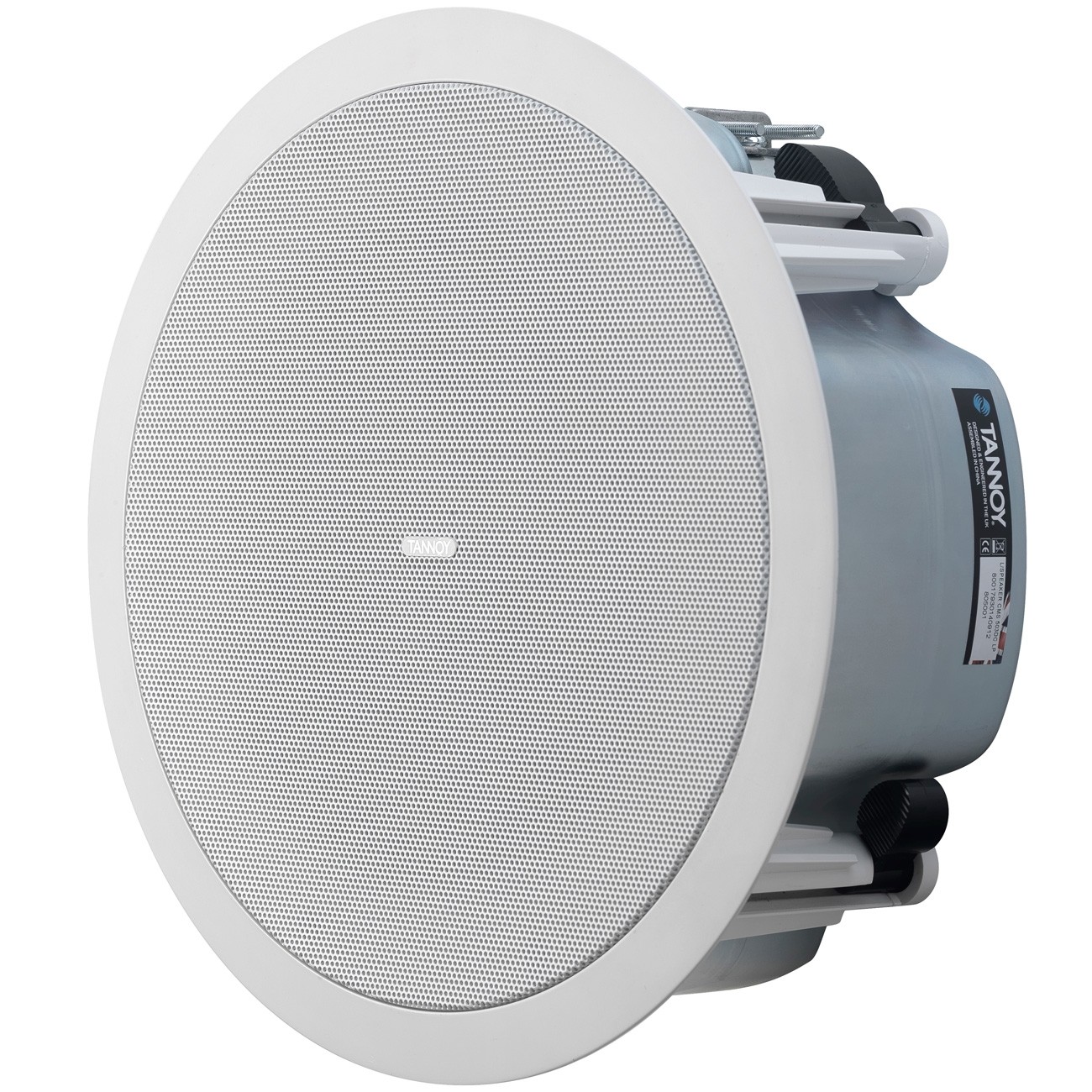

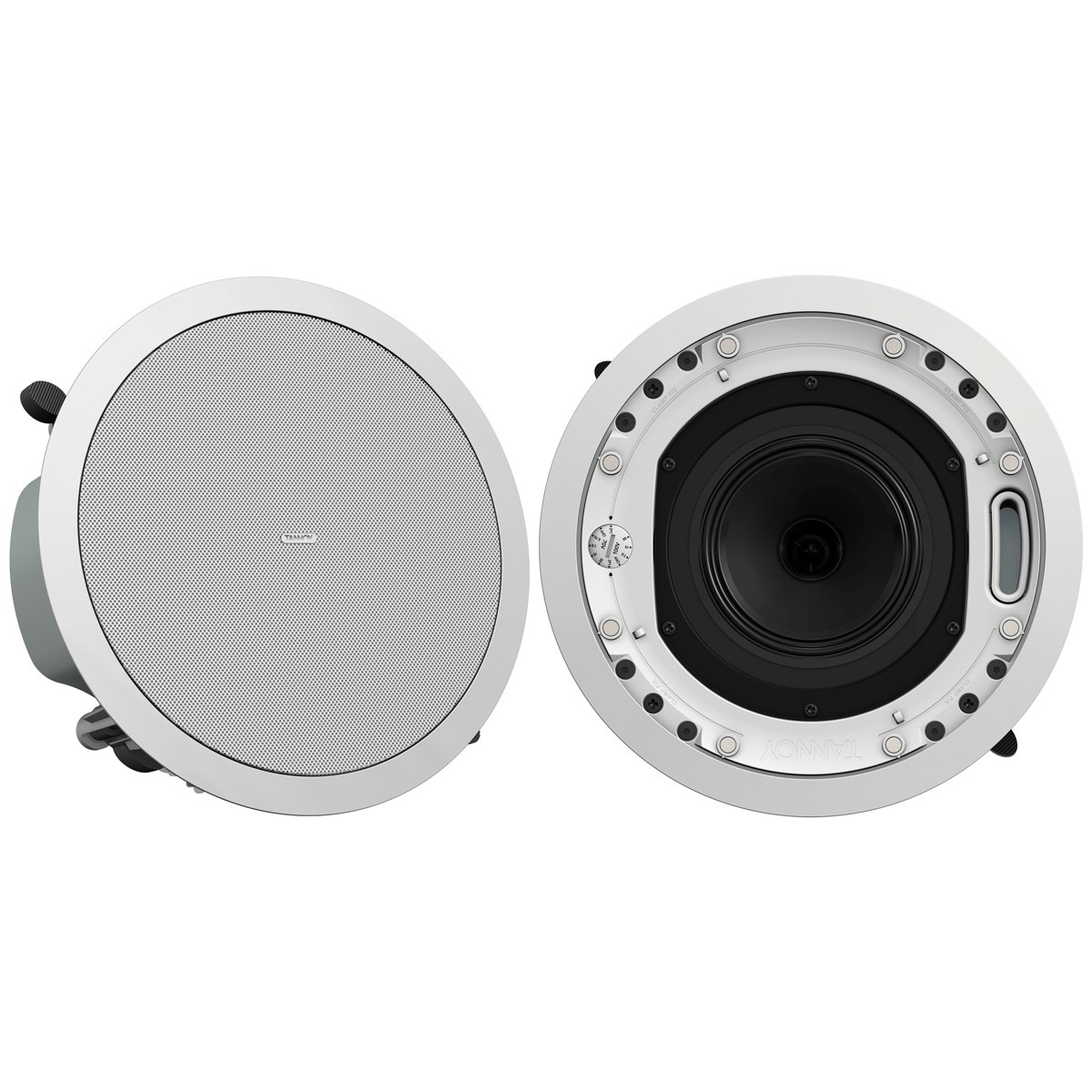

The CMS 503DC LP is a full bandwidth 240-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
Optimised for Installation
Specifically designed with a 4-way self-aligning clamp system for fast, simple and cost-effective installation, CMS 503DC LP features an ultra-shallow back can for applications where cavity space is limited, and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails, and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes, and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 503DC LP is finished in semi-matte white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
| Performance | |
|---|---|
| Frequency Response (-3 dB) | 88 Hz - 22 kHz |
| Frequency Range (-10 dB) | 77 Hz - 24 kHz |
| System Sensitivity (1 W @ 1 m) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 60W Program: 120W Peak: 240W |
| Recommended Amplifier Power | 120 W @ 16 Ohms |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Rated Maximum SPL | Average: 107 dB Peak: 113 dB |
| Transformer Taps (via Front Rotary Switch) | 70V: 30W (165 Ohms) / 15W (330 Ohms) / 7.5W (660 Ohms) / 3.75W (1320 Ohms) / OFF & low impedance operation 100V: 30W (330 Ohms) / 15W (660 Ohms) / 7.5W (1320 Ohms) / OFF & low impedance operation |
| Transducers | |

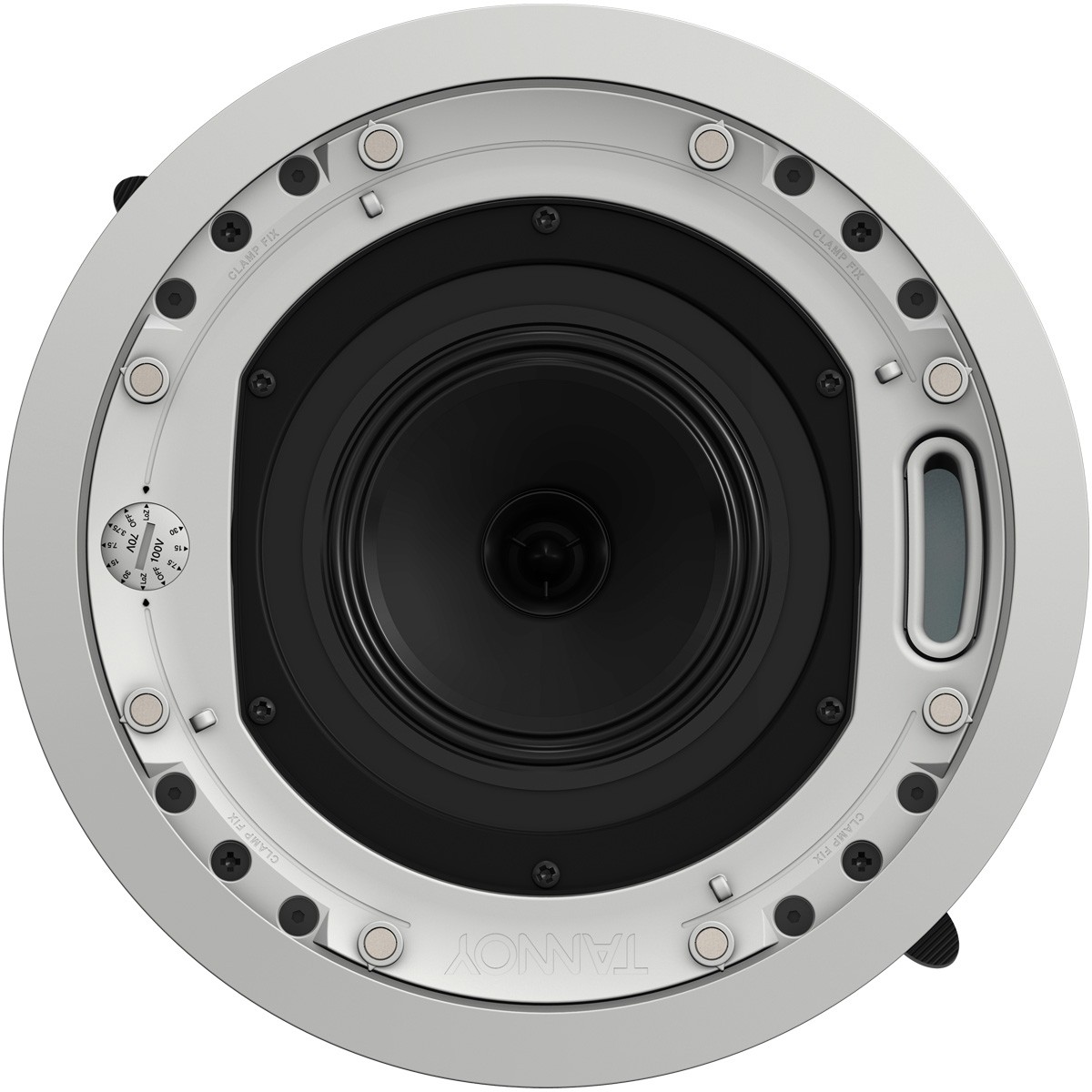

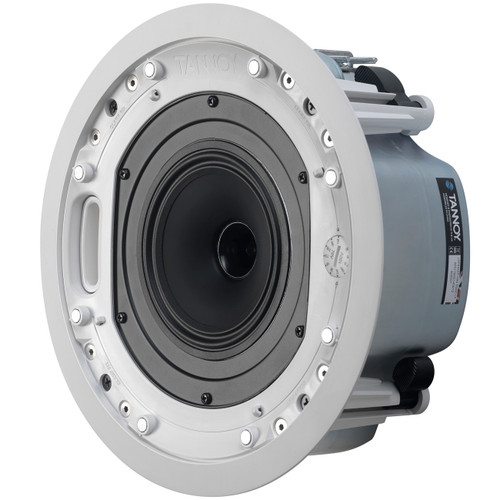

| Dual Concentric Point Source Driver | 1 x 5.0" (130 mm) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 1.38" (35 mm) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 0.79" (20 mm) PEI dome |
| Physical | |
| Enclosure | Backcan: Zinc plated steel Baffle: UL 94 V-0 rated ABS Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp. Min / Max clamping range 0.37" ( 9.5 mm ) / 2.36" ( 60 mm ) Recommended clamp torque: 1.5 Nm |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Compliance | UL-1480, UL-2043, CE |
| Dimensions | |
| Hole Cutout Diameter | 9.96" (253.0 mm) |
| Bezel Diameter | 10.79" (274 mm) |
| Front of Ceiling to Rear of Backcan | 3.88" (98.6 mm) |
| Weight | 20.16 lbs (9.14 kg) |
| Shipping Weight | 24.56 lbs (11.14 kg) |
