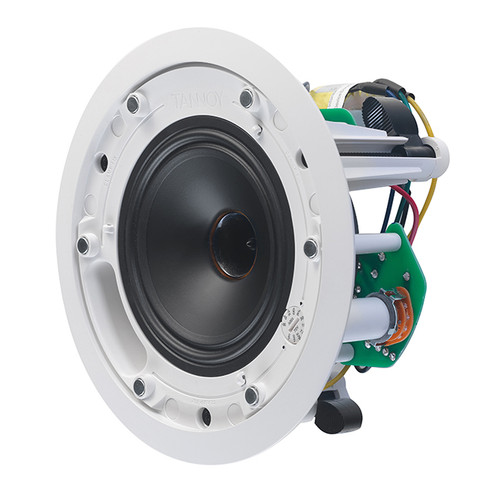

Based on an all-new evolution of Tannoy's proprietary Dual Concentric point-source driver, the CMS 503DC PI has been fundamentally re-engineered to deliver wider and more consistent broadband directivity, even greater intelligibility, and a more accurate and linear response.
The new Dual Concentric driver design features revolutionary Omnimagnet™ technology and unique patent-pending Torus Ogive Waveguide™ device, together providing more consistent and controlled directivity along with improved high frequency response. Improved time-alignment and greater coherence between LF and HF results in a wider sweet spot for enhanced performance both onand off-axis. The re-designed baffle provides a subtle extension to the waveguide effect for additional sonic benefits.

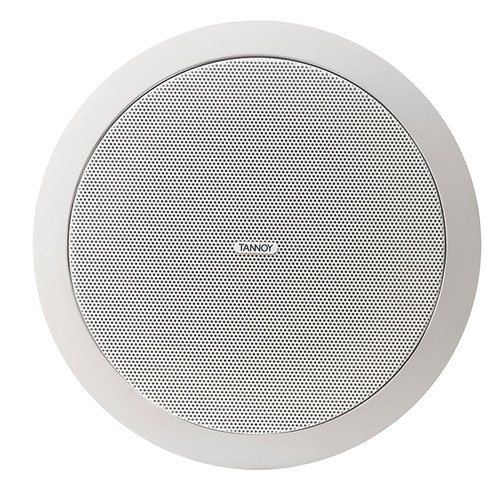

The CMS 503DC PI also features extra clamp extension to accommodate thicker ceiling panels, and a locking design that prevents inadvertent over-screwing. Magnetic grille attachment enables easy removal and fitting for custom painting and tapping changes with grilles now available as either traditional style (inset in bezel) or new Arco™ style which conceals the entire unit for more architect friendly aesthetic appeal.
The CMS 503DC PI utilizes a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). A low-insertion loss 30 W transformer is included, with convenient front bezel switching for taps at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for traditional constant voltage systems.
The CMS 503DC PI is supplied without a back-can. All models are supplied with classic grille, two tile support rails and one C-ring; Arco grille back-can and plaster (mud) ring are available as optional accessories.
| Performance | |
|---|---|
| Transformer Taps (via front rotary switch) | 70 V: 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / 3.75 W (1320 Ohms) / OFF & low impedance operation 100 V: 30 W (330 Ohms) / 15 W (660 Ohms) / 7.5 W (1320 Ohms) / OFF & low impedance operation |
| Rated Maximum SPL | Average: 107 dB Peak: 113 dB |
| Nominal Impedance (Lo, Z) | 16 Ohms |
| Recommended Amplifier Power | 120 W @ 16 Ohms |
| Frequency Range (-10 dB) | 74 Hz - 54 kHz |
| System Sensitivity (1 W @ 1 m) | 89 dB (1 W = 4 V for 16 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Power Handling | Average: 60 W Programme: 120 W Peak: 240 W |
| Transducers | |
| Dual Concentric point source driver | 1 x 5.0" (130 mm) Dual Concentric driver, using Omnimagnet technology |
| Low Frequency | 1.38" (35 mm) voice coil, treated multi fiber paper pulp cone |
| High Frequency | 0.79" (20 mm) PEI dome |
| Physical | |
| Enclosure | Baffle: UL 94 V-0 rated ABS Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp. Min / Max clamping range 0.37" ( 9.5 mm ) / 2.36" ( 60 mm ) Recommended clamp torque: 1.5 Nm |
| Backcan Options | Separate backcan for pre-installation |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22 mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Compliance | UL-1480, UL-2043, CE |
| Dimensions | |
| Bezel Diameter | 8.11" (205.9 mm) |
| Front of ceiling surface to rear of speaker unit | 5.25" (133.3 mm) |
| Front of ceiling to top of safety loop | 6.04" (153 mm) |
| Hole cutout diameter (all models) | 7.48" (190 mm) |
| Weights | |
| Weight | 13.66 lbs (6.2 kg) |
| Shipping Weight | 18.74 lbs (8.5 kg) |
