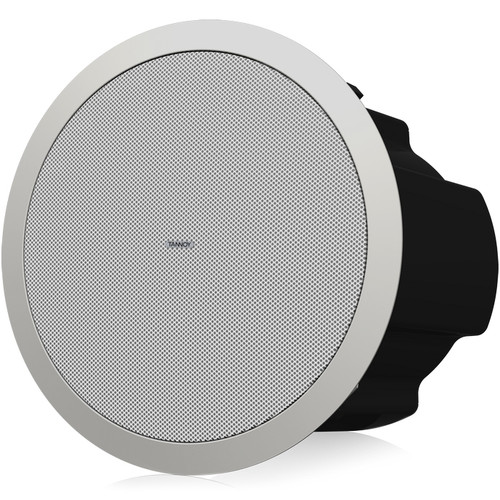

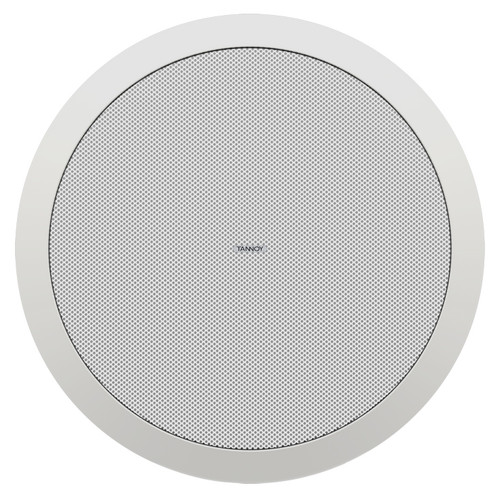

Tannoy CVS6 6" Coaxial In-Ceiling Loudspeaker for Installation Applications - 240 Watt
The Tannoy CVS 6 is a compact 240-Watt ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 6 offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding.
Exceptional Sound and Reliability
The design comprises a 150 mm (6.00") mid-bass driver with a coaxial 19 mm (0.75") high-frequency section mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. This compact unit is specifically designed for applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.
Comprehensive Installation Package
Supplied with integral zinc-plated steel back can, with recessed termination box, the CVS 6 satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
| System | |
|---|---|
| Frequency Response (-3dB) | 79Hz - 21kHz |
| Frequency Range (-10dB) | 60Hz - 24kHz |
| System Sensitivity (1W @1m) | 91dB (1W = 2.45V for 6 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1kHz to 6kHz) | 93 degrees conical |
| Directivity Factor (Q) | 7.7 averaged 1kHz to 6kHz |
| Directivity Index (DI) | 8 averaged 1kHz to 6kHz |
| Rated Maximum SPL | 109dB (average) 115dB (peak) |
| Power Handling | Average: 60W Program: 120W Peak: 240W |
| Recommended Amplifier Power | 120W @ 6 Ohms |
| Nominal Impedance | 6 Ohms |
| Transformer Taps (via front rotary switch) | 70V: 60W / 30W / 15W / 7.5W / OFF & Low Impedance operation 100V: 60W / 30W / 15W / OFF & Low Impedance operation |
| Crossover | 2.5kHz |
| Distortion | |
| 10% Full Power | 2nd Harmonic 250 Hz: 0.439%, 1 kHz: 0.396%, 10 kHz: 0.235% 3rd Harmonic 250 Hz: 0.140%, 1 kHz: 0.458%, 10 kHz: 0.023% |
| 1% Full Power | 2nd Harmonic 250 Hz: 1.16%, 1 kHz: 1.014%, 10 kHz: 0.944% 3rd Harmonic 250 Hz: 0.214%, 1 kHz: 0.685%, 10 kHz: 0.047% |
| Transducers | |
| Low Frequency | 6" (150 mm) mineral loaded cone |
| High Frequency | 0.75" (19 mm) coaxially mounted |
| Physical | |
| Enclosure | Backcan: Zinc plated steel Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp Min / Max Clamping Range: 0.0mm (0.0") / 20.0mm (0.79") Recommended Clamp Torque: 1.5Nm |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Safety Agency Ratings | UL-1480, UL-2043, CE |
| Included Accessories | C Ring, tile bridge, paint mask, cutout template, grille |
| Optional Accessories | Plaster (mud) ring |
| Dimensions | |
| Hole Cutout Diameter | 9.84" (250 mm) |
| Bezel Diameter | 11.01" (279.5 mm) |
| Front of Ceiling to Rear of Back Can | 9.70" (246.5 mm) |
| Front of Ceiling to Top of Safety Loop | 10.18" (258.5 mm) |
| Weight | |
| Net Weight | 14.3 lbs (6.5 kg) |
| Shipping Weight (Pair) | 33.07 lbs (15 kg) |
