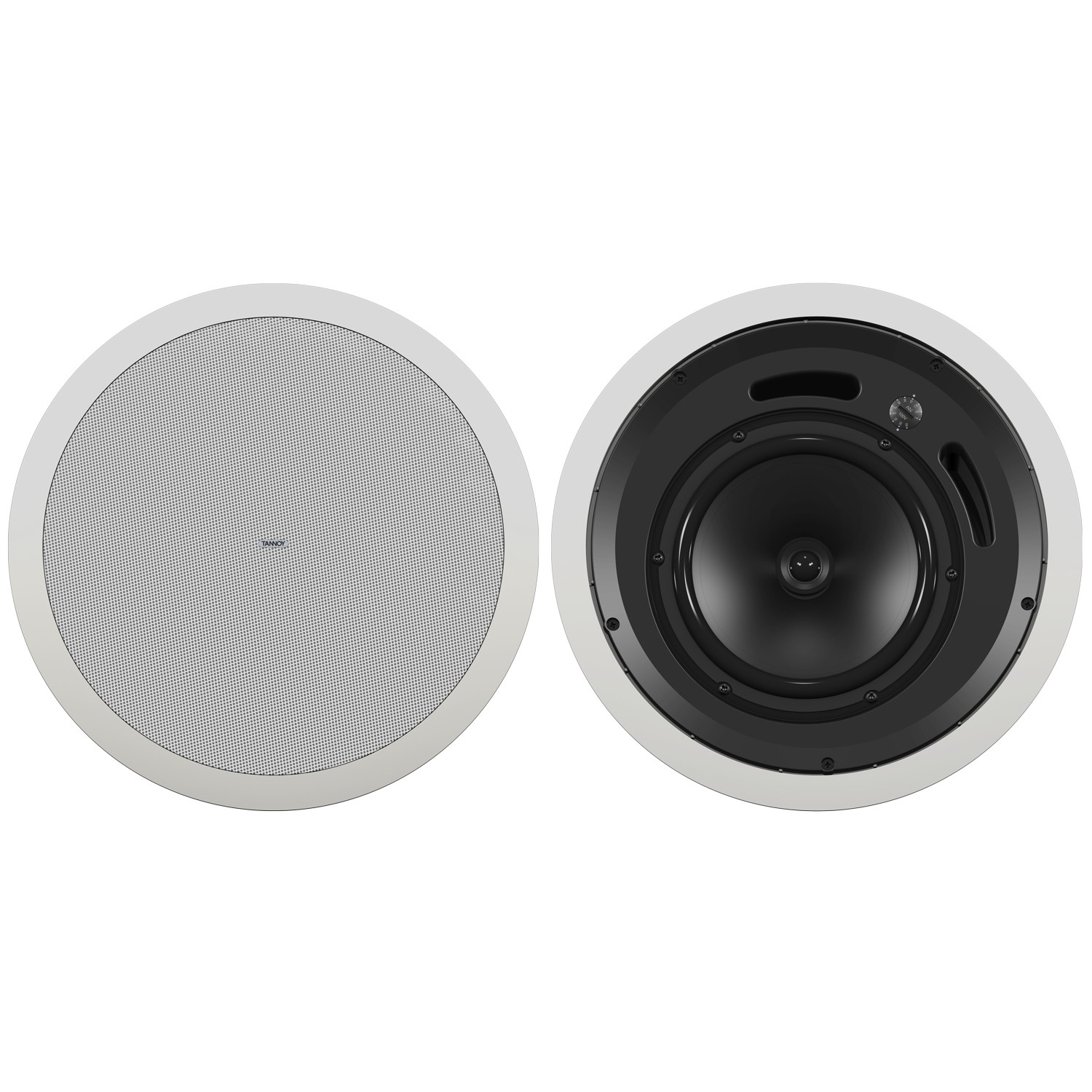

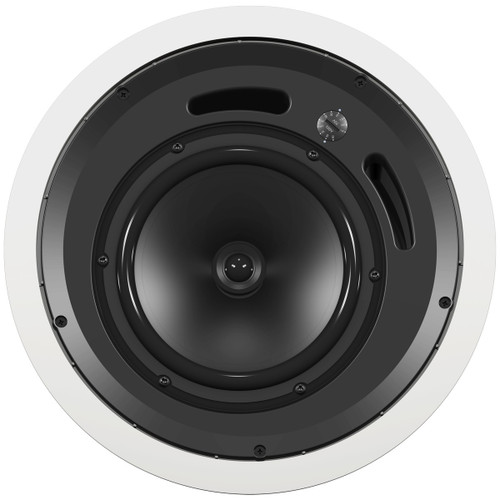

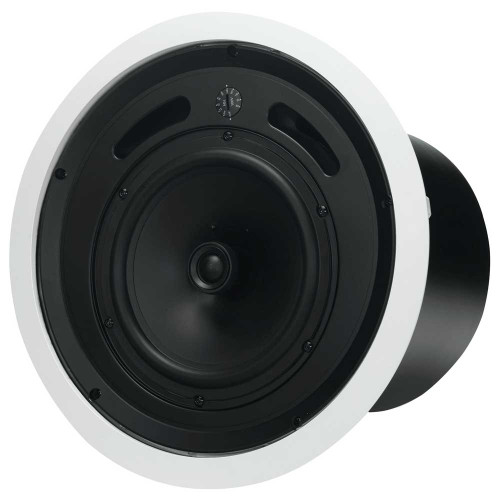

The Tannoy CVS 8 is a full bandwidth large-format in-ceiling speaker system of class-leading performance and exceptional value. The design comprises of 200 mm (8.00”) mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The new device is currently pending UL Listed status (UL-1480 and UL-2043).
The mineral loaded polypropylene cone material and nitrile rubber surround provide durability and long-term reliability, minimising system maintenance costs and future disruption to any facility. This compact unit is specifically designed for applications requiring the combination of music and speech reinforcement at higher SPLs with consistent functionality and full bandwidth sound quality. Typical applications include shopping malls, large conference facilities, hotel lobbies and ballrooms, and larger bars and high-end restaurants where higher BGM specifications are often specified and demanded.
The CVS 8 is equipped with a low insertion loss 60W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
70 V systems: 60W / 30W / 15W / 7.5W / OFF & low Impedance operation
100 V systems: 60W / 30W / 15W / OFF & low Impedance operation

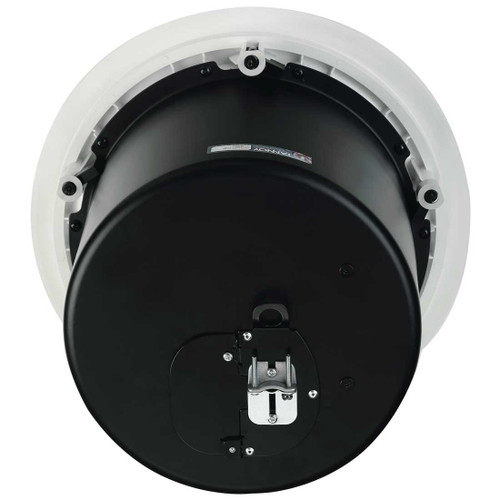

The CVS 8 is supplied with an integral painted steel back can, with recessed termination box, to satisfy the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and “loop through” facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
| Performance | |
|---|---|
| Frequency Response (-3dB) | 79Hz – 21Hz |
| Frequency Range (-10dB) | 60Hz – 24Hz |
| System Sensitivity (1W @ 1m) | 93dB (1W = 2.45V for 6 Ohms) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1kHz to 6kHz) | 84 degrees conical |
| Directivity Factor (Q) | 14.7 averaged 1kHz to 6kHz |
| Directivity Index (DI) | 11.7 averaged 1kHz to 6kHz |
| Rated Maximum SPL | Average: 111dB Peak: 117dB |
| Power Handling | Average: 60W Program: 120W Peak: 240W |
| Recommended Amplifier Power | 120W @ 6 ohms |
| Nominal Impedance | 6 ohms |
| Transformer Taps (via front rotary switch) | 70V: 60W / 30W / 15W / 7.5W / OFF 100V: 60W / 30W / 15W / OFF & Low Impedance operation |
| Distortion | |
| 10% Full Power | 2nd Harmonic: 250Hz:1.10%,1kHz: 0.55%, 10kHz: 0.52% 3rd Harmonic: 250Hz: 0.78%,1kHz: 0.70%, 10kHz: 0.03% |
| 1% Full Power | 2nd Harmonic: 250Hz:0.33%,1kHz: 0.15%, 10kHz: 0.12% 3rd Harmonic: 250Hz:0.25%,1kHz: 0.63%, 10kHz: 0.03% |
| Transducers | |
| Low Frequency | 8.00" (200 mm) mineral loaded cone material |
| High Frequency | 0.75" (19 mm) |
| Physical | |
| Enclosure | Backcan: Zinc Plated Steel Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating |
| Safety Features | Safety ring located at rear of enclosure for load bearing safety bond |
| Clamping Design | Security toggle clamp Min / Max Clamping Range: 0.0" (0.0mm) / 0.79" (20.0mm) Recommended Clamp Torque: 1.5Nm |
| Cable Entry Options | Cable clamp & squeeze connector for conduit up to 22mm |
| Connectors | Removable locking connector with screw terminals with "loop through" facility |
| Safety Agency Ratings | UL-1480, UL-2043, CE |
| Dimensions | |
| Hole Cutout Diameter | 12.6" (320 mm) |
| Bezel Diameter | 14" (355.6 mm) |
| Front of Ceiling to Rear of Backcan | 9.88" (251 mm) |
| Front of Ceiling to Top of Safety Loop | 10.39" (264 mm) |
| Weight | |
| Net Weight | 11.68 lbs (5.3 kg) |
| Shipping Weight | 33.08 lbs (15 kg) |
