Designed for a wide variety of discrete small and medium scale sound reinforcement applications, the Tannoy DVS 6 is an ultra-compact surface-mount loudspeaker of exceptional value and acoustic performance.

Description

A full bandwidth loudspeaker designed for commercial, professional and residential applications where environmental durability and high-quality sound reproduction are required. For both indoor and limited outdoor use, these speakers are ideally suited to stereo or monaural background or foreground music systems in such applications as diverse as theme park attractions, retail premises, restaurants and cafes, hotel lobbies and bars, corporate audio visual, residential developments and houses of worship.

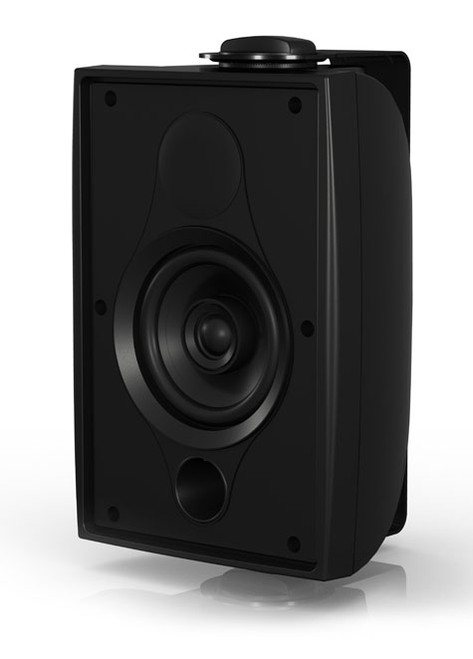

The DVS 6 is based around a point-source driver design comprising a 6” mid bass driver with a coaxially mounted 19mm (0.75”) high-frequency section mounted in a stylish injection molded surface-mount enclosure manufactured from UV/weather resistant ABS material. The new device is certified for water and dust ingress protection to IP64 standard and is currently pending UL Listed status (UL-1480 and UL-2043) making it a perfectly capable performer in challenging interior areas such as swimming pools, saunas or work areas where unusually high levels of dust or moisture may be present, as well as most outdoor applications where extreme environmental or harsh weather conditions are not a typical concern.

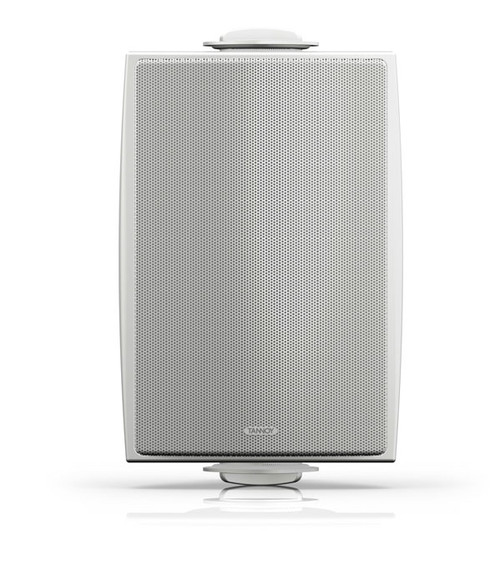

The highly durable and scuff resistant, high impact ABS enclosure is available in black or white painted finish and comes with integral mild steel grille designed with optimum aesthetic sensitivity in mind. A color-matched steel mounting bracket is included, which fits easily to the device via finger-tightened plastic screw-nut on the top and bottom of the enclosure, and audio connection is via standard euroblock making installation a quick and hassle-free affair.

Features

  • 150mm (6") coaxial transducer for high performance and durability
  • 90 degree controlled conical dispersion for optimum coverage
  • Exceptional performance to value ratio
  • Weather resistant rated IP64 to EN60529 (IEC529)
  • Stylish, durable ABS enclosure available in black or white
  • Phase coherent design for superior vocal articulation and music reproduction
  • No crossover required, ensuring better phase, impedance and sensitivity response and increased durability
  • Painted steel yoke bracket supplied

Specifications

Frequency Response (-3dB) 80Hz – 20Hz
Frequency Range (-10dB) 65Hz – 30Hz
System Sensitivity (1W @ 1m) 88dB
Dispersion 90°
Transducers Coaxial Low Frequency: 165 mm (6.5") mineral loaded cone material; High Frequency: 20mm (0.79")
Crossover 4.3kHz - 2nd order LF, 2nd order HF
Directivity Factor (Q) 10.6 averaged 1kHz to 10kHz
Directivity Index (DI) 9.6 averaged 1kHz to 10kHz
Rated Maximum SPL Average: 105dB Peak: 111dB
Power Handling Average: 60W; Programme: 120W; Peak: 240W
Recommended Amplifier Power 120W @ 6 Ohms
Nominal Impedance 6 Ohms
Distortion (10% Full Power (6.0V) 2nd Harmonic: 0.934%, 0.292%, 0.740%
3rd Harmonic: 0.316%, 0.560%, 0.050%
Distortion (1% Full Power (1.9V) 2nd Harmonic: 0.225%, 0.082%, 0.147%
3rd Harmonic: 0.326%, 0.363%, 0.066%
Enclosure ABS
Grille Steel, plated and painted
Connectors Euroblock type removable locking connector with screw terminals with "loop through" facility
Supplied Accessories Yoke bracket
Dimensions (H x W x D) 13.41" x 8.36" x 8.52" (340.5 x 212.2 x 216.5mm)
Net Weight 6.83 lbs (3.1 kg)
Shipped Weight (Pair) 18.94 lbs (8.6 kg)
