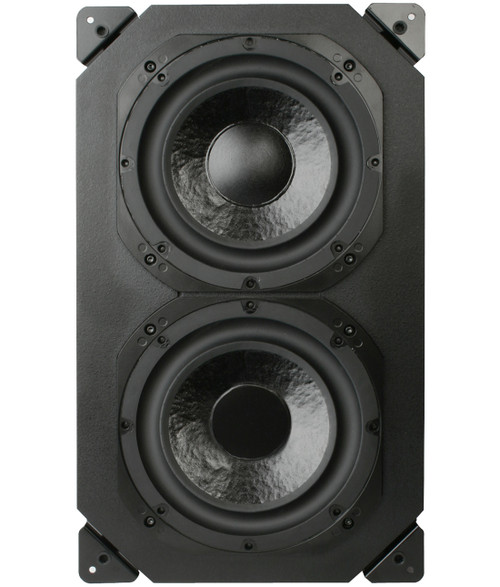

Tannoy iW210s Dual 10 inch In-Wall Subwoofer (Discontinued)

Part #:
8000 5350
Model #:
iW210s
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Tannoy Definition Install range is an outstanding line up of loudspeakers designed to satisfy a variety of installation applications encompassing home theatre, board rooms through to high end marine interiors.

Description

The direct radiating sub is capable of high output levels (118db peak), with tremendous dynamics and stunning bass response, while still being agile enough to maintain finer musical detail with precision and speed.

From media rooms to home theatre and boardrooms through to high end marine interiors, the iw210s sub delivers class leading accuracy, sensitivity and dynamics, providing a punchy bottom end to anymovie soundtrack or music application.

A unique isolation mounting system optimises low frequency performance by controlling unwanted resonances within the install structure. A mounting frame is available as an optional pre-installation accessory to fit into standard construction 2" x 4" stud walls.

Tannoy Definition Install range is an outstanding line up of loudspeakers designed to satisfy a variety of installation applications encompassing home theatre, board rooms through to high end marine interiors.

The range includes in-cabinet / behind-screen models as wellas high performance, fully enclosed in-wall speakers. All offer exceptionally high sensitivity (as high as 98dB 1 Watt @ 1 meter). Two substantial in-cabinet subwoofers complete the extremely capable Definition Install line up.

Features

  • 1 x 10" (250mm) bass driver
  • 1 x 10" (250mm) passive radiator
  • Recommended Amplifier power 250 - 500 watts @ 8 Ohms
  • Sensitivity 88dB (1W = 2.83V)
  • Unique isolation mounting system to control unwanted resonances within the install structure
  • Maximum SPL average 112dB
  • Grille and baffle can be painted to suit any décor
  • Natural, clean and accurate sound
  • Low frequency response down to 35Hz (at -3dB)
  • Spring loaded gold terminals

Specifications

Performance
Frequency Response (-3 dB) 35 Hz
Frequency Response (-10 dB) 28 Hz
System Sensitivity (1W @1m) 88 dB (1W = 2.83V for 8O)
Power Handling Average: 250W, Programme: 500W, Peak (10ms): 1000W
Recommended Amplifier Power 250 - 500W / 8O
Rated Maximum SPL 112 dB (average),118 dB (peak)
Nominal Impedance 8 Ohms
Driver Complement 1 x 10" (250 mm) Bass driver, 1 x 10" (250 mm) Passive radiator
Required Crossover Configuration Low-pass filter 80Hz - 250Hz, 24dB/octaveHigh-pass filter 32Hz, 24dB/octave
Distortion
10% Full Power (14.1V) 2nd Harmonic 40 Hz: 2.3%, 100 Hz: 1.7%
3rd Harmonic 40 Hz: 3.4%, 100 Hz: 1.4%
1% Full Power (4.5V) 2nd Harmonic 40 Hz: 2.8%, 100 Hz: 2.3%
3rd Harmonic 40 Hz: 1.0%, 100 Hz: 1.0%
Construction
Finish Black paint
Accessories Installation kit required (not included)
Enclosure 11.5 litre, internally braced plywood enclosure
Connectors Gold plated spring terminals
Dimensions (H x W x D) 23.23" (590 mm) x 13.58" (345 mm) x 3.70" (94 mm)
Net Weight 20.9 lbs (9.5 kg)
Shipping Weight 30.8 lbs (14 kg)
