Tannoy VNET SC 1 Network Enabled Digital Controller (Discontinued)

A powerful 2-in 6-out digital system controller, the VNET SC1 combines the functions of multiple conventional processing products into one compact 1U of rack space. Using DSP-based digital crossovers with 96 kHz sampling rates this versatile, feature packed unit will enable simple configuration and optimization of loudspeakers for superior audio quality within a fixed installation or touring situation.

This VNET SC1 features crossover, EQ, delay and limiting functions, and is also equipped with two network ports allowing connection to any networked system using any number and combination of the other products in the VNET™ range.

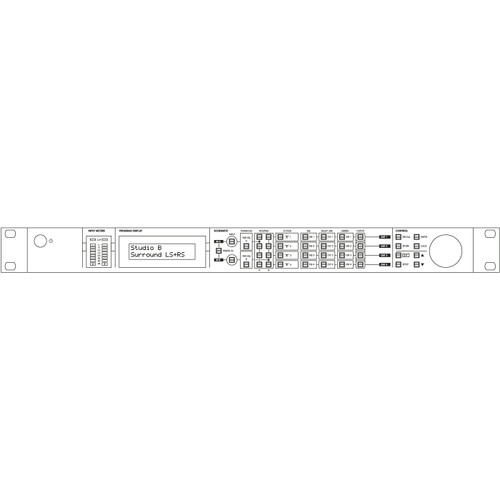

Set up of the unit is exceptionally simple thanks to the intuitive signal flow based interface, with programmed settings clearly displayed on the 2 x 16 character back light LCD. The function buttons and input level meters are also backlit; allowing ease of use even in subdued lighting conditions.

Each input on the network enabled VNET SC1 has gain control and 4 bands of parametric EQ with bands 1 and 4 offering settings for LF and HF shelving response. The unique routing engine will allow any input to be sent to any output. Butterworth, Bessel and Linkwitz Riley type filters are available on all outputs which can be configured as 2, 3 or 4-way crossovers. All output channels feature an independent speaker alignment delay (200 ms per channel) and a 4 band parametric EQ for speaker management. Four high performance limiters offer a wide range of control over Attack, Release and Threshold parameters.

The VNET SC1 it can be linked via its RS232 connector to a laptop computer or other PC and controlled using VNET™ software to provide improved access to the configuration functionality via simple on-screen graphics. The two input and six output connections are via balanced XLR sockets.

• Two balanced XLR analogue inputs and six balanced XLR analogue outputs
• Simple configuration and optimisation of loudspeakers in terms of speaker management and room EQ functionality
• Intuitive signal flow based interface and 2 x 24 character backlit LCD
• Unique routing engine allows any input to be sent to any output
• Butterworth, Bessel, Linkwitz Riley and Hardman type filters are available on all outputs
• Input and output gain is adjustable in 0.2dB steps from - 40dB to +15dB
• Input delay adjustable in variable steps from 0 to 400ms, while output delay is adjustable to 80ms
• Automatically calculated attack and release constants dependant on frequency
• RS232 connector enables connection to a laptop computer or other PC for enhanced control functions using VNET™ software
• Automatically adapting universal switch mode power supply - 85 to 240 volts
• Two XLR network link ports allow the network-enabled version SC1 to combine any VNET™ system with any other loudspeaker system
