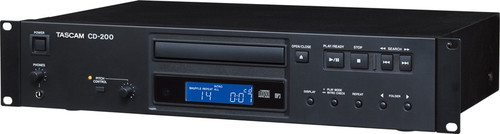

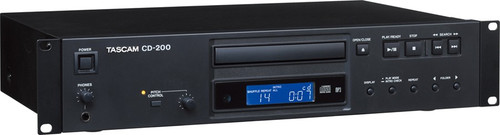

Tascam CD-200 Rack Mount CD Player (Discontinued)

Description

Details

TASCAM's best-selling CD-160 CD player has been updated to the CD-200. This CD player uses a brand new transport, the TEAC CD-5020A. The new transport is custom designed for audio playback with a smooth loading drawer and low clamping noise. The internal clock has been improved for a smoother sound and decreased jitter.

Like the CD-160, the CD-200 has unbalanced phono outputs and S/PDIF digital out on coaxial and optical jacks. MP3 and WAV file playback is supported, and front-panel Folder navigation buttons are provided. A wireless remote control with numerical track select buttons is also included.

Features

Features

Plays audio CDs, MP3 CDs and WAV file CDs
CD TEXT and ID3 tag support
Continue, Random and Program play modes
Repeat All and Repeat Single play modes
Index Search
Shock/skip prevention memory buffer
±12% pitch control (analog outputs only)
RCA unbalanced line outputs
RCA and Optical S/PDIF digital out
1/4" stereo headphone output
2u rack mountable
Wireless 55-key remote control

Specification

Compatible Disc Formats	CD-DA (12-cm/8-cm), CD-ROM (12-cm/8-cm) ISO 9660 LEVEL 1/2/ROMEO/JOLIET format (CD-R/CD-RW DISC compatible)
MP3 Playback
Audio Mode	Stereo/Joint Stereo/Dual Channel/Mono/VBR
Sampling Frequency	32 kHz / 44.1 kHz / 48 kHz
Bit Rate	32 kbps - 320 kbps
WAV Playback
Sampling Frequency	8 kHz / 11.025 kHz / 12 kHz / 16 kHz / 22.05 kHz / 24 kHz / 32 kHz / 44.1 kHz / 48 kHz
Sampling Bit Rate	8 bit/16 bit
Audio CD Playback
Sampling Frequency	44.1 kHz
Sampling Bit Rate	16 bit
Number of Channels	2
Audio Performance
Frequency Response	20 Hz - 20 kHz ±1.5 dB
Signal-to-Noise Ratio (S/N)	More than 90 dB (20 kHz LPF + A-weighted)
Distortion (THD + N)	Less than 0.01% (1 kHz: 20 kHz LPF)
Dynamic Range	90 dB min.
Channel Separation	90 dB min. (1 kHz: 1 kHz BPF)
Analog Output [Unbalanced] Terminal
Connector	RCA pin jack
Reference Output Level	–10 dBV
Maximum Output Level	+6 dBV
Output Impedance	200Ω
Phones Jack
Connector	Standard Stereo Jack
Rated Output	20 mW + 20 mW min. ÉFV (When monitoring CD, THD + N 0.1% max., 32Ω load)
Digital Output [Coaxial] Terminal
Connector	RCA Pin Jack
Compatible Signal Format	IEC-60958-3 (S/PDIF)
Output Impedance	75Ω
Digital Output [Optical] Terminal
Connector	Optical Jack
Compatible Signal Format	IEC-60958-3 (S/PDIF)
Power Requirement	AC 120 V, 60 Hz
Power Consumption	11 W
Operating Temperature	5 to 35°C
Inclination of Installation	5° or less
Dimensions (H x W x D)	3.72" (94.5 mm) x 18.94" (481 mm) x 11.73" (298 mm)
Weight	9.26 lbs (4.2 kg)
