Tascam CD-200iL Professional Single CD Player with iOS Dock (Discontinued)

Tascam CD-200iL Professional Single CD Player with iOS Dock (Discontinued)

Name: Tascam CD-200iL Professional Single CD Player with iOS Dock (Discontinued)
Brand: Tascam
SKU: TASCAM-CD-200iL
Price: 429.99 USD
Availability: OutOfStock

Write a Review

Part #:

CD-200iL

Model #:

CD-200iL

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

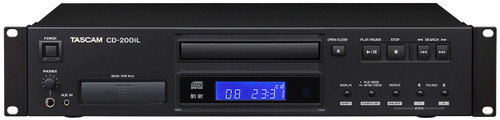

The CD-200iL is built with a retractable iPod dock on the front of the player and allows you to easily attach iPods or iPhones with the 30-pin dock or Lightning connector.

Description

The Tascam CD-200iL Professional Single CD Player with iOS Dock is built with a retractable iPod dock on the front of the player. You can attach iPods or iPhones with the 30-pin dock or Lightning connector. With this new dual connector dock, the CD-200iL is compatible with any iPod or iPhone device making it ideal for users with varying iOS Devices

To help improve audio quality, the lower-grade digital to analog converters of the iOS device in-use are bypassed by the digital connection of the CD-200iL. It is also possible to vary playback speeds when in use with a compatible iOS app. It is is designed with a stereo mini AUX IN connector on the front panel to allow compatibility with other non-Apple audio devices. It also has CD drives designed for audio by TEAC. By undertaking development ourselves and including our drives in the player.

Features

Built-in 30-pin and Lightning dock connector for audio output, transport control, and charging
iPod control is capable through the transport; album skip, repeat switch, and playback mode switch
High Quality CD drive designed for audio by TEAC
10-second shockproof memory prevents skipping from vibrations and other causes
CD drive supports playback of CD-DA and data CD
Supports CD text and ID3 tags allowing text information such as artist name and album names
Three playback modes (continuous, shuffle and program)
Repeat playback
Folder playback function that allows limiting to only specified folders
Possible to skip playback folders
Folder repeat playback
Switch between display of track elapsed time, track and disc remaining time
+/-14% pitch control function
Intro check function can be used to play the first 10 seconds of songs in order
RCA analog outputs and COAXIAL/OPTICAL digital outputs
Stereo mini jack input on the front panel for connecting other portable audio devices
2U EIA rack-mount size
Wireless remote control with 10-key included
Headphone output
RoHS certified

Specifications

Compatible Disc Formats	CD-DA (12-cm/8-cm), CD-ROM (12-cm/8-cm) ISO 9660 LEVEL 1/2/ROMEO/JOLIET format CD-R/CD-RW DISC)
Playable Format	Audio CD (CD-DA), MPEG1 Audio Layer III (MP3) WAV
Audio Mode	STEREO/JOINT STEREO/DUAL CHANNEL/MONO
Sampling Frequency	32 kHz/44.1 kHz/48 kHz
Bit Rate	32 kbps - 320 kbps, and VBR
Sampling Frequency	8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz
Sampling Bit Rate	8 bit/16 bit
Audio CD Playback	Sampling Frequency: 44.1 kHzSampling Bit Rate: 16 bitNumber of Channels: 2
Connector	3.5 mm stereo mini jack
Reference Input Level	–16 dBV
Maximum Input Level	0 dBV
Input Impedance	22 kΩ
ANALOG OUTPUT (UNBALANCED) Terminal	Connector: RCA pin jackCD Ref Output Level: –10 dBVCD Max Output Level: +6 dBVOutput Imp: 200&
PHONES Jack	Connector: Standard Stereo JackMaximum Output Level: 20 mW + 20 mWLoad Impedance: 32Ω
DIGITAL OUTPUT (OPTICAL) Terminal	Connector: Optical JackCompatible Signal Format: IEC-60958 Type II (S/PDIF)
DIGITAL OUTPUT (COAXIAL) Terminal	Connector: RCA Pin JackCompatible Signal Format: IEC-60958 Type II (S/PDIF)
Video Output	Connector: RCA Pin JackCompatible Signal Format: Composite video signalOutput Impedance: 75Ω
S-VIDEO Output	Connector: 4-pin mini-DIN connectorCompatible Signal Format: Separate video signal
Frequency Response	20 Hz - 20 kHz ±1.5 dB
Signal-to-Noise Ratio (S/N)	More than 90 dB (20 kHz LPF + A-weighted)
Dynamic Range	More than 90 dB (20 kHz LPF + A-weighted)
Total Harmonic Distortion	Less than 0.01% (1 kHz, 20 kHz LPF)
Channel Separation	More than 90 dB (1 kHz, 1 kHz BPF)
Power Requirement	AC 120 V, 60 Hz
Operating Temperature	5 to 35°C
Inclination of Installation	5° or less
Power Consumption	12 W
Dimensions (H x W x D)	3.72" (94.5 mm) x 11.73" (298 mm) x 8.94" (481 mm)
Weight	10.36 lbs (4.7 kg)
