Tascam RC-HS20PD Remote Control for Solid-State Recorders

Home /
Tascam RC-HS20PD Remote Control for Solid-State Recorders (Discontinued)

Description

Details

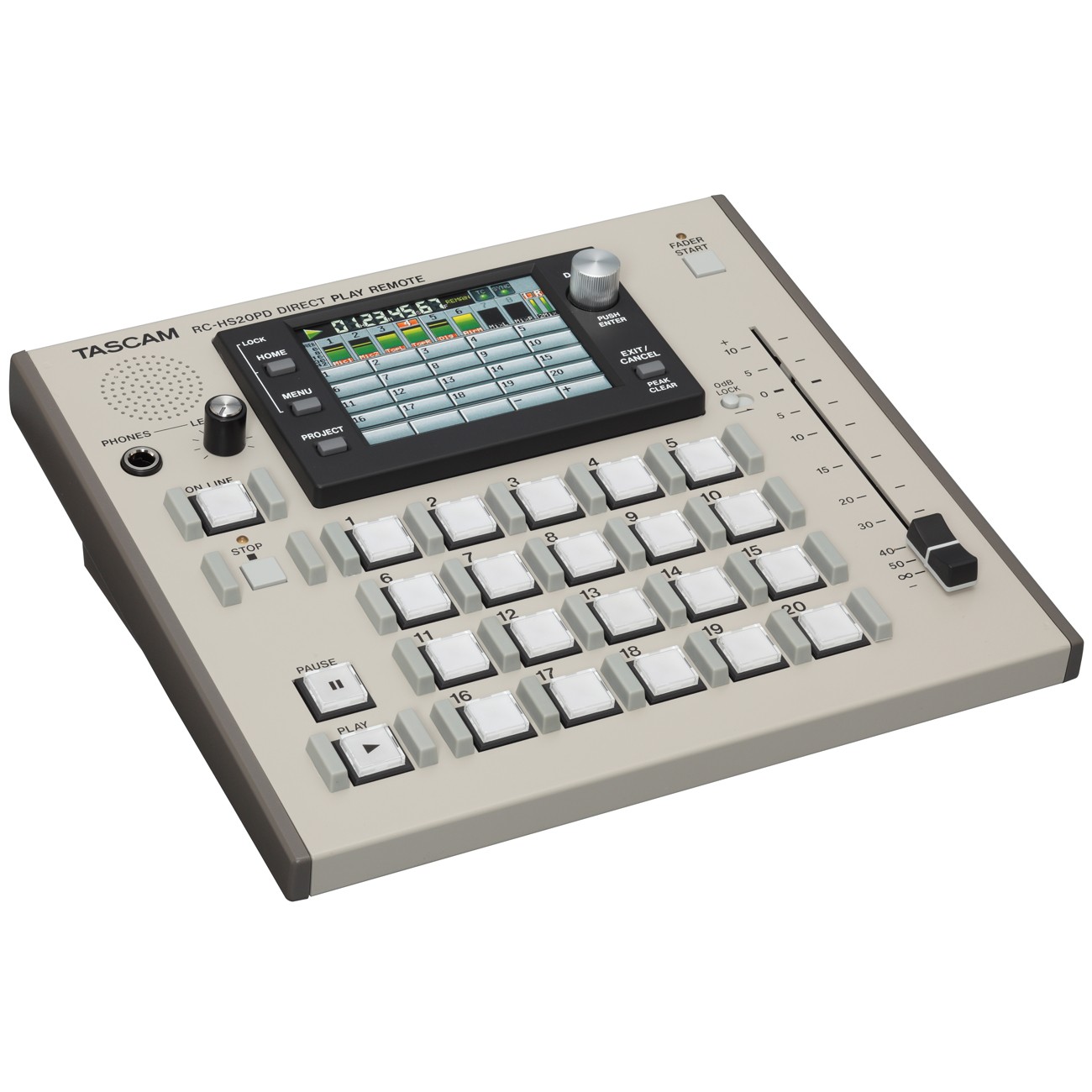

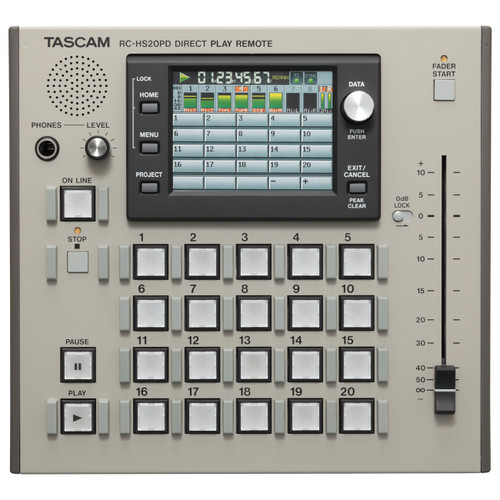

The TASCAM RC-HS20PD controls the HS-8 and HS-2 solid-state recorders. It offers flash start with (20) dedicated, illuminated buttons and further control through a color TFT touch screen interface - which can be used for the same operations as the display on the connected HS-8 or HS-2. Five pages of instantaneous playback start (flash start) are available for a total of 100 tracks. A 100mm fader includes fader start for broadcast use, and a 0dB lock is available for the fader. Also included are a monitor speaker and headphone output. The RC-HC20PD connects to the HS-2 and HS-8 with a supplied 5m CAT6 cable.

Features

Features

(20) illuminated flash start keys
Color TFT touch screen interface
Transport and Online buttons recessed to prevent accidental operation
100mm fader with fader start and 0dB lock
CAT6 connection to HS-2 and HS-8
Monitor speaker and headphone output for monitoring

Specification

Speaker (Mono)	Maximum output: 500 mW
PHONES Connector	Connector: 6.3 mm (1/4") standard stereo jack
Maximum Output	45 mW + 45 mW (THD+N 0.15% or less, into 32Ω)
Power Voltage	DC13V (provided by the main unit)
Power Consumption	160 mW or less
Operating Temperature Range	5–35ºC / 41–95ºF
Dimensions (H x W x D)	2.96" (75.1 mm) x 8.5" (216 mm) x 7.87" (200 mm)
Weight	3.09 lbs (1.4 kg)
