The A-9060DHM2 amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. Since it comes with two 60W power amplifiers, it can individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel.
- Features
Features
- Multiple Input Priority Modes sets priority order when multiple inputs with the same priority level and output assignment are broadcast
- Voice Operated (VOX) paging activation with adjustable threshold/sensitivity and gate release time
- Stereo Link – Mirrors all the settings of one channel to the adjacent channel, reducing redundant setup tasks for stereo signals
- Speaker Line Switching – select up to four speaker lines from a single amplifier output using optional model SS-9001 Speaker Selector and AD-246 Power Supply

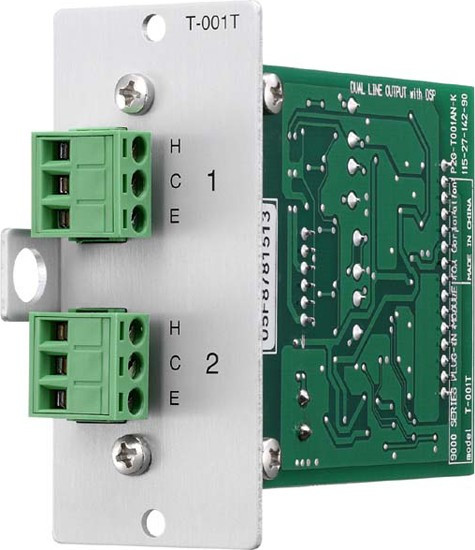

- Balanced Line Output(s) – expandable with T-001T dual line output modules
- Keylock Security sets password-protected access to prevent access to Input, Output, Utility and Power functions
- Alphanumeric Input/Output Channel and Memory Naming
- Two Remote Volume Control Terminals on mainframe
- Four Control Inputs – programmable to activate Paging/Scene Memory, Volume Up/Down (Input or Output), Mute (Input or Output), Power On/Off, Emergency Mute, Sync On/Off (expandable to twelve with C-001T module). Works with optional ZM-9003 or custom contact panel
- Four Control Outputs (open collector) programmable to activate external relays (expandable to twelve with C-001T module) synchronized with Event/Scene Memory, Channel On/Off (Input or Output) and Power On/Off
- Works with optional ZM-9003 or custom contact panel
- Specification
Output Power 2 x 60W @ 70V Audio Input Max. 8 ch, modular construction (modules optional)Power amplifier input 1, 2:0 dBV, 10k S, RCA jac Speaker output 1, 2 60W, 70.7 V line, 83 S x 2, BTL output, removable terminal block (4 pins) Power Bandwidth 20 - 20,000 Hz, 0.008% THD Frequency Response Specifications Power amplifier section 20 - 20,000 Hz, +0, -1 dB Analog input module to speaker output 20 - 20,000 Hz +1, -3 dB Total HarmonicDistortion Spacifications Power amplifier section 0.0008% (22 kHz LPF, 1 kHz,rated power) Analog input module to speaker output 0.008% (22 kHz LPF, 1 kHz, rated power) S/N Ratio (At input short, 20 - 20,000 Hz, ALL FLAT or OFF setting) Spacifications Output volume min. 90 dB (preamplifier output) Output volume max. 61 dB (preamplifier output, input 1 volume: 0 dB, other inputs: OFF) Power amplifier section 110 dB Crosstalk Over 64 dB at 20 kHz Tone Control Bass: +/-12 dB (at 100 Hz), Treble: +/-12 dB (at 10 kHz) Parametric EQ 10 bands, Freq: 20 ~ 20,000Hz, 31 steps, Various range: +/- 12 dB, Q: 0.3 - 5 Speaker Equalizer 15 (presets for TOA speakers) High-pass Filter -12 dB/oct, Variable frequency range: 20 - 400 Hz, 14 steps Low-pass Filter -12 dB/oct, Variable frequency range: 4,000 - 20,000 Hz, 8 steps Compressor Depth: 1 - 5 Delay 0 - 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2) (Mix mode only) Scene/Event Memory 32 Auxiliary Function Key lock function Control Input/Output (RS-232CC, D-sub connector (9P, female)) Specifications Control input 4 inputs, no-voltage make contact input, open voltage: 3.3V DC, short-circuit current: under 1 mA Control output 4 outputs, open collector output, withstand voltage: 27V DC, control current: 50 mA, removable Remote volume 2 channels, connect a 10k S/linear taper variable resister or 0 - 10 VDC, removable terminal block Power Source 120 V AC, 60 Hz Power Consumption 150W OperatingTemperature 14° to 104° F (-10° to 40° C) Operating Humidity 35% to 80% RH (no condensation) Finish Panel: aluminum, hair-line, black; Case: surface-treated steel plate, black paint Dimensions (H x W x D) 4.24" (107.6 mm) x 16.54" (420 mm) x 15.55" (395 mm) Weight (without modules) 19.84 lbs (9 kg) - Documents
