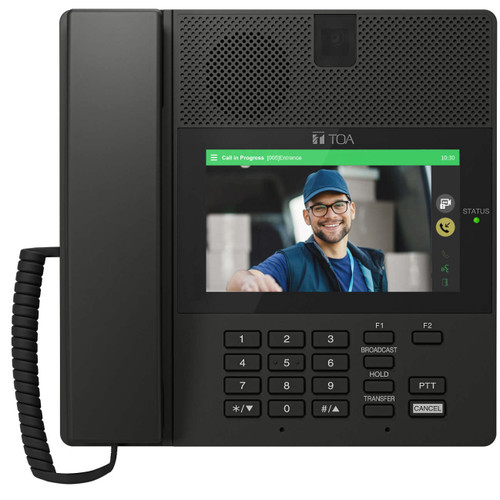

TOA CX-OP1700 5-Inch Touchscreen Full-Duplex Video Operation Station

The CX-OP1700 is a professional video operation station designed for the TOA CX-1000 series IP communication system. It enables full-duplex hands-free and handset video and voice conversations with other intercom stations, as well as broadcasts to audio interfaces and amplifier units. Its 5-inch touchscreen LCD and built-in HD camera allow intuitive operation and high-quality video communication, while the one-touch dialing function simplifies call setup.

Equipped with dual MEMS microphones, audio processing, and 3.5 mm headset jacks, the CX-OP1700 delivers clear voice pickup and versatile audio input/output options. It supports key audio and video codecs, including G.722 and H.264, and can display images from ONVIF Profile S-compatible IP cameras for integration with CCTV and network camera systems.

Designed for flexibility, the CX-OP1700 can be powered via PoE (IEEE802.3af) or 12V DC using an optional AC adapter. It supports desktop or wall mounting with the included angle-adjustment stand and optional wall bracket, making it ideal for conference rooms, control rooms, or commercial installations that require reliable video intercom communication.

Features

Features

5" Touchscreen LCD with intuitive operation keys
Full-duplex video and voice communication via handset and hands-free
Built-in HD camera with 69° horizontal viewing angle
ONVIF Profile S support for integration with IP cameras
Dual MEMS microphones with array processing for clear pickup
3.5 mm headset jacks for versatile audio input/output
Supports G.722 and H.264 codecs
2 Control inputs and 2 open collector outputs for external device integration
Desktop or wall mountable with an optional bracket
PoE (IEEE802.3af) or 12V DC power input

Specification

Power Source	PoE (IEEE802.3af) or 12V DC (optional AC adapter)
Current Consumption	PoE: 210 mA, 12V DC: 680 mA
Power Consumption	8.5W
Speech Method	Handset: Full-duplex, Hands-free: Full-duplex (echo canceler + voice switch), Half-duplex (PTT)
Frequency Response	Conversation: 300 Hz - 7 kHz, Broadcast: 300 Hz - 16 kHz
Hands-Free Speaker	Dynamic type, max output 2.0W
Microphone	Dual omni-directional digital MEMS mics
Headset	Speaker: Dynamic, 32 Ω, Ø3.5 mm; Mic: Electret condenser, Ø3.5 mm
Audio/Video Codecs	Audio: PCM, G.722, G.711 μ-Law/A-Law; Video: H.264, MJPEG
Video Resolution	HD 1280 x 720 (max), Frame rate: 20 fps (max)
Network	100Base-TX, TCP/IP, UDP, SIP, ONVIF Profile S Client, RJ45 x2
Control I/O	2 control inputs, 2 open collector outputs
User Interface	5" touch screen LCD, Dial key, Function keys, PTT, Broadcast, Hold, Transfer, Cancel
Indicators	Touch LCD, STATUS LED (yellow/red/green)
Installation	Desktop or wall mounting (optional bracket)
Dimensions (H x W x D)	3.2" (81.4 mm) x 7.87" (200 mm) x 7.87" (200 mm) (excluding cord)
Weight	2.07 lbs (0.91 kg)
