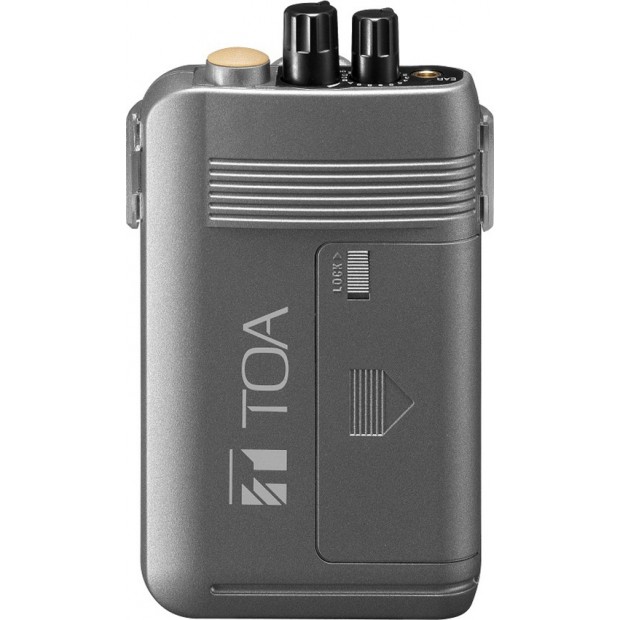

TOA WT-5100 Portable Receiver (Discontinued)

Description

Details

An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature or voltage fluctuation. When employed with the YP-E5000 Assist Earphone, improves audibility for hearing impaired users by raising the frequency response above the standard level.

Features

Features

Portable UHF tuner suitable for assisted listening
Tunable to any of 16 UHF channels
Compatible with 5000 Series transmitters
Commercial earphones can also be used (ø3.5 mm, impedance: over 16O)
WB-2000 rechargeable battery or single with optional chargers
AA battery operation for compact and lightweight body
Built-in antenna

Specification

Product Type	Portable UHF Tuner
Power Source	1.5 V DC (Battery)
Receiving Frequencies	576 - 865 MHz (*1), UHF
Channel Selectable	16 selectable frequencies
Receiving System	Double super-heterodyne
Receiving Sensitivity	Better than 60 dB Signal to Noise ratio (20 dBμV input, ±40 kHz deviation)
Frequency Response	200 Hz - 5 kHz (Portable transmitter to Potable receiver)
De-emphasis	50 μs
Output Level	4 mW (16 Ω load, 10 % distortion)
Battery	WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery or LR6/AA alkaline dry cell battery
Battery Life	16 hours (when the WB-2000 rechargeable battery is used)15 hours (when the alkaline battery is used
Operation Temperature	-10℃ to +50℃ (14゜F to 122゜F) (except battery)
Operating Humidity	30 % to 85 %RH (no condensation)
Accessory	Neck strap…1
Finish	Resin, dark silver
Dimensions (H x W x D)	6.45" (163.6 mm) × 2.44" (62 mm) × 1.28" (32.5 mm)
Weight	0.28 lbs (125 g) (battery included)
