TOA ZM-9003 Remote Panel (Discontinued)

Description

Details

The ZM-9003 is a remote control switch panel with 4 interlocking selection switches and 2 momentary switches. Connecting it to the 9000 Series amplifier's control input terminal permits various controls such as BGM source selection and the sound volume adjustment. It can be mounted in an American standard 2-gang electrical box in a wall.

Features

Features

Four interlocking selection buttons and two momentary buttons
Max. loop resistance: 250 ohms per line
Fits two gang electrical box
Removable Terminal Block
Maximum two ZM-9003 per chassis
Use of the ZM-9003 requires the installation of (1) C-001T Control IN/OUT Expansion Module.

Specification

Model	ZM-9003
Product Type	Remote Panel
Selection buttons	Four interlocking
Momentary buttons	2
Max. loop resistance	250 ohms per line
Fits	2 gang electrical box
Terminal	Removable terminal block (7 pins)
Operating Temperature	–10 to +40°C
Finish	Surface-treated steel plate, white, paint
Weight	0.7 lbs

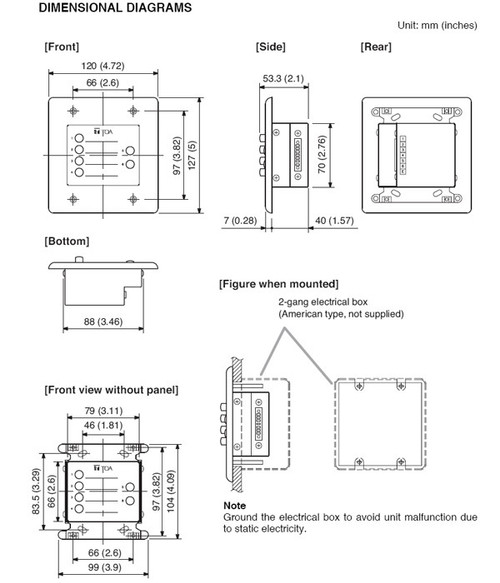

Dimensions	120 (w) x 127 (h) x 53.3 (d) mm (4.72" x 5" x 2.1")
