Inside the Design
This warehouse paging system is engineered to deliver clear voice projection, balanced zone coverage, and dependable performance in demanding industrial environments. It includes ten 6.5" 2-way full-range all-weather horn loudspeakers designed for strong speech intelligibility and wide dispersion in high-ceiling facilities, configured in a 70V (Hi-Z) layout with two speakers per zone tapped at 30W for efficient power distribution and consistent output across long cable runs. An 8-channel digital mixer amplifier provides structured multi-zone control and integrated processing for clean, reliable sound, while built-in Bluetooth enables convenient wireless audio streaming. A desktop push-to-talk gooseneck microphone ensures precise, controlled announcements for daily operations. Ideal for distribution centers, logistics hubs, manufacturing floors, and shipping areas, this scalable and durable solution delivers organized communication and consistent performance as a paging system for warehouse environments.
System Configuration Notice
This system is designed for 70V (high-impedance) operation and requires one speaker per amplifier output. The DZMA8125 digital mixer amplifier offers advanced configuration options and may require careful setup. For proper configuration and optimal performance, we recommend contacting our sales team before installation at (888) 256-4112 or sales@proacoustics.com.
Sound System Features:
- The H6 6.5" all-weather horn loudspeakers deliver full-range, high-output sound with exceptional vocal clarity, featuring a 90° x 90° dispersion pattern and up to 60 watts of continuous power handling. The IP66-rated polypropylene and calcium carbonate enclosure protects against dust, water, impacts, and temperature fluctuations for reliable performance in demanding warehouse environments.
- The DZMA8125 8-channel digital mixer amplifier combines advanced DSP processing with powerful 70V amplification, providing precise control, flexible multi-zone routing, and consistent audio performance across warehouse floors, aisles, and loading areas.
- The BTR1 Bluetooth receiver streams high-fidelity audio from any compatible device with a wireless range of up to 100 feet, enabling convenient placement and reliable playback of background music or operational announcements.
- The H6 loudspeakers' wide coverage ensures even sound distribution throughout large industrial spaces, making them ideal for warehouses, distribution centers, and manufacturing facilities.
- Configured for 70V (Hi-Z) operation, this system delivers efficient, balanced audio across long cable runs, allowing flexible speaker placement and easy expansion for larger areas or additional zones.
- The PTT1 desktop push-to-talk gooseneck microphone provides clear, intelligible voice pickup for facility-wide paging, operational updates, and safety announcements, with rugged construction designed for frequent daily use in busy industrial environments.
About the System Components

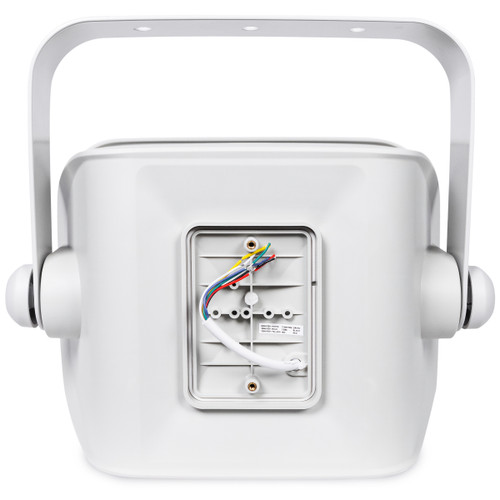

Pure Resonance Audio H6 6.5" All-Weather Horn Loudspeakers
The Pure Resonance Audio H6 horn loudspeakers are engineered for warehouse paging systems requiring high-output, full-range sound and exceptional vocal clarity. Each speaker features a 6.5" woofer and 1" tweeter with a frequency response of 120Hz-18kHz and 93 dB sensitivity, providing crisp, intelligible announcements across warehouse floors, aisles, and loading areas. The wide 90° x 90° dispersion pattern and up to 60 watts of continuous power handling ensure even coverage in multi-zone setups, with each speaker tapped at 30W in a 70V (Hi-Z) configuration for efficient long-run performance. Built from impact-resistant polypropylene with a calcium carbonate finish and an IP66-rated enclosure, the H6 is fully weatherproof and durable, designed to withstand dust, moisture, impacts, and temperature fluctuations in demanding industrial environments.
Pure Resonance Audio DZMA8125 8-Channel Digital Mixer Amplifier
The Pure Resonance Audio DZMA8125 is a versatile 8-channel digital mixer amplifier that serves as the central hub of this warehouse paging system. Combining 70V multi-zone amplification, advanced DSP, and flexible input routing, it provides precise control over ten H6 loudspeakers arranged in two-per-zone, 30W tapped configurations for reliable facility-wide coverage. The amplifier supports eight balanced Euroblock inputs and eight unbalanced RCA inputs, with integrated DSP offering a 10-band parametric EQ, dynamics processing, and speaker-optimized presets for Pure Resonance Audio horn speakers. System setup and control are managed through an intuitive browser-based interface accessible via computer, tablet, or smartphone, with optional local zone controllers for on-site volume adjustments. Ideal for warehouses, distribution centers, and industrial facilities, the DZMA8125 delivers professional multi-zone paging and background audio with consistent, scalable performance.
Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
The Pure Resonance Audio BTR1 Bluetooth wireless audio receiver provides high-quality, reliable wireless streaming for warehouse paging systems. It allows facility managers to stream background music, announcements, or operational audio directly into the DZMA8125 mixer amplifier from any Bluetooth-enabled device with up to 100 feet of range. The BTR1 pairs quickly, remembers up to eight devices, and automatically reconnects to the last paired source for dependable day-to-day use. Complete with mounting hardware and connection cables, it integrates seamlessly into rack or equipment setups, delivering full-range, low-noise audio throughout all configured zones of the 70V multi-zone system.
Pure Resonance Audio PTT1 Desktop Push-to-Talk Gooseneck Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk gooseneck microphone ensures clear, intelligible paging in warehouse and industrial environments. Featuring a unidirectional dynamic microphone, rugged metal desktop base, dual-function momentary/locking switch, 5-foot cable, and standard XLR connection, the PTT1 is built for frequent daily use. Its directional pickup pattern focuses on the speaker's voice while reducing ambient noise, providing crisp, on-demand announcements across all zones. Integrated into this 10-speaker, 70V system, the PTT1 enables reliable facility-wide communication for operational updates, safety alerts, and general paging, making it a key component of an organized and dependable warehouse audio solution.
