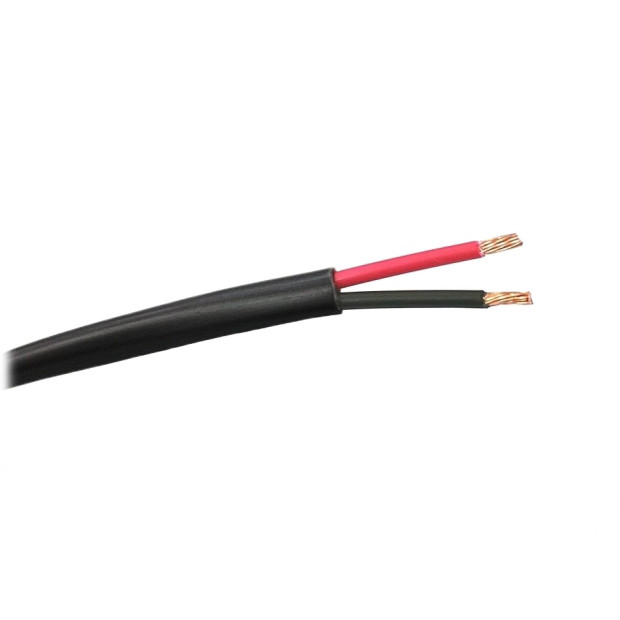

West Penn 224 18/2 Non-Plenum Audio Speaker Wire - Black (500ft)

Part # 224BK0500
Model # 224
The West Penn 224 is a 500 ft 18/2 non-plenum speaker wire with stranded bare copper conductors and a durable black jacket. It features red and black insulation for easy polarity identification, making it ideal for residential and commercial audio installations.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Description

Details

West Penn 224 18/2 Black Non-Plenum Audio Speaker Wire

The 224 18/2 non-plenum audio speaker wire provides reliable performance for both commercial and residential sound systems. Constructed with 18 AWG stranded bare copper conductors, it ensures excellent signal transmission and long-lasting durability. Each conductor is insulated with red and black PVC for quick polarity identification and enclosed in a flexible black jacket that allows easy routing through walls, ceilings, or conduit.

This 500 ft spool includes sequential footage markings for accurate measurement and efficient setup. Ideal for speaker connections, paging systems, and low-voltage audio installations, the West Penn 224 offers a professional-grade, cost-effective solution for high-quality sound distribution.

Features

Features

  • 500 ft black jacketed Non-Plenum cable for indoor use
  • 18 AWG stranded bare copper conductors
  • 2 conductors with red and black insulation
  • Non-Plenum flexible PVC jacket for easy routing and installation
  • Sequential footage markings for quick and accurate measurement
  • Available in a tangle-free box or spool
  • Ideal for commercial and residential Non-Plenum audio installations
Specification
Number of Conductors2
AWG Size18
Conductor Stranding7 x 26
Conductor TypeBare Copper
Nominal DCR6.2Ω per 1000 ft
Cabling Lay Length3.5"
Twists per Foot3.4 twist/ft
Insulation TypeThermoplastic
Insulation Thickness0.008"
Insulation ColorsRed and Black
Jacket TypePVC
Jacket ColorBlack
Jacket Thickness0.017"
Nominal Cable O.D.0.156"
Plenum RatedNo
UL/NEC RatingCMR, CMG
RoHS CompliantYes
Pull Tension42 lbs
Bend Radius1.40"
UL FlammabilityUL1666 Vertical Shaft
CSA FlammabilityFT4
Operating Temperature-20°C to 60°C
Voltage Rating300V
