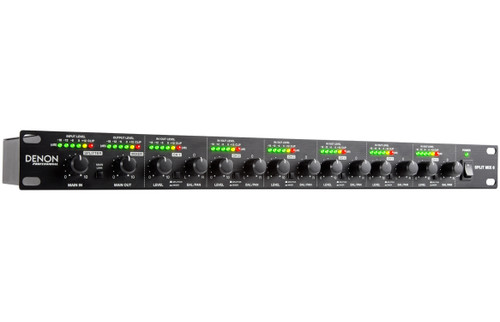

Denon Professional Split Mix 6 6-Channel Mixer with Signal Splitter (Discontinued)

Description

The Split Mix 6 is a versatile, one-rack space routing device that can be utilized as a 6-channel mixer - or a splitter with up to 8 outputs. In Splitter Mode, a stereo input signal can be sent to up to 8 discreet outputs.  In Mixer Mode, a stereo input signal can be mixed with up to 6 mono signals - and at the same time, have separate direct outs for the mono inputs. This audio tool is very useful for distributed audio in Splitter mode, or in creating custom mixes in Mixer mode.

Features

• Used as a 6-channel mixer or 8-output splitter
• Perfect for sending a stereo program to separate zones or amplified speaker systems
• Create custom mixes utilizing mixed and separate audio feeds
• Balanced and unbalanced inputs and outputs
• Balance and level controls with 6-segment LED meters on mono input channels
• Main input and output level controls with 6-segment LED meters

Specifications

Audio Inputs
Connectors	XLR and 1/4" TRS
Type	RF Filtered, Servo-Balanced Input
Impedance	50kΩ Balanced, 25kΩ Unbalanced
Nominal Operating Level	-10 dBV to +4 dBu
Max Input Level	+21dBu Balanced and Unbalanced
CMMR (Common Mode Rejection Ratio)	Typically 40dB, > 55dB @ 1kHz
Audio Outputs
Connectors	XLR and 1/4" TRS
Type	Electronically Servo-Balanced Output Stage
Impedance	60Ω Balanced / 30Ω Unbalanced
Max Uutput Level	+22dBu Balanced and Unbalanced
Frequency Response	5Hz - 20kHz, ±3dBu
Signal-to-Noise Ratio	>95dBu, Unweighted (20 - 20kHz)
THD
Function Switches
Main Link	Links Nain Input Signal to The Main Output
Split/Mix	Changes from Split Mode to Mix Mode for Each Channel
General
Power Supply
USA/Canada	120VAC, 60Hz
U.K. / Australia	240VAC, 50Hz
Europe	230VAC, 50Hz
Power Consumption Max	15 W
Fuse
100 – 120 V	T 315 mA H
220 – 240 V	T 200 mA H
Dimensions (H x W x D)	1.7" (44 mm) x 19" (483 mm) x 7.5" (195 mm)
Weight	5.7 lbs (2.6kg)

DOCUMENTS

In The Box

• Split Mix 6
• Power Cable
• User Guide
• Safety and Warranty Manual
