Williams AV IR SY11 IR Plus Complete Infrared Assistive Listening System

Williams AV IR SY11 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 4 Receivers

By Williams AV

Williams AV IR SY11 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 4 Receivers

Name: Williams AV IR SY11 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 4 Receivers
Brand: Williams AV
SKU: WILLIAMS-IR SY11 D
Price: 5512 USD
Availability: InStock

Write a Review

Part #:

IR SY11 D

Model #:

IR SY11 D

Current Stock:

Availability: 2+ Week Lead Time

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Williams AV IR SY11 D IR+ complete infrared assistive listening system with Dante includes an IR M1 D modulator, two IR E4 emitters, and four WIR RX22-4 receivers. It delivers a complete IR assistive listening solution for large venues with Dante network audio integration.

Description

Williams AV IR SY11 D IR Plus Infrared Assistive Listening System with Dante

The IR SY11 D IR+ complete infrared assistive listening system is a fully integrated solution designed to deliver clear, reliable audio for assistive listening applications in large venues. Built with Dante network audio compatibility, it ensures seamless integration into modern AV infrastructures.

This complete system includes an IR M1 D rack-mount modulator with Dante input support for two audio channels, providing high-quality signal distribution to infrared emitters. Two IR E4 wall-mounted infrared emitters ensure wide and consistent room coverage.

The system also includes four WIR RX22-4 four-channel infrared receivers, designed for user-friendly operation and clear audio reception. Additional system components, such as accessories, mounting hardware, and supporting devices, provide everything needed for a fully functional assistive listening installation.

Features

Complete IR+ assistive listening system with Dante audio integration
Includes IR M1 D rack-mount modulator with 2-channel Dante input
Two IR E4 wall-mounted infrared emitters for wide coverage
Four WIR RX22-4 four-channel infrared receivers included
Designed for large venue assistive listening applications
Provides clear, reliable infrared audio transmission
Fully integrated system for professional installations
Compatible with modern Dante network audio systems
Ideal for theaters, houses of worship, and public venues
Turnkey solution for ADA-compliant assistive listening

Specifications

IR M1 D Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Dante Support	Integrated Dante audio networking
Signal-to-Noise Ratio	67 dB (typical)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)

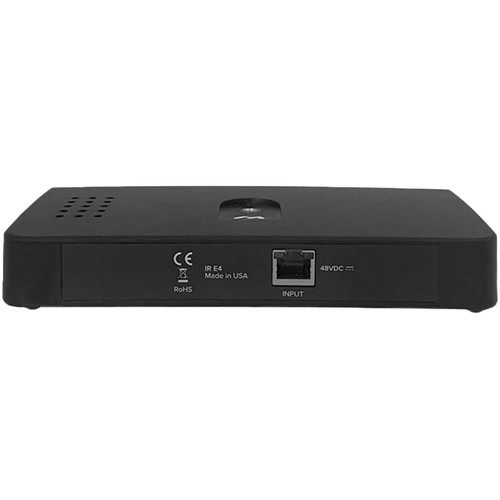

IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)
WIR RX22

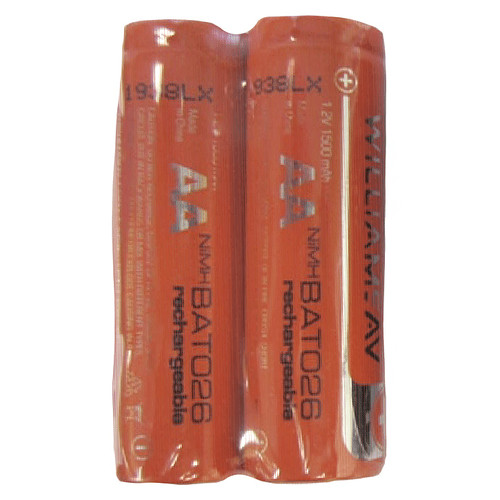

Battery Type	2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Drain	25 mA, nominal
Frequency Response	25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion	Less than 1%, electrical response
Controls	ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Dimensions (H x W x L)	1.2" (30.4 mm) x 3.86" (72.4 mm) x 4.1" (104.1 mm)
Weight	0.28 lbs (0.13 kg)

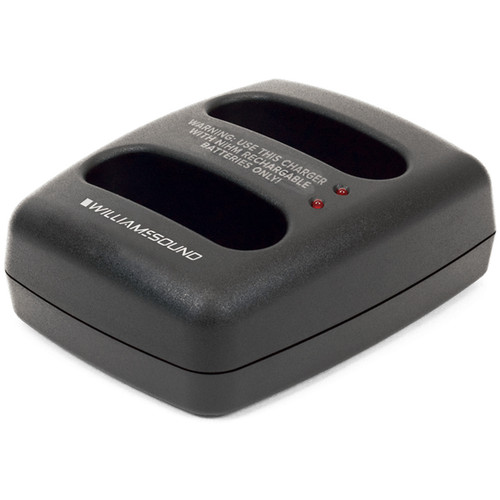

CHG 3502
Power Supply	Input: 100-240 VAC, 50-60 Hz, 0.5-0.3A Output: 6 VDC, 1.5A
Charging Time	16 hours nominal
Charger Power	Input: 6 VDC, 300 mA, Center Positive Output: 100mA per bay
Dimensions (H x W x L)	2" (50.8 mm) x 2.85" (72.39 mm) x 4.88" (123.95 mm)
Shipping Weight	1.1 lbs (0.5 kg)
