Williams Sound DWS INT 5 300 Digi-Wave Language Interpretation System (Discontinued)

Description

Details

The DWS INT 5 300 is a completely portable, wireless, single-speaker, 4-language interpretation system. Ideal for up to four languages, plus floor. Up to 50 listeners. Space for up to 70 receivers per tray. Ideal when security, sound quality and flexibility are critical. Designed for small - to medium-size conferences, meetings or other events where one language is shared by four interpreters. System can serve up to 50 listeners. Additional DLT 300's can be purchased separately to accommodate up to 14 additional languages. Additional DLR 360's can be purchased separately to accommodate additional listeners. Can serve unlimited number of listeners within recommended range.

DWS INT 5 300 is ideal for a one floor / four interpreter scenario:
One DLT 300 transceiver is set up as body-worn transmitter to provide a direct audio feed from a speaker to four interpreters. Interpreters 1, 2, 3 and 4 then use DLT 300's to both listen to the speaker and transmit their simultaneous interpretation to the audience on 4 separate channels. The audience, using DLR 360's, can tune in any of these channels (they can toggle back and forth between CH 0 for floor speaker and CH 1-4 for interpreted languages).

Features

Features

Can accommodate floor (or common) language, plus 4 languages (expandable up to 14 languages)
Quick set-up
No base station, console or mixing board needed
Lightweight — saves on shipping costs
Expandable solution — can grow with your needs
2.4GHz operation — legal for use in most countries
All-day operation on a single, full charge
Any number of listeners (with DLR 360 receivers)
IC-2 Interpreter's Control Console(s) also can be integrated for interpreter's booth

Specification

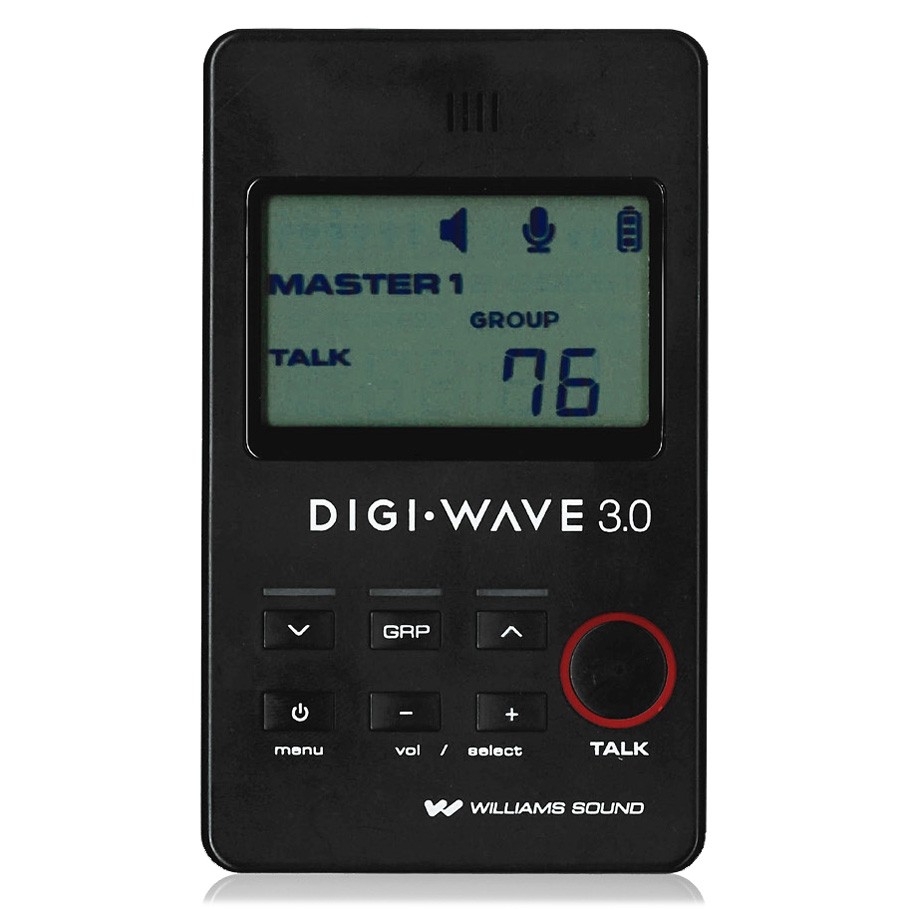

DLT 300 Transceiver
Color	Black/Silver (Front/Back)
Case Material	Black ABS Plastic
Battery Type	Lithium Polymer with Smart Charge Built into Transceiver; 2000 mAH
Battery Life	Up to 14 hrs Talk Time Per Charge Current Consumption Range: 39 mA @ Idle to 94 mA w/1 Ch Tx and 3 Ch Rx
Power Save	Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices
Charge Time	5 hrs. TFP 045 with Cable and International Adapters
Optional Chargers	2-Bay CHG 102, 12-Bay CHG 1012, TFP 045
Simultaneous Channels/Groups/Talkers	Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode)
Operating Frequencies	2.4 GHz (ISM Band); 2402 – 2476 MHz FHSS
Audio Frequency Response (-3dB Knee Level)	Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz
SNR	74 dB (A-Weighted, Maximum Output)
THD	0.33 %
Microphone Input	Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone Jack (Tip/Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range.
Headphone Output	3.5 mm Phone Jack; 33 Ω Load
Audio Output	Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal Speaker (Disabled When Haedphone Jack in Use) <20mW @ 10% THD/RL = 33Ω
Range	Up to 200 ft Outdoors and 300 ft Indoors (Depending Upon Environmental Conditions)
Modulation	FSK
RF Output	14 dBm Typical
Security	87 Bit Encryption, Secure Key Code, Setup Lock (SLOC)
Controls	Front Panel Push Buttons for Volume Up/Down, Group Select, Menu Access and Selection, Timer, Time, MIC On/Off, Power On/Off, Tone Control SLOC Access and Secure Key Access. System Reset Button (Rear Panel)
Outputs	3.5 mm Stereo/Mono Headphone Jack; 30 Pin Charging Jack with Audio Out to Base Stations
Side Tone	-12 dB Below Volume, Tone Variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB]
Indicators	LCD (Group, Channel, Volume Level, Battery Status, Mode, Number of People with Talk Button On)
LED’s	(Charge Status) Red LED Around Talk Button When Enabled.
Docking Connector	30-Pin Connector for Charging and Audio In/Out
Compatible Receiver	DLR 360 Only
Approvals	FCC, Industry Canada, CE, RoHS, WEEE, RCM
Warranty	2 Years Parts and Labor (90 Days on Accessories); 6 Months on Internal Battery
DLR 360 Receiver
Frequency Band	2.4 GHz (ISM Band)
Modulation	FSK
Multi Channel	Up to 15 Simultaneous Channels (One Way Mode)
Case Material	Black ABS Plastic
Battery Type	2 x AAA Alkaline or NiMH
Battery Life	Alkaline Disposable (BAT 010-2): Up to 24 hrs NiMH Rechargeable (BAT 022-2): Up to 18 hrs
Power Save	Auto Sleep Mode After 5 Minutes of No RF Signal from Compatible Devices
Audio Frequency Response (-3dB knee level)	Conference Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz
SNR	65 dB (A-Weighted)
THD	0.1% (Typical)
Antenna	Internal
Headphone Audio Output	3.5 mm Stereo Jack with Mono Output for Headphones, Earphones, or Neckloop 27 mW Maximum @ 33Ω Mono Internal Speaker (Disabled When Headphone Jack in Use)
Controls	Power, Volume +/-, Channel +/-, Setup, Battery Type
Display	LCD Shows Status: Battery Level, RSSI, Group/Channel#
Indicators	Red LED - Blinks When Charging Green LED - Stays on When Charged
Docking Connector	30-pin iPod Style for Charging and Audio Out
Compatible Transmitter	DLT 300 Only
Temp. Range	32° – 122°F (0° to 50°C)
Optional Chargers	2-Bay CHG 102, 12-Bay CHG 1012, TFP 045
Accessories	Silicone Skin, Lanyard, Wrist Strap
Approvals	FCC, Industry Canada, RoHS, CE, WEEE, RCM
Warranty	2 Years Parts and Labor (90 Days on Accessories)
Dimensions	3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm)
Weight	0.106 lbs (0.048 kg)
EAR 022 Surround Earphones
Style	Around-Ear Speaker
Plug	3.5 mm Mono
Cord	39"
Driver Size	23 mm
Nominal Impedance	32Ω
Freq. Response	20 - 20kHz
Max Power Input	30 mW
Sensitivity	118 dB @ 1kHz
Weight	0.033 lbs (0.015 kg)
CCS 054 Heavy-Duty Carry Case
Dimensions (H x W x D)	13.2" (335.28 mm) x 26.2" (665.48 mm) x 19.7" (500.38 mm)
Weight	23 lbs (10.4 kg)
CHG 1012 12-Bay, Drop-In Charger
Enclosure	Black, ABS Plastic with Metal Base
Power Supply Input	TFP 047, 90-240 VAC Input, 1.5 A max
Power Supply	Universal DC Adapter, 5 VDC - 6A Output, Center Positive
Charging Time	5 Hours Nominal
Unit Capacity	12 Units
Compatible Units	Transceivers: DLT 300, DLT 100 2.0, DLT 100 Receivers: DLR 360, DLR 60 2.0, DLR 60
Indicators	Charge Status Indicators on DLT or DLR
Warranty	2 Year (Cables and Power Supply Warranty for 90 Days)
Approvals	CE, FCC, WEEE, RoHS, CB
Warranty	2 Year (Case, Cables and Power Supply Warranty for 90 Days)
Dimensions (H x W x D)	CHG 1012 (Charger Only): 1.6" (40.64 mm) x 7" (177.8 mm) x 9" (228.6 mm) CHG 1012 PRO (case dimensions): 6.75" (171.45 mm) x 14" (355.6 mm) x 18" (457.2 mm)
Weight	CHG1012: 3.3 lbs (1.5 kg), Including Power Supply CHG1012 PRO: 9.4 lbs (4.26 kg), Including Power Supply
MIC 058 Dual-Headset Microphone
Microphone Element	Unidirectional Electret
Microphone Sensitivity	45 dB ± 5 dB
Microphone Frequency Response	100 Hz - 12 kHz
Microphone Impedance	150 Ω
Microphone Signal-to-Noise Ratio	>50 dB
Microphone Operating Voltage	1 - 10 VDC
Headphone Driver Type	50 mm, Dynamic
Headphone Frequency Response	10 Hz - 20 kHz
Headphone Impedance	32 Ω
Headphone Max SPL Out	96 dB
Headphone Max Power Input	100 mW
Cord Length	42"
Plugs	Dual 3.5 mm
Replacement Mic Screen	WND 058
Replacement Earpads	EAR 058
Approvals	CE, RoHS
Warranty	90 Days
BAT 022-2 Batteries	NiMH, 1.2 Volt, 950 mAh
