| DLR 360 Receivers |
| Frequency Band |
2.4 GHz (ISM Band) |
| Modulation |
FSK |
| Multi Channel |
Up to 15 Simultaneous Channels (One Way Mode) |
| Case Material |
Black ABS Plastic |
| Battery Type |
2 x AAA Alkaline or NiMH |
| Battery Life |
Alkaline Disposable (BAT 010-2): Up to 24 hrs
NiMH Rechargeable (BAT 022-2): Up to 18 hrs |
| Power Save |
Auto Sleep Mode After 5 Minutes of No RF Signal From Compatible Devices |
| Audio Frequency Response(-3dB Knee Level) |
Conference Mode: 140 – 11.5 KHz
Intercom Mode: 140 – 7.6 KHz |
| SNR |
65 dB (A-Weighted) |
| THD |
0.1% (Typical) |
| Antenna |
Internal |
| Headphone Audio Output |
3.5 mm Stereo Jack with Mono Output for Headphones, Earphones, or Neckloop 27 mW Maximum @33Ω Mono
Internal Speaker (Disabled When Headphone Jack in Use) |
| Controls |
Power, Volume +/-, Channel +/-, Setup, Battery Type |
| Display |
LCD Shows Status: Battery Level, RSSI, Group/Channel# |
| Indicators |
Red LED - Blinks When Charging
Green LED - Stays On When Charged |
| Docking Connector |
30-Pin iPod Style for Charging and Audio Out |
| Compatible Transmitter |
DLT 300 Only |
| Temp. Range |
32° - 122°F (0° to 50°C) |
| Optional Chargers |
2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Accessories |
Silicone Skin, Lanyard, Wrist Strap |
| Approvals |
FCC, Industry Canada, RoHS, CE, WEEE, RCM |
| Warranty |
2 Years Parts and Labor (90 Days on Accessories) |
| Dimensions (H x W x D) |
3.54" (90 mm) x 2.36" (60 mm) x 0.63" (16 mm) |
| Weight |
0.106 lbs (0.048 kg) |

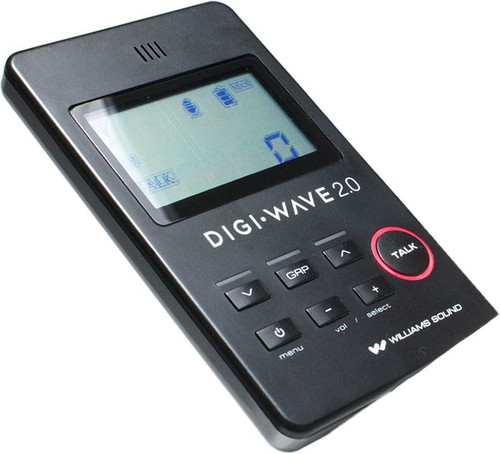

| DLT 300 Transceiver |
| Color |
Black/Silver (Front/Back) |
| Case Material |
Black ABS Plastic |
| Battery Type |
Lithium Polymer with Smart Charge Built into Transceiver; 2000 mAH |
| Battery Life |
Up to 14 hrs Talk Time Per Charge Current Consumption Range: 39 mA @ Idle to 94 mA w/1 Ch Tx and 3 Ch Rx |
| Power Save |
Auto Sleep Mode after 5 Minutes of No RF Signal from Compatible Devices |
| Charge Time |
5 hrs. TFP 045 with Cable and International Adapters |
| Optional Chargers |
2-Bay CHG 102, 12-Bay CHG 1012, TFP 045 |
| Simultaneous Channels/Groups/Talkers |
Up to 15 Simultaneous Channels (0-14) (Interpretation Mode) Up to 4 Simultaneous Groups (2 Way Mode) Up to 4 Simultaneous Talkers Per Group (2-Way Mode) Up to 6 Simultaneous Talkers Per Group (2-Way Intercom Mode) |
| Operating Frequencies |
2.4 GHz (ISM Band); 2402 - 2476 MHz FHSS |
| Audio Frequency Response (-3dB Knee Level) |
Conference Mode, Interpreter Mode: 140 – 11.5 KHz Intercom Mode: 140 – 7.6 KHz |
| SNR |
74 dB (A-Weighted, Maximum Output) |
| THD |
0.33 % |
| Microphone Input |
Internal Microphone (Disabled When MIC Jack Engaged) and 3.5 mm Phone jack (Tip/Sleeve) with Electret Microphone Bias, Adjustable Gain with 63dB Range. |
| Headphone Output |
3.5 mm Phone Jack; 33 Ω Load |
| Audio Output |
Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal Speaker (Disabled When Haedphone Jack in Use) |
| Range |
Up to 200 ft Outdoors and 300 ft Indoors (Depending Upon Environmental Conditions) |
| Modulation |
FSK |
| RF Output |
14 dBm Typical |
| Security |
87 Bit Encryption, Secure Key Code, Setup Lock (SLOC) |
| Controls |
Front Panel Push Buttons for Volume Up/Down, Group Select, Menu Access and Selection, Timer, Time, MIC On/Off, Power On/Off, Tone Control SLOC Access and Secure Key Access. System Reset Button (Rear Panel) |
| Outputs |
3.5 mm Stereo/Mono Headphone Jack; 30 Pin Charging Jack with Audio Out to Base Stations |
| Side Tone |
-12 dB Below Volume, Tone Variation [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB] |
| Indicators |
LCD (Group, Channel, Volume Level, Battery Status, Mode, Number of People with Talk Button On) |
| LED’s |
(Charge Status) Red LED Around Talk Button When Enabled. |
| Docking Connector |
30-Pin Connector for Charging and Audio In/Out |
| Approvals |
FCC, Industry Canada, CE, RoHS, WEEE, RCM |
| Compatible Receiver |
DLR 360 Only |
| Warranty |
2 Years Parts and Labor (90 Days on Accessories); 6 Months on Internal Battery |
| Dimensions (H x W x D) |
2.43" (61.8 mm) x 4.07" (103.3 mm) x 0.44" (11.3 mm) |
| Weight |
0.062 lbs (0.082 kg) |
| EAR 022 Surround Earphones |
| Style |
Around-Ear Speaker |
| Plug |
3.5mm Mono |
| Cord |
39" |
| Driver Size |
23 mm |
| Nominal Impedance |
32Ω |
| Freq. Response |
20 - 20kHz |
| Max Power Input |
30 mW |
| Sensitivity |
118 dB @ 1kHz |
| MIC 044 2P Headset Microphone |
| Color |
Black |
| Plug |
2 x 3.5mm |
| Cord |
39" |
| Phantom Powered |
No |
| Nominal Impedance |
32Ω |
| Freq. Response |
150 - 18kHz |
| Pick-Up Pattern |
Cardiod |
| Transducer Type |
Electret Cond |
| Sensitivity |
105dB EAR |
| Replacement Windscreen |
WND 008 |
| Replacement Earpad |
EAR 035 |
| Warranty |
90 Days |
| Weight |
0.1625 lbs (0.074 kg) |

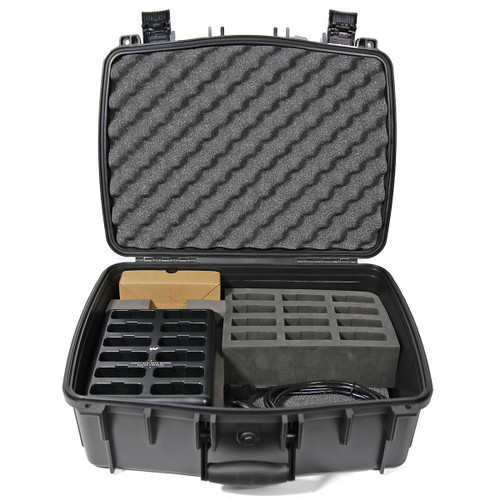

| CHG 1012 PRO |
| Enclosure |
Black, ABS Plastic with Metal Base |
| Power Supply Input |
TFP 047, 90-240 VAC Input, 1.5 A Max * |
| Power Supply |
Universal DC Adapter, 5 VDC - 6A Output, Center Positive |
| Charging Time |
5 Hours Nominal ** |
| Unit Capacity |
12 Units |
| Compatible Units |
Transceivers: DLT 300, DLT 100 2.0, DLT 100
Receivers: DLR 360, DLR 60 2.0, DLR 60 |
| Indicators |
Charge status indicators on DLT or DLR |
| Warranty |
2 Year (Cables and Power Supply Warranty for 90 Days) |
| Approvals |
CE, FCC, WEEE, RoHS, CB |
| Warranty |
2 Year (Case, Cables and Power Supply Warranty for 90 Days) |
| Dimensions (H x W x D) |
CHG 1012 (Charger Only): 1.6" (40.64 mm) x 7" (177.8 mm) x 9" (228.6 mm)
CHG 1012 PRO (Case): 6.75" (171.45 mm) x 14" (355.6 mm) x 18" (457.2 mm) |
| Weight |
CHG1012: 3.3 lbs (1.5 kg), Including Power Supply
CHG1012 PRO: 9.4 lbs (4.26 kg), Including Power Supply |

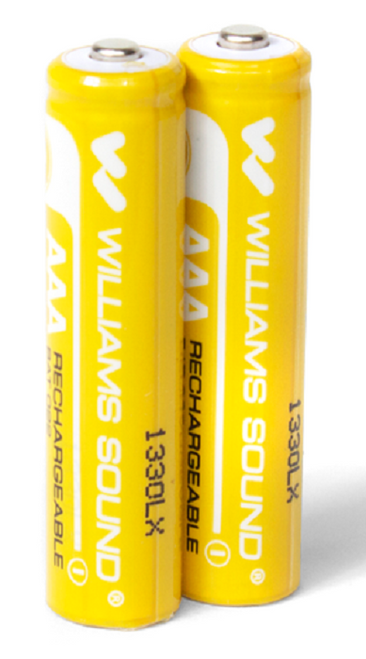

| Bat 022-2 Batteries |
NiMH, 1.2 Volt, 950 mAh |
