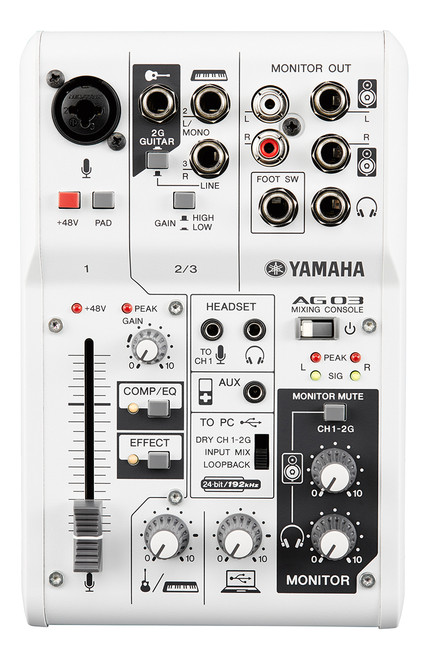

Yamaha AG03 3-Channel Mixing Console (Discontinued)

By Yamaha

Yamaha AG03 3-Channel Mixing Console (Discontinued)

Name: Yamaha AG03 3-Channel Mixing Console (Discontinued)
Brand: Yamaha
SKU: YAMAHA-AG03
Price: 189.99 USD
Availability: OutOfStock

Write a Review

Part #:

AG03

Model #:

AG03

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

AG is a multi-purpose, high-resolution mixer and USB audio interface designed to elevate the creative, audio experience for webcasters / podcasters, gamers, mobile musicians, music producers and more.

Description

Ready to share your musical creations with the world? AG is an ideal tool for fast and easy production of musical content for live streaming sites like YOUTUBE LIVE and USTREAM, online lessons in real time, or creating video or audio podcasts offline. The AG's studio-quality sound will give your content a professional edge to win over your audience and increase your fan-base. AG is a multi-purpose, high-resolution mixer and USB audio interface designed to elevate the creative, audio experience for webcasters / podcasters, gamers, mobile musicians, music producers and more.

Features

Multipurpose 3-channel mixer with USB audio interface. Flexible LOOPBACK feature – perfect for live recording or webcasting. High resolution (24-bit192kHz) 2-track audio recording and playback. "D-PRE" studio quality mic preamps with high gain and low noise. Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT processing. +48V phantom power on CH1 input for condenser mics and Dl boxes. Hi-Z input for guitars on CH2. iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply). USB buspowered for Mac & PC. Rugged metal chassis. Includes Cubase Al downloadable version.

Specifications

Outline
Input Channels	Mono (MIC / LINE): 1 including HEADSET MIC (Plug-in Power), Stereo (LINE): 1 including Guitar input (Mono) AUX IN:1
Output Channels	MONITOR OUT: 2 PHONES: 2 including HEADSET PHONES
Bus	Stereo: 1
Pad	26 dB
PEAK LED:	LED turns on when the signal reaches 3 dB below clipping level.
DSP	CH1: COMP / EQ, EFFECT (SPX Reverb)
Level Meter / USB Output Level	2 x 2 point LED meter [PEAK, SIG]
USB	USB Audio: 2 IN / 2 OUT USB Audio Class 2.0 compliant Sampling Frequenc y : Max 192 kHz Bit Depth: 24-bit
Phantom Power Voltage	+48 V
General
Power Requirements	DC 5 V, 500 mA
Power Consumption	Max 2.5 W
System Requirements ( OS )	For USB Audio/AG DSP Controller: Windows 7 or later / Mac OS X 10.7 or later
Dimensions ( H x W x D )	2.5" ( 63 mm) x 5.1" ( 129 mm ) x 8.0" ( 202 mm )
Net Weight	1.8 lbs (0.8 kg )
