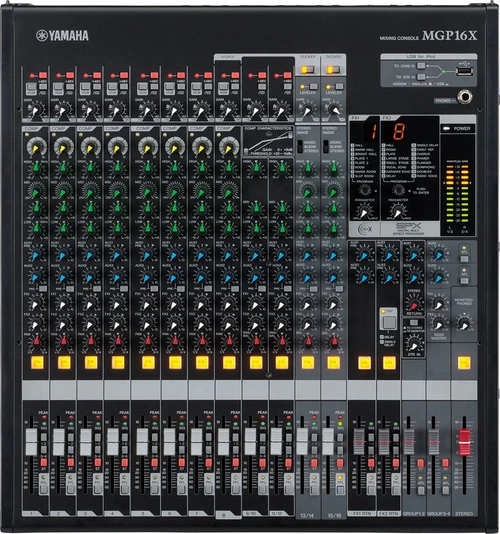

The latest addition to the ground-breaking MGP Series that created a new paradigm for compact mixers combining analogue authenticity with comprehensive digital capabilities. This console offers expanded mixing capabilities with more channels and three new digital features; USB device recording and playback, Graphic EQ and a multi-band compressor.
Drawing from decades of experience crafting innovative, premium analog gear, we originally developed our new discrete Class-A microphone preamps for professional use in our high-end recording equipment. Utilizing an inverted Darlington circuit design, our newly-refined D-PRE mic preamps deliver a fat, rich, smooth tone that gives the MGP Series a significant advantage over any other mixer in its class. With Yamaha's proprietary X-pressive EQ we've managed to capture ultimate analog authenticity by unlocking the mysterious secret behind the expressive sound shaping capabilities of sought-after classic EQ modules.
At the heart of the MGP's compact configuration, we've taken an innovative new approach to the utilization of digital technology in an analog mixer; adding high-resolution effects, iPod/iPhone integration and the superb functionality of our new Stereo Hybrid Channel to the warmth and musicality of premium analog sound.
| Mixing Channels | 16 Line Inputs (8 mono and 4 stereo) |
|---|---|
| GROUP | 4 GROUP Buses + ST Bus |
| AUX | 2 AUX Sends + 2 FX Sends |
| Mic Inputs | MIC: 10 |
| Phantom Power | 48V phantom power per channel |
| Line Inputs | LINE: 8 mono + 4 stereo CH INSERT: 8 RETURN: 1 stereo 2TR IN: 1 stereo |
| Digital I/O | USB Audio USB IN: iPod iPhone exclusive |
| Total Harmonic Distortion | 0.02% (20Hz-20kHz @ +14dBu) |
| Frequency Response | +0.5/-1.0dB 20Hz - 20kHz refer to the nominal output level @ 1kHz |
| Equivalent Input Noise | -128 dBu (20Hz–20 kHz, Rs=150 ohm, Input Gain = Maximum) |
| Residual Output Noise | -102 dBu (20Hz–20 kHz, Rs=150 ohm, Input Gain = Maximum) |
| Crosstalk | -74dB @ 1kHz |
| Power Requirements | 100-240V 50Hz/60Hz |
| Power Consumption | 55W max |
| Dimensions (H x W x D) | 5.63" (143 mm) x 17.6" (447 mm) x 19.49" (495 mm) |
| Net Weight | 19.84 lbs (9 kg) |
