Yamaha M7CL-48ES 48 Channel Digital Mixing Console (Discontinued)

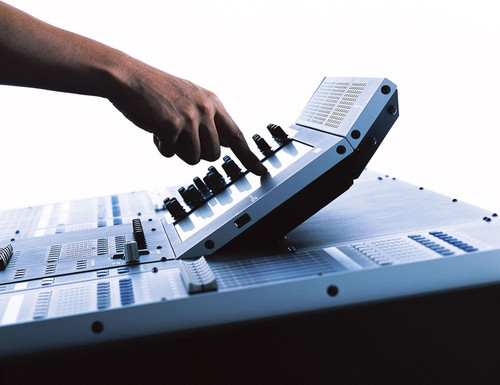

It includes an impressive array of advanced concepts such as the "Centralogic™" control interface that makes it as easy and intuitive to use as an analog console, and in-depth access management facilities that will be particularly appreciated in installations. The M7CL is familiar and comfortable to use, offering a level of convenience that overturns the preconception that "digital is difficult". A surprising range of functions that you would normally have to supply in the form of peripheral equipment is built in, and all of this is provided in a space that is dramatically less than an analog console of similar scope. The M7CL is the ideal digital mixing console for medium size live sound applications that have previously been handled by analog gear.

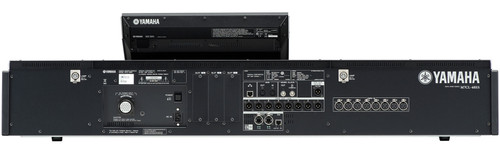

Where the original M7CL-48 has 48 analog inputs, the M7CL-48ES has a total of three EtherSound ports: two for connection to as many as three Yamaha SB168-ES EtherSound stage boxes in either daisy chain or ring configuration. The 3rd port allows permanent connection to a computer while the stage boxes are connected in ring mode.

To set up a basic daisy-chain system all you need to do is connect the M7CL-48ES to the SB168-ES stage boxes via appropriate cables and turn on the power. The ESMonitor software is not required. Everything is configured automatically, and you don't even have to set or worry about the order of the ID numbers of the SB168-ES units used. Switch a few settings and setting up a ring network is just as easy.

Although the 48 analog inputs are replaced by EtherSound ports, the M7CL-48ES retains eight OMNI inputs and eight OMNI outputs that can be used for direct analog connection. These provide an ideal way to insert outboard processors and other equipment.

The M7CL-48ES is compatible with backup data created by the M7CL-32 and M7CL-48 consoles, so time and effort you've spent creating finely-tuned setups for the M7CL-32 or M7CL-48 won't be wasted.
