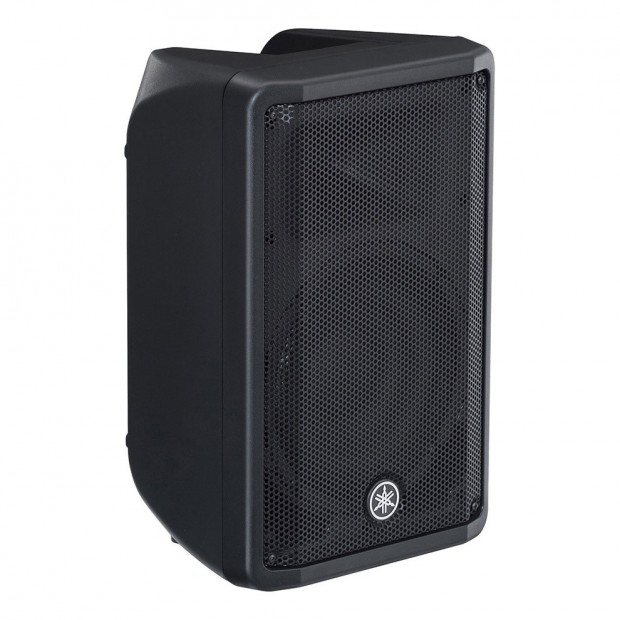

The CBR10 10" passive loudspeaker was developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.
The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.
The Yamaha CBR10 comes equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2" compression driver, ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Have you ever blown your speakers by cranking up the output levels beyond your speakers' capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.
CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
|---|---|
| Nominal Coverage | H - 90°; V - 60° |
| Components - LF | 10" Cone, 2" Voice Coil (Ferrite Magnet) |
| Components - HF | 1" Voice Coil, Compression Driver (Ferrite Magnet) |
| Crossover | 2.8 kHz |
| Power Rating | NOISE: 175W PGM: 350W PEAK : 700W |
| Nominal Impedance | 8Ω |
| SPL Sensitivity (1W; 1m on axis) | 94 dB SPL |
| SPL Peak (Calculated) | 123 dB SPL |

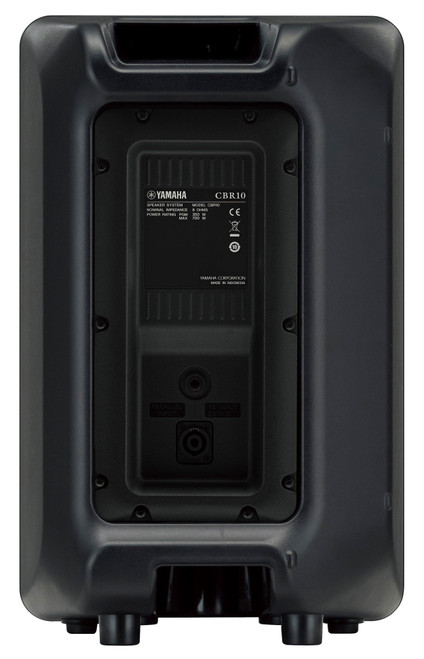

| I/O Connectors | 1/4" Phone x 1, speakON NL4MP x 1 |
| Cabinet Material | Plastic |
| Finish | Black |
| Flying and Mounting Hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts) |
| Pole Socket | Φ35 mm Bottom x 1 |
| Dimensions (H x W x D) | 19.4" x (493 mm) x 12.1" x (308 mm) x 11.4" (289 mm) |
| Net Weight | 20.7 lbs (9.4 kg) |
