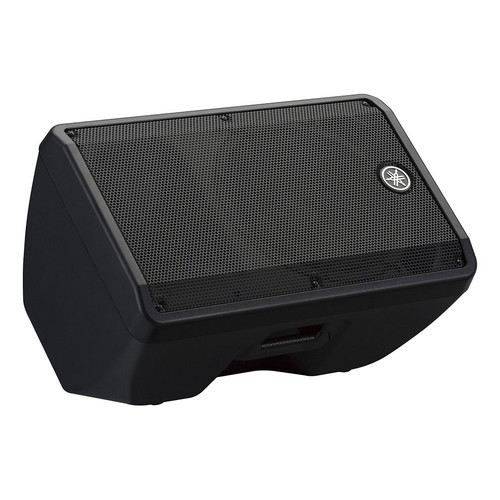

Yamaha CBR12 12" 350W Passive Loudspeaker

Part #:
CBR12
Model #:
CBR12
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Yamaha CBR12 12" passive loudspeaker represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

Description

Yamaha CBR12 12-inch 350W Passive Loudspeaker

The CBR12 12" passive loudspeaker represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

The Yamaha CBR12 comes equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2" compression driver, ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

Have you ever blown your speakers by cranking up the output levels beyond your speakers' capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.

Features

  • 12 inch 350-watt passive loudspeaker with lightweight plastic cabinet
  • Rugged, highly portable enclosure design
  • Custom designed transducers and wide-dispersion constant directivity horn for powerful high-definition sound
  • HF protection function and highly responsive LF unit for reliable performance at any output level
  • Highly-sensitive LF driver puts out full bass even at lower volumes
  • Simple connectivity
  • HF-protection circuit prevents tweeter damage due to excessive signal levels
  • Impressive 350W RMS power handling
  • 1/4" and speakON inputs for flexible connectivity
  • Versatility for a variety of applications

Specifications

Speaker Type 2-way Speaker, Bass-reflex Type
Frequency Range (-10 dB) 48 Hz - 20 kHz
Nominal Coverage H - 90°; V - 60°
Components - LF 12" Cone, 2" Voice Coil (Ferrite Magnet)
Components - HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.1 kHz
Power Rating NOISE: 175W
PGM: 350W
PEAK : 700W
Nominal Impedance
SPL Sensitivity (1W; 1m on axis) 96dB SPL
SPL Peak (Calculated) 125 dB SPL
I/O Connectors 1/4" Phone x 1, speakON NL4MP x 1
Cabinet Material Plastic
Finish Black
Flying and Mounting Hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole Socket Φ35 mm Bottom x 1

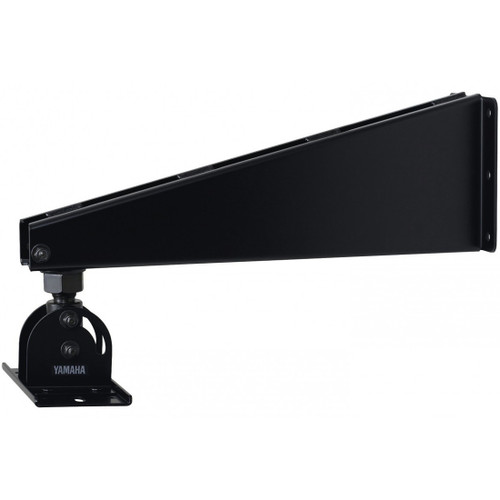

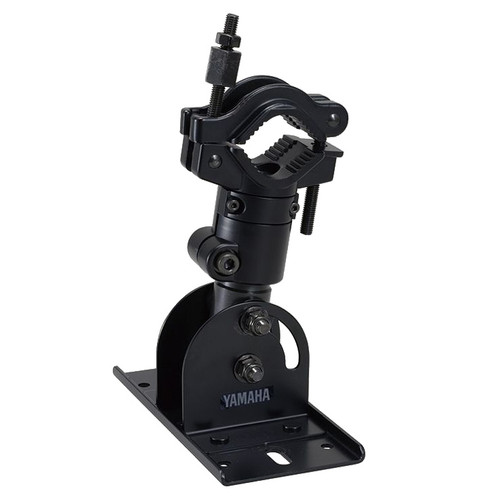

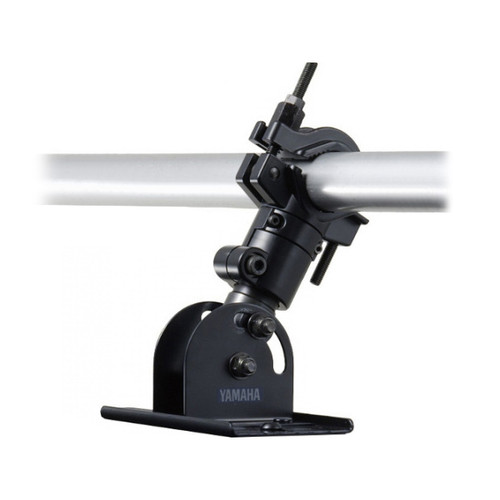

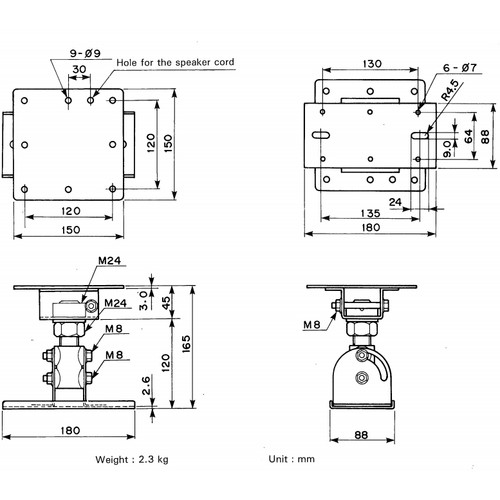

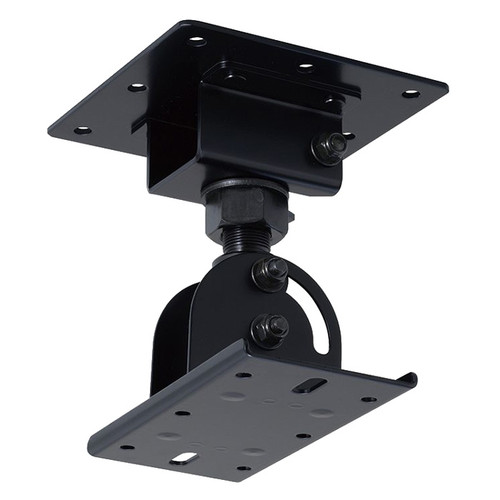

Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
Dimensions (H x W x D) 23.7" (601 mm) x 14.8" (376 mm) x 13.7" (348 mm)
Net Weight 30.6 lbs (13.9 kg)
