Yamaha CBR10 10" 350W Passive Loudspeaker
Usually arrives in 5-9 business days.

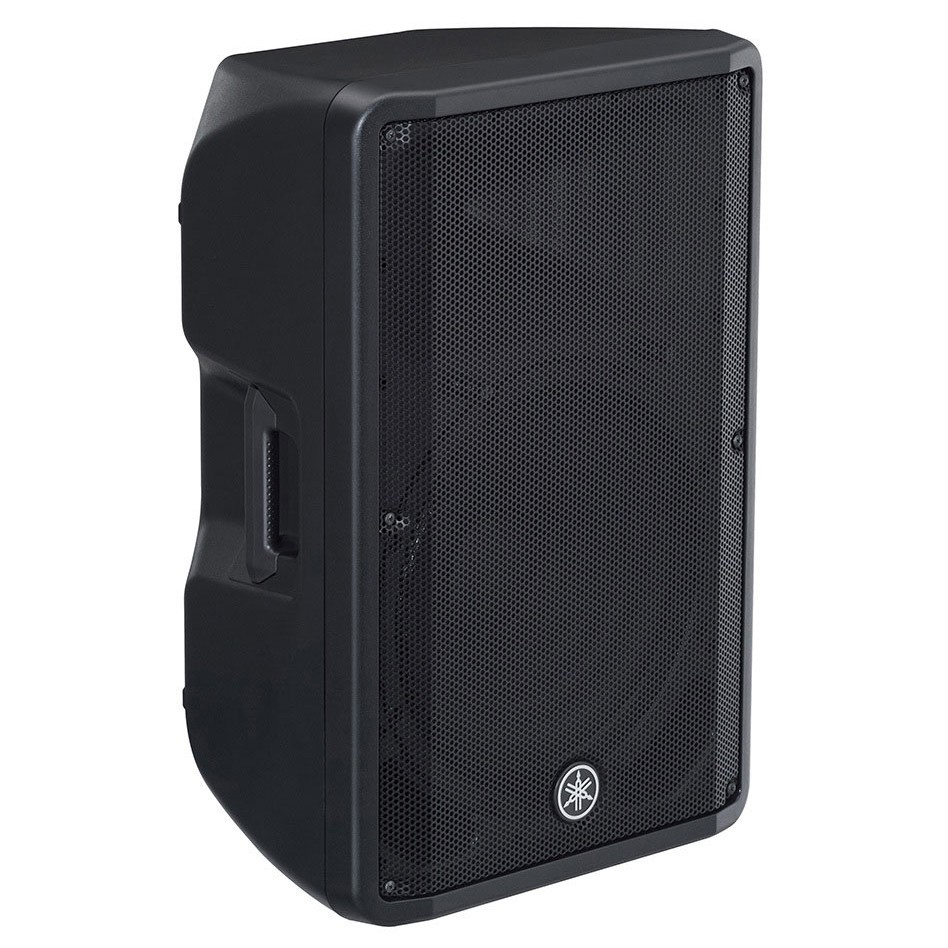

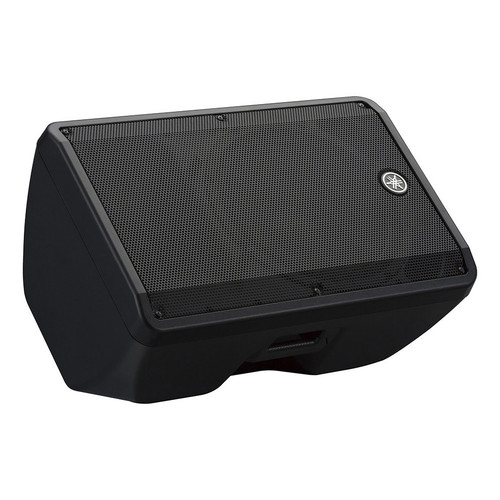

The CBR15 15" Passive Loudspeaker provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.
The Yamaha CBR15 comes equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5" compression driver, ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.
CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.
| Speaker Type | 2-way Speaker, Bass-reflex Type |
|---|---|
| Frequency Range (-10 dB) | 46 Hz - 20 kHz |
| Nominal Coverage | H - 90°; V - 60° |
| Components - LF | 15" Cone, 2.5" Voice Coil (Ferrite Magnet) |
| Components - HF | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) |
| Crossover | 2.0 kHz |
| Power Rating | NOISE: 250W PGM: 500W PEAK : 1000W |
| SPL Sensitivity (1W; 1m on axis) | 96 dB SPL |
| SPL Peak (Calculated) | 126 dB SPL |

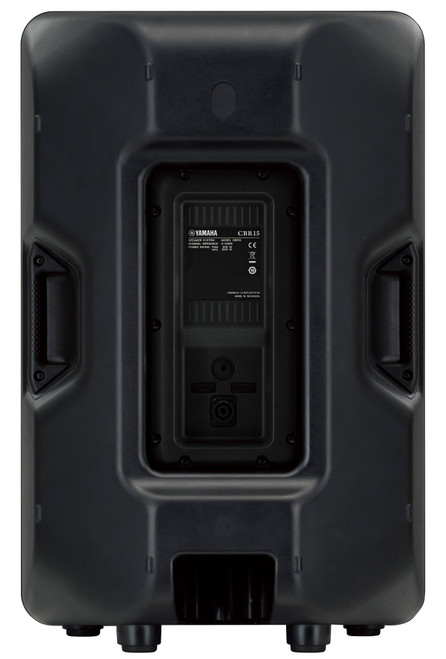

| I/O Connectors | 1/4" Phone x 1, speakON NL4MP x 1 |
| Cabinet Material | Plastic |
| Finish | Black |
| Flying and Mounting Hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts) |
| Pole Socket | Φ35 mm Bottom x 1 |
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 |
| Dimensions (H x W x D) | 27.6" (700mm) x 17.9" (455 mm) x 14.9" (378 mm) |
| Net Weight | 39 lbs (17.7 kg) |
