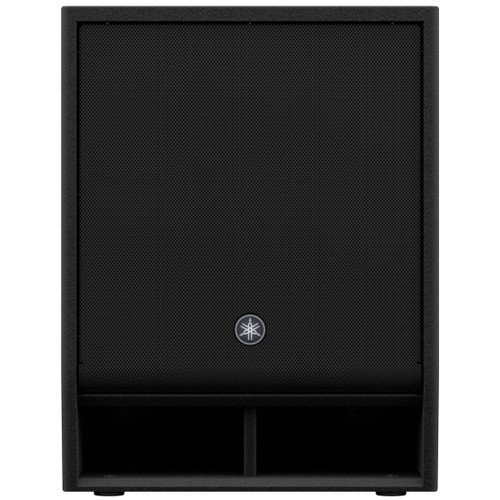

Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black
Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black
Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black
Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black
Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black
By Yamaha

Yamaha CXS15XLFW 15" 800W High-Power Passive Subwoofer with Bass-Reflex Design - Black

Write a Review
Part #:
CXS15XLF
Model #:
CXS15XLF
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

Perfectly suited for use with CZR full-range speakers, the Yamaha CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.

Description

Yamaha CXS15XLF 15" 800W Passive Subwoofer

Perfectly suited for use with CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments; from live bands at outdoor festivals to DJ’s in clubs - these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low-frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

Features

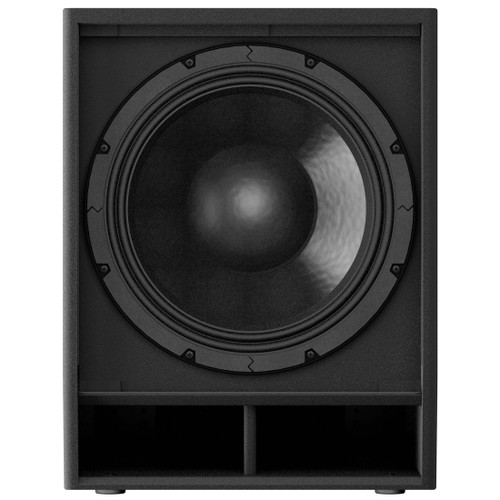

  • 15" subwoofer with 4" Voice Coil
  • High power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • SpeakON NL4MP x 3 (Parallel x2, Output x1)
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

Specifications
Frequency Range (-10 dB) 33 Hz - 3.5kHz
Power Rating 800 W (EIA 426-A)
Maximum SPL 130 dB
LF Driver 15" Cone, 4" Voice Coil, Ferrite magnet
Optional Accessories Cover: SPCVR-DXS15X, Casters: SPW-1
Dimensions (H x W x D) 23.1" (587 mm) x 17.7" (450 mm) x 23.6" (600 mm)
Weight 78.5 lbs (35.6 kg)

DOCUMENTS

Related Products

Yamaha CXS18XLF 18" 1000W Bass-Reflex Subwoofer Yamaha CXS18XLF 18" 1000W Bass-Reflex Subwoofer

Yamaha CXS18XLF 18" 1000W Bass-Reflex Subwoofer

Yamaha CXS18XLF 18" 1000W Passive Subwoofer Perfectly suited for use with CZR full-range speakers, the CXS18XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity,...
MSRP: $1,551.00
$1,034.99

Usually arrives in 5-9 business days.

MSRP: $1,551.00
$1,034.99
Add to Cart The item has been added
Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black

Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black

Yamaha CZR10 10-Inch 2-Way Bi-Amped Passive Loudspeaker The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design...
MSRP: $1,184.00
$789.99

Usually arrives in 5-9 business days.

MSRP: $1,184.00
$789.99
Add to Cart The item has been added
Yamaha CZR12 12" 2-Way 800W Passive Loudspeaker with 90° x 60° Coverage - Black Yamaha CZR12 12" 2-Way 800W Passive Loudspeaker with 90° x 60° Coverage - Black

Yamaha CZR12 12" 2-Way 800W Passive Loudspeaker with 90° x 60° Coverage - Black

Yamaha CZR12 12" 2-Way Bi-Amped Passive Loudspeaker The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its...
MSRP: $1,334.00
$889.99

Usually arrives in 5-9 business days.

MSRP: $1,334.00
$889.99
Add to Cart The item has been added

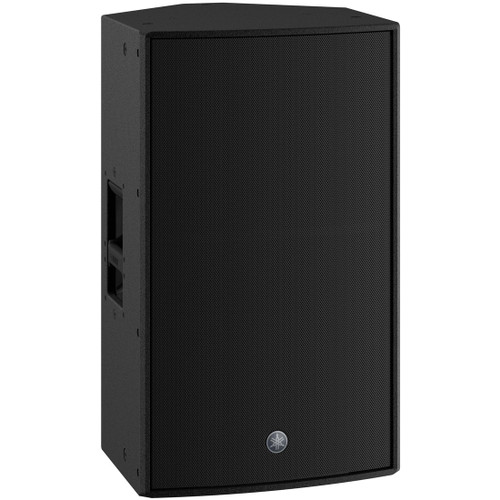

Yamaha CZR15 15" 2-Way 800W Passive Loudspeaker with 90° x 50° Coverage - Black Yamaha CZR15 15" 2-Way 800W Passive Loudspeaker with 90° x 50° Coverage - Black
