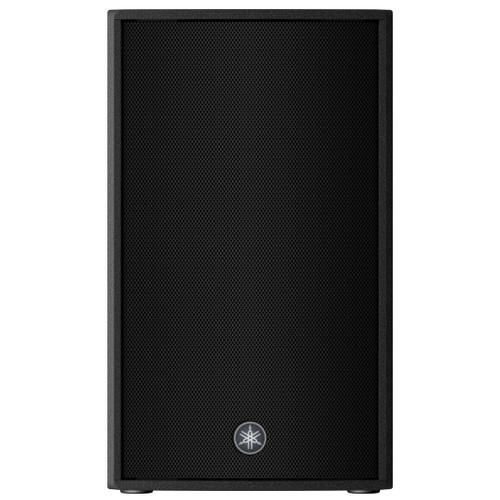

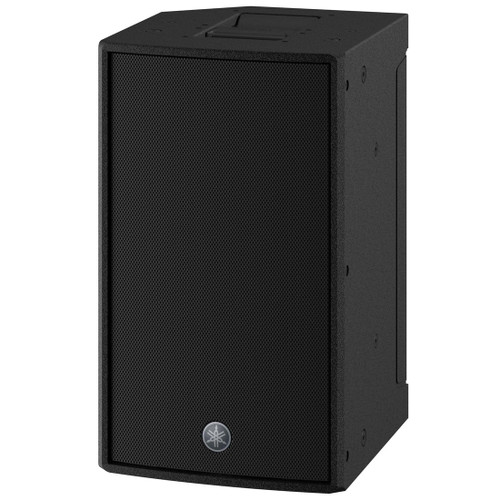

Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black

By Yamaha

Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black

Name: Yamaha CZR10 10" 2-Way 700W Passive Loudspeaker with 90° x 60° Coverage - Black
Brand: Yamaha
SKU: YAMAHA-CZR10
Price: 789.99 USD
Availability: InStock

Write a Review

Part #:

CZR10

Model #:

CZR10

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for a range of live performance and installed sound environments.

Description

Yamaha CZR10 10-Inch 2-Way Bi-Amped Passive Loudspeaker

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for a range of live performance and installed sound environments - from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low-frequency performance.

For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

Features

2-way loudspeaker with a 2" HF and a 10" LF
Features Yamaha's own Wide Dispersion CD Waveguide Horn
High power 700W(PGM) power handling and Bi-amp capable

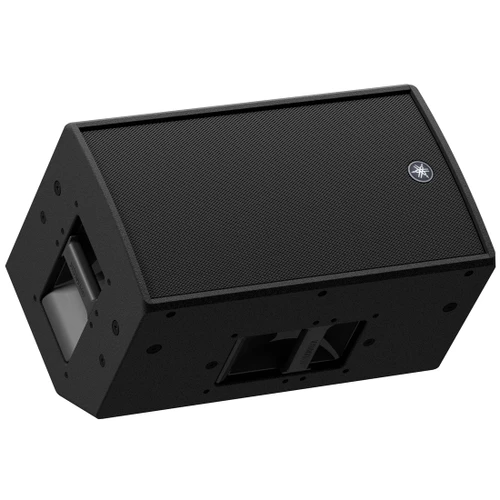

Floor monitoring setting
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket
Optional speaker cover (SPCVR-DZR10)

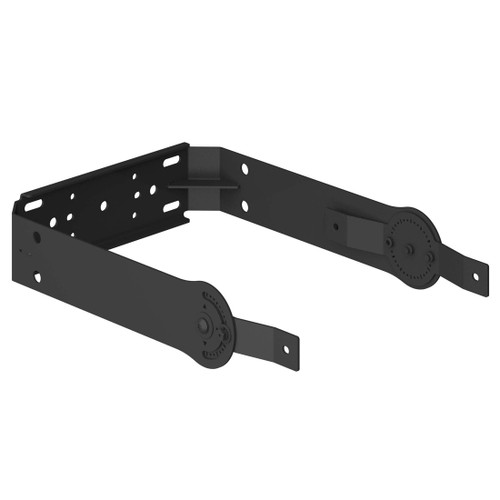

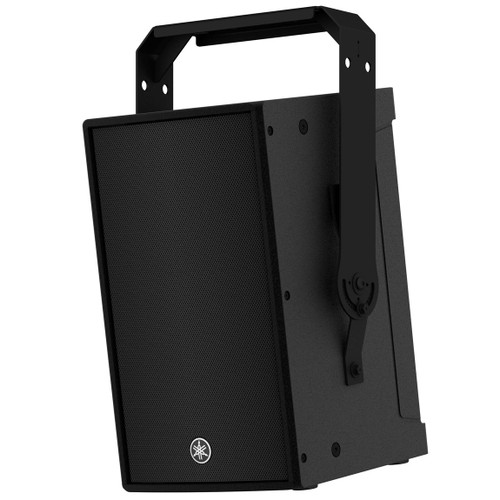

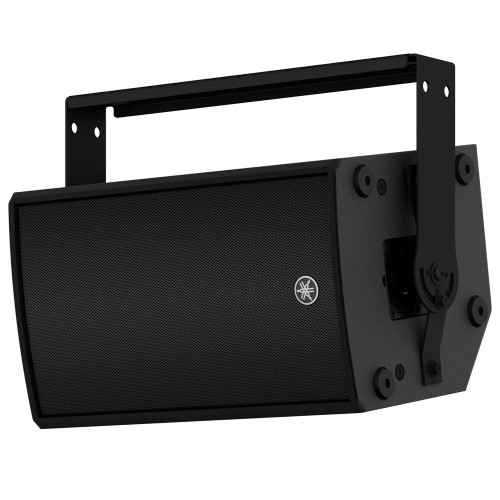

Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement

Specifications

Frequency Range (-10 dB)	43 Hz - 20 kHz
Coverage Angle	H 90° x V 60° Rotatable Constant Directivity Horn
Power Rating	Passive (EIA 426-A) 700W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
Maximum SPL	Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
LF Driver	10" Cone, 3" Voice Coil, Neodymium magnet
HF Driver	2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Dimensions (H x W x D)	21.1" (537 mm) x 12.4" (537 mm) x 13.6" (345 mm)
Weight	30.9 lbs (14 kg)
