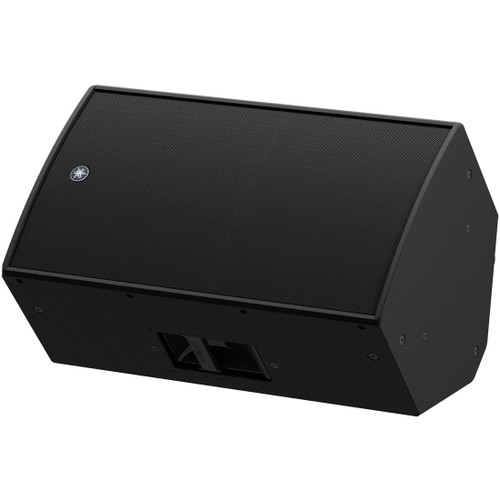

Yamaha CZR15 15" 2-Way 800W Passive Loudspeaker with 90° x 50° Coverage - Black

By Yamaha

Yamaha CZR15 15" 2-Way 800W Passive Loudspeaker with 90° x 50° Coverage - Black

Name: Yamaha CZR15 15" 2-Way 800W Passive Loudspeaker with 90° x 50° Coverage - Black
Brand: Yamaha
SKU: YAMAHA-CZR15
Price: 994.99 USD
Availability: InStock

Write a Review

Part #:

CZR15

Model #:

CZR15

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for a range of live performance and installed sound environments.

Description

Yamaha CZR15 15" 2-Way Bi-Amped Passive Loudspeaker

The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for a range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low-frequency performance.

For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low-frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

Features

2-way loudspeaker with a 2" HF and a 15" LF
Features Yamaha's own Wide Dispersion CD Waveguide Horn
High power 800W(PGM) power handling and Bi-amp capable
Floor monitoring setting enables mirroring configuration
Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
Dual-angle pole socket
Optional speaker cover (SPCVR-DZR15)
Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement

Specifications

Frequency Range (-10 dB)	43 Hz - 20 kHz
Coverage Angle	H 90° x V 50° Rotatable Constant Directivity Horn
Power Rating	Passive (EIA 426-A) 700W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
Maximum SPL	Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL
LF Driver	15" Cone, 3" Voice Coil, Neodymium magnet
HF Driver	2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Dimensions (H x W x D)	30" (761 mm) x 17.7" (450 mm) x 18.1" (460 mm)
Weight	47 lbs (21.3 kg)
