KJ Larry
Best light speaker available
Light (23lbs) powerful and clean add a sub and you can't believe the sound.
By Yamaha

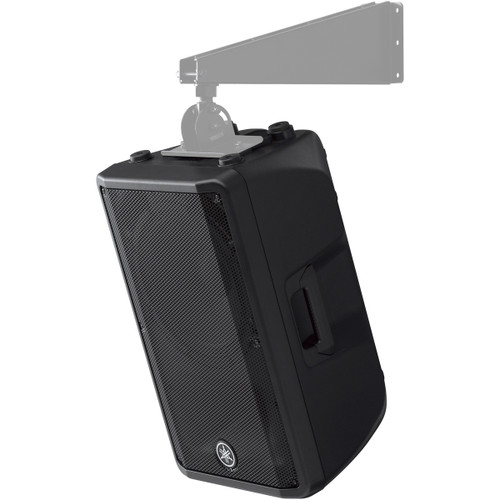

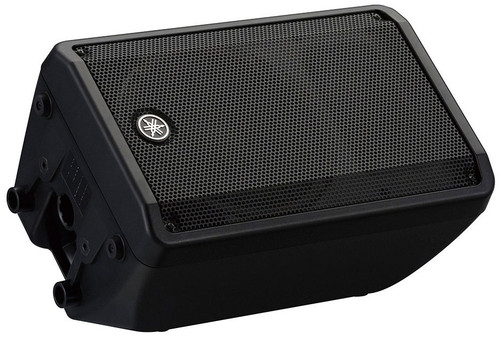

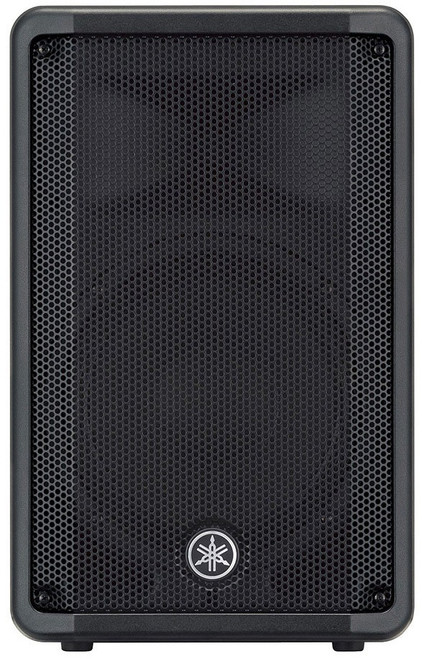

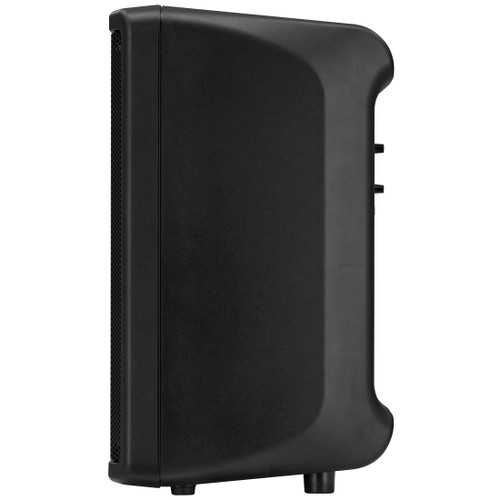

Yamaha DBR10 10" 2-Way 700W Powered Loudspeaker
Write a Review
Yamaha DBR10 10" 2-Way 700W Powered Loudspeaker
Part #:
DBR10
Model #:
DBR10
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
Yamaha DBR10 10" 2-Way 700W Powered Loudspeaker
The DBR10 10" 2-way powered loudspeaker is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments. Wherever your music may take you, theDBR10 is up to the task of delivering powerful, high-quality sound with an unmatched economy of transport and setup time.
The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10", 12" and 15" models, each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
Features
- 700 watts class D power
- Lightweight enclosure
- Broad coverage
- FIR-X tuning for excellent sound quality with high resolution and a smooth frequency response
- D-Contour optimizes the DBR10 for main speaker or floor monitor use
- Onboard mixer lets you select either a direct output or a mixed output
- Comprehensive inputs for mixer, musical instrument, or media players
- Amplifier and power supply design provides powerful output from a compact speaker
- DSP-controlled protection functionality promotes optimum reliability
Specifications
| Frequency Range (-10 dB) | 55Hz - 20kHz |
|---|---|
| Nominal Coverage | H: 90°; V: 60° |
| Components - LF | Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite |
| Components - HF | Diaphragm: 1", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
| Output Power | Dynamic: 700W (LF: 500W, HF: 200W) / Continuous: 325W (LF: 260W, HF: 65W) |
| Maximum Output Level (1m; on axis) | 129 dB SPL |
| I/O Connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Heat Dissipation | Fan cooling, 4 speeds |
| Power Requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
| Power Consumption | 60W (1/8 Power Consumption), 18W (Idle) |
| Finish | Black |
| Cabinet Material | Plastic |
| Flying and Mounting Hardware | Bottom x 2 (Fit for M8 x 15 mm eyebolts) |
| Pole Socket | 35 mm (Bottom x 1) |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-42200 (Optional Speaker brackets) |
| Dimensions (H x W x D) | 19.4" (493 mm) x 12.1" (308 mm) x 11.4" (289 mm) |
| Net Weight | 23.2 lbs (10.5 kg) |
DOCUMENTS
Reviews
Write a ReviewRelated Products
Yamaha DBR12 12" 2-Way 1000W Powered Loudspeaker
Yamaha DBR12 12" 2-Way Powered Loudspeaker
The Yamaha DBR12 12" 2-way Powered Loudspeaker represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any...
MSRP:
$611.00
$459.99
Usually arrives in 5-9 business days.
Yamaha DBR15 15" 2-Way 1000W Powered Loudspeaker
The Yamaha DBR15 achieves best-in-class SPL of up to132 dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live...
MSRP:
$821.00
$559.99
Usually arrives in 5-9 business days.

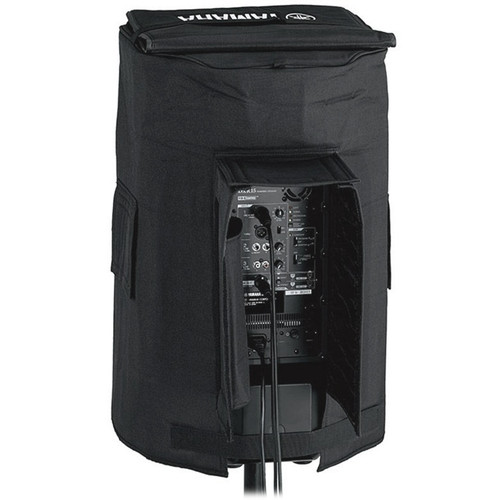

Yamaha SPCVR-1001 Padded Speaker Cover for DXR10, DXR10mkII, DBR10, and CBR10 Speakers
