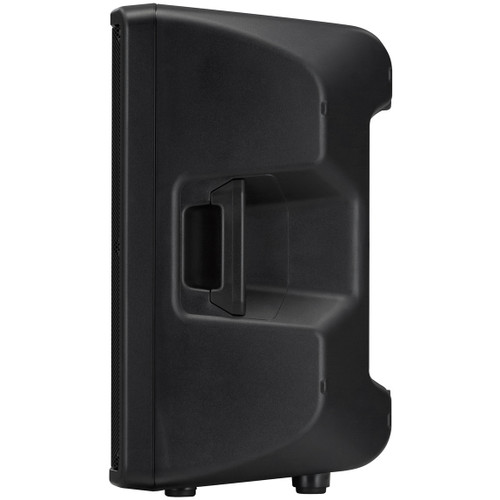

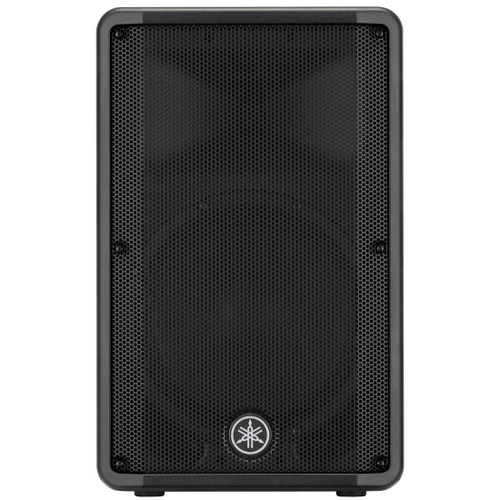

The Yamaha DBR12 12" 2-way Powered Loudspeaker represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.
The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10", 12" and 15" models, each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
| Frequency Range (-10 dB) | 50Hz - 20kHz |
|---|---|
| Nominal Coverage | H: 90°; V: 60° |
| Components - LF | Diameter: 12" cone, Voice Coil: 2", Magnet: Ferrite |
| Components - HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
| Output Power | Dynamic: 1000W (LF: 800W, HF: 200W) / Continuous: 465W (LF: 400W, HF: 65W) |
| Maximum Output Level (1m; on axis) | 131 dB SPL |
| I/O Connectors | INPUT 1: Combo x1, INPUT 2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Heat Dissipation | Fan cooling, 4 speeds |
| Power Requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
| Power Consumption | 74W (1/8 Power Consumption), 18W (Idle) |
| Cabinet Material | Plastic |
| Finish | Black |
| Flying and Mounting Hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
| Pole Socket | 35 mm (Bottom x 1) |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker brackets) |
| Dimensions (H x W x D) | 23.7" (601 mm) x 14.8" (376 mm) x 13.7" (348 mm) |
| Net Weight | 34.8 lbs (15.8 kg) |
