Yamaha DXS15 mk3 15" 2500W Powered Subwoofer with DSP and Cardioid Mode

Part #:
DXS15MKIII
Model #:
DXS15 mk3
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yamaha DXS15 mk3 15" 2500W powered subwoofer delivers deep, high-impact bass with up to 133 dB SPL. Featuring advanced DSP, D-XSUB processing down to 35 Hz, and cardioid mode, it is ideal for DJs, live sound, and professional PA systems.

Description

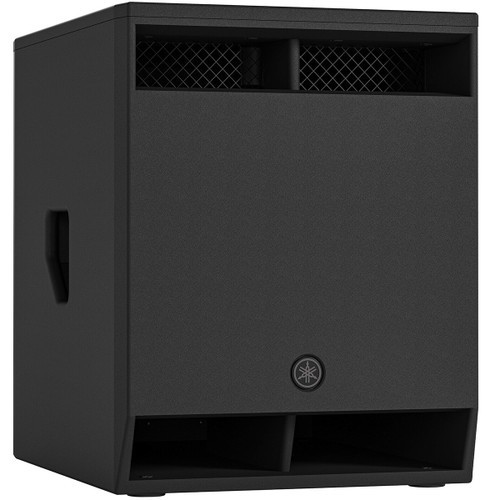

Yamaha DXS15 mk3 15" 2500W Powered Subwoofer

The DXS15 mk3 is the mid-size model in Yamaha's latest DXS series of powered subwoofers, engineered to deliver deep, clear, and powerful low-frequency performance for professional sound reinforcement. Equipped with a high-efficiency 2500W Class-D amplifier and a 15-inch high-durability woofer, it produces impressive bass output with a maximum SPL of 133 dB, making it ideal for live sound, DJ applications, and medium to large venues.

Its optimized bandpass cabinet design enhances bass efficiency while minimizing unwanted resonance and cabinet noise. Built-in D-XSUB processing allows users to extend low-frequency response down to 35 Hz, while flexible DSP crossover settings ensure seamless integration with full-range speakers such as the DXR mk3 series for a balanced and powerful system.

For enhanced control in live environments, the DXS15 mk3 features a cardioid mode that reduces low-frequency buildup on stage, improving clarity and overall mix accuracy. The durable plywood enclosure is acoustically optimized for superior sound quality, and practical features like dual pole sockets (M20 and 35 mm), along with optional wheels and protective covers, make it a reliable and versatile solution for both portable and installed audio systems.

Features

  • 15" high-output woofer with 3" voice coil for deep, powerful bass
  • 2500W Class-D amplifier delivers high-impact low-frequency performance
  • Maximum output of 133 dB SPL for professional live sound applications
  • D-XSUB processing extends low-frequency response down to 35 Hz
  • Advanced DSP with flexible crossover settings for system optimization
  • Cardioid mode reduces stage bass buildup for clearer live sound
  • Optimized bandpass cabinet design minimizes distortion and cabinet noise
  • Durable plywood enclosure for enhanced acoustic performance and reliability
  • Dual pole sockets (M20 and 35 mm) for mounting full-range speakers
  • Seamless integration with Yamaha DXR mk3 series loudspeakers
  • Ideal for DJs, live sound, and medium to large venue applications
  • Optional speaker wheels for improved portability
  • Optional protective cover for transport and storage

Specifications

Speaker Type Powered Subwoofer, Band-pass
Frequency range (-10 dB) 35 Hz - 140 Hz
Maximum Output Level 133 dB SPL (Measured peak, IEC noise @ 1 m)
Components LF: Diameter: 15" cone, Voice Coil: 3"
Class-D
Power Rating PEAK: 2500W, RMS: 1250W
Cooling Fan Cooling, 5 Speeds
Power Consumption 130W (1/8 power), 40W (Idle)
Power Requirements 100V - 240V 50/60 Hz
A/D D/A Converters 32 bit/96 kHz Sampling
Processors HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: NORMAL, XTENDED LF
Inputs INPUT1 & 2: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu
Outputs OUTPUT1 & 2: XLR3-32 THRU or DSP OUT
Bluetooth Ver. 5.0, A2DP (SBC, AAC), Class 1
Control and Others D-Remote (iOS/Android app)
Finish Durable Polyurea Painting, Black
Handle Side x2
Pole Socket Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Dimensions (H x W x D) 24.1" (611 mm) x 18.9" (480 mm) x 24.2" (614 mm)
Weight 81.6 lbs (37 kg)
