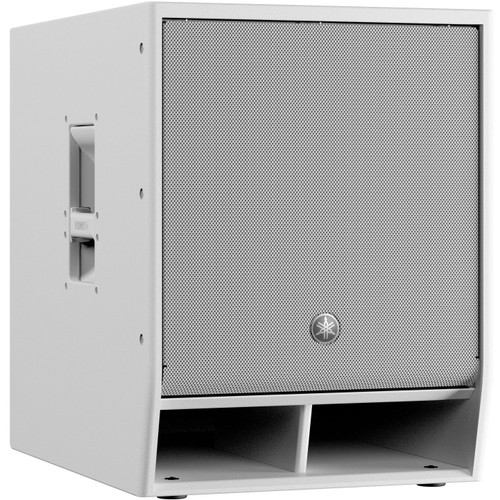

Yamaha DXS18XLF-DW 18-Inch Dante-Enabled White Subwoofer

The DXS18XLF-DW is a high-performance powered subwoofer designed for professional audio applications. Perfectly paired with Yamaha DZR full-range speakers, this white 18-inch subwoofer delivers extended low-frequency response, powerful 136 dB SPL output, and crystal-clear bass for live sound, touring, and installed audio setups.

Equipped with a 1600W Class-D amplifier and a 30 Hz to 150 Hz frequency range, the DXS18XLF-DW provides precise, high-impact low end. Its 96 kHz DSP ensures high-resolution audio with super low latency, while the intuitive LCD display allows access to PEQ, delay, routing, and preset loading. D-XSUB processing and cardioid mode offer advanced control over low-frequency dispersion.

Featuring Dante digital audio I/O (2-in / 2-out) with sample rate conversion, this subwoofer enables seamless networked audio integration for modern FOH and DSP setups. The lightweight, rugged plywood cabinet is finished with premium Polyurea coating in durable white. Optional accessories include a speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1), making the DXS18XLF-DW both versatile and transport-ready.

Features

Features

18" powered bass-reflex subwoofer with extended low-frequency response
High-output 1600W Class-D amplifier for powerful, clean bass
Maximum 136 dB SPL with 30 Hz to 150 Hz frequency range
96 kHz DSP for high-resolution audio with super low latency
Dante I/O (2-in / 2-out) with SRC for digital audio networking
Intuitive LCD display for PEQ, delay, routing, and preset adjustments
D-XSUB processing and cardioid mode capability for advanced control
Lightweight, durable plywood cabinet with premium Polyurea coating
Available in professional white finish
Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
Perfect companion for Yamaha DZR full-range speakers

Specification

Speaker Type	Powered Subwoofer, bass-reflex
Frequency Range (-10 dB)	30 Hz - 150 Hz
Components	LF: 18" Cone, 4" Voice Coil, Ferrite magnet
Sampling Frequency Rate	Internal: 96 kHz and FIR Filter
A/D D/A Converters	96 kHz AD/DA
Maximum Output Level (1m; on axis)	136 dB SPL
SRC	Yes
Power Rating	Dynamic: 1600W, Burst (20ms): 1300W, Continuous: 1200W
I/O Connectors	Analog IN: Combo x 2, Line level (Maximum +24 dBu), Input impedance 20 kΩ Analog OUT: XLR3-32 x 2, CH1/2: THRU or DSP OUT
Digital I/O	Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Amplifier Class	Class-D
Cooling	Fan cooling, Variable speeds
Power Consumption	40W (Idle), 180W (1/8)
Handle	Aluminium die-cast, Side x 2
Finish	Plywood, Durable Polyurea Painting, White
Dimensions (H x W x D)	25.9" (657 mm) x 21.7" (550 mm) x 28.3" (720 mm)
Weight	107.8 lbs (48.9 kg)
