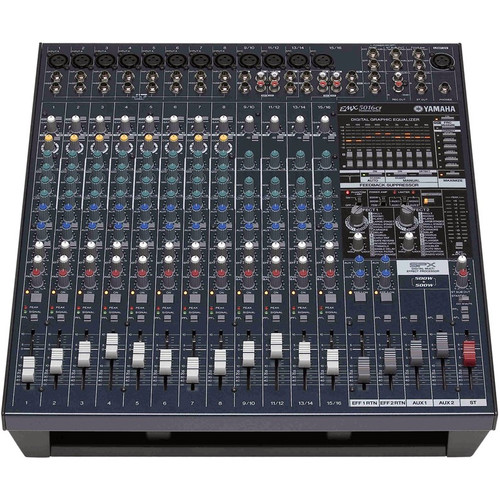

Yamaha EMX5016CF 16 Channel Powered Mixer (Discontinued)
Yamaha EMX5016CF 16 Channel Powered Mixer (Discontinued)
Yamaha EMX5016CF 16 Channel Powered Mixer (Discontinued)
Yamaha EMX5016CF 16 Channel Powered Mixer (Discontinued)
By Yamaha

Yamaha EMX5016CF 16 Channel Powered Mixer (Discontinued)

Write a Review
Part #:
EMX5016CF
Model #:
EMX5016CF
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL
The Yamaha EMX5016CF Powered Mixer takes the confusion out of setting up a professional-sounding live music experience.

Description
This 16-channel stereo powered mixer, which includes two 500-watt amplifiers, is ideal for bands, churches and small rental applications. The EMX5016CF delivers the convenience of an integrated powered mixer with input capacity, flexible features, and solid sound that critical live sound applications demand. It is remarkably compact and portable for a live sound system with this much capability, but offers performance and reliability that will satisfy the discerning professional user either on the road or in installed applications. And thanks to leading Yamaha digital technology, the EMX5016CF also includes a number of innovations that make it easier than ever to achieve top-class sound in just about any venue. An impressive power output of 500 watts per channel means it can handle fairly large audiences, indoors or out. The EMX5016CF goes considerably beyond the standard definition of "powered mixer," entering the realm of serious sound reinforcement.

Features
  • Serious Live Sound Capability Plus Innovative Digital Features
  • Versatile 16-Input Configuration Adapts to Varied Source Requirements
  • Advanced Channel EQ
  • Ample I/O for Expansion and Integration
  • One-knob Compression On Mono Channels
  • 9-band Digital Graphic EQ with Presets & Memory
  • FRC (Frequency Response Correction) System
  • Automatic Feedback Suppression
  • Multi-band "Maximizer"
  • Dual Yamaha SPX Effect Processors
  • Dual AUX Sends
  • Pro-class Features

Specifications
Maximum Output Power @ 0.5 % THD at 1 kHz 500 W/4 Ω 350 W/8 Ω (UA) 320 W/8 Ω (H)
Frequency Response -3, 0, 1 dB 20Hz-20kHz, ref to the 1kHz output level, GAIN=MIN, PAD=OFF
Total Harmonic Distortion Less than 0.3 % (THD+N) +14dBu output into 600 Ω @ 20 Hz-20 kHz
Hum & Noise Equivalent Input Noise, -128 dBu, GAIN=MAX, 20 Hz-20 kHz, CH1-8 MIC
Crosstalk @ 1 kHz -68 dB
Input Connectors CH 1-8: XLR and Phone CH 9/10-15/16: XLR. Phone and Pin
Channel EQ CH 1-8: HIGH (10 k, Shelving), MID (mono: 250-5 k, st: 2.5 k, Peaking), LOW (100, Shelving)
Channel EQ CH 9/10-15/16: HIGH (10 k, Shelving), MID (st: 2.5 k, Peaking), LOW (100, Shelving)
Phantom Voltage 48 V
Digital Graphic Equalizer 9 Band (63, 125, 250, 500, 1 k, 2 k, 4 k, 8 k, 16 kHz), Preset x 3, User preset x 3
Digital Effects SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs x 2
Power Amp. Mode L/R, AUX1/MONO, AUX1/2
Dimensions (H x W x D) 6.13" (155 mm) x 17.5" (444 mm) x 19.44" (493 mm)
Weight 24.3 lbs (11 kg)

Related Products

Sold Out

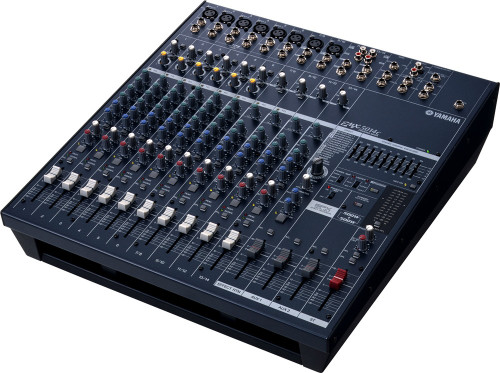

Yamaha EMX5014C 14-Channel Powered Mixer (Discontinued) Yamaha EMX5014C 14-Channel Powered Mixer (Discontinued)
