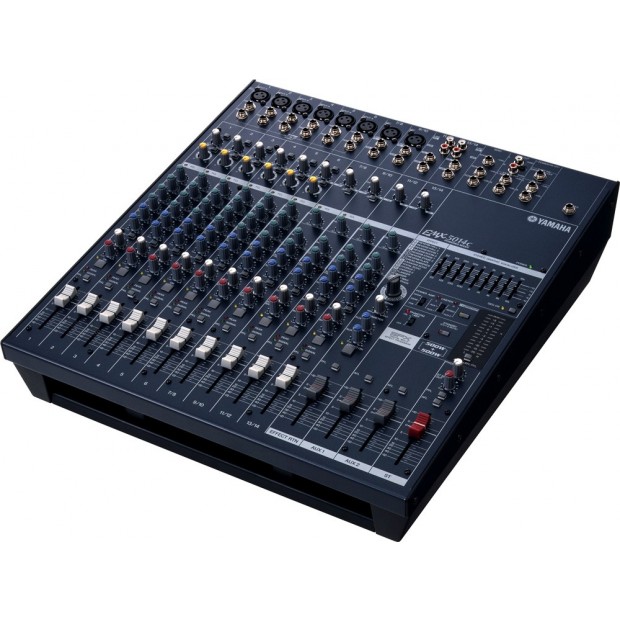

Yamaha EMX5014C 14-Channel Powered Mixer (Discontinued)

Yamaha EMX5014C 14-Channel Powered Mixer (Discontinued)

Name: Yamaha EMX5014C 14-Channel Powered Mixer (Discontinued)
Brand: Yamaha
SKU: YAMAHA-EMX5014C
Price: 899.99 USD
Availability: OutOfStock

Write a Review

Part #:

EMX5014C

Model #:

EMX5014C

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha EMX5014C is an all-in-one powered mixer that packs high-performance mixer, power amplifiers, graphic equalizers, and digital effects unit into a compact, portable console-style unit.

Description

The EMX5014C is an all-in-one powered mixer that packs high-performance mixer, power amplifiers, graphic equalizers, and digital effects unit into a compact, portable console-style unit. It's rack-mountable for easy portability, and is suited for a broad range of uses. The EMX5014C replaces the highly regarded EMX5000-12 with even further upgraded audio quality and mixer functionality. Significant overall utility and design refinements have also been implemented.

Features

All-in-one for Easy Operation and Fast Setup
Superior Sound through Painstaking Design and Parts Selection
Intuitive, Functional Controls and Connectivity
Built-in SPX Effects
High-efficiency Power Amplifiers
Lightweight, Practical Design
Uncompromising Reliability and Safety Standards
Forced Air Keeps the System Cool Even in Difficult Conditions
Six Advanced Analog Compressors Included
Practical Utility Features
Yamaha Speaker Processing
Power Amp Mode Selector
Optional Rack Mount Hardware

Specifications

8-Ohm Load (both channels driven)	350W
4-Ohm Load (both channels driven)	500W
CH 1-6	XLR and TRS Phone
CH 7/8, 9/10	XLR and 2 x TRS Phone
CH 11/12, 13/14	2 x Phone and 2 X RCA
Low	100Hz Shelving
Mid	250Hz-5kHz peaking (sweepable)
High	10kHz Shelving
Low	100Hz Shelving
Mid	250Hz-5kHz peaking
High	10kHz Shelving
Aux Sends	3 (1 Pre, 1 assignable Pre/Post, 1 Effect)
Phantom Power	48V
Graphic EQ	(ST out) 9-band (63, 125, 250, 500, 1k, 2k, 4k, 8k, 16kHz)
Digital Effects	SPX digital multi-effector 24-bit AD/DA, 32-bit processor, (24bit AD/DA, 32bit Internal Processing)
Program	16
Power Amp Mode	ST L + ST R, Aux 1 + Mono, Aux 1 = Aux 2
Power Select Switch	500W / 250W / 75W
Metering	2 x 12 segment LED
YS Processing	Yes (switchable)
Stand-by-Switch	Yes (ch 1-6)
Foot Switch Option	Effect on/off
Dimensions (H x W x D)	6.13" (155 mm) x 17.5" (444 mm) x 19.44" (493 mm)
Weight	23 lbs (10.5 kg)
