- Description
Details
Yamaha's new Installation Series Speakers address a number of important issues that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. In particular, phase characteristics have been kept smooth and consistent throughout the entire series, so you can mix and match speakers to suit any system and venue without ending up with hot and dead spots due to phase interference. And of course sonic quality is superb throughout the entire reproduction range so the full impact of the source material reaches the audience undiluted.
- Features
Features
- High power subwoofer
- Dual woofers switchable between discrete drive and parallel drive
- 3/4 inch (19 mm), 13-ply Finnish Birch for Baffle and lnner Wall
- Internally braced construction
- Twelve 10 mm (M10) threaded inserts
- Four M10 shoulder eyebolts for flying are included as standard
- Durable black or white finish, which can be painted to match any interior
- Four handles for carrying comfort

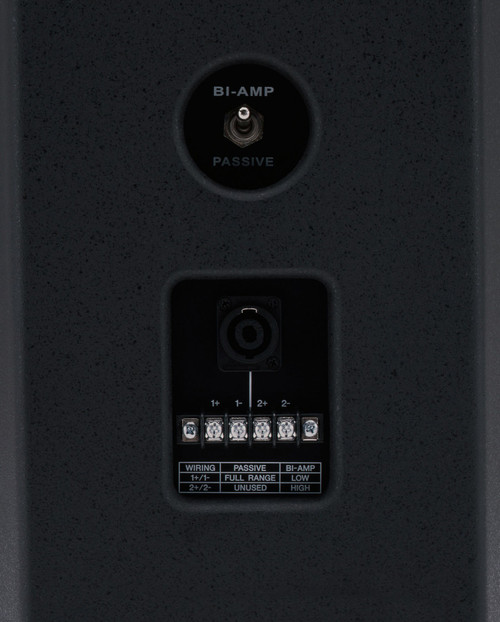

- Parallel-wired Neutrik NL4 and barrier strip connectors
- Specification
Drive Mode Parallell/Discrete Frequency Range (-10 dB) 40 Hz-2.5 kHz Power Rating (Parallel) NOISE: 1400W; PGM: 2800W; MAX: 5600W Power Rating (Discrete) NOISE: 700W x 2; PGM: 1400W x 2; MAX: 2800W x 2 Nominal Impedance Parallel: 4 ohms; Discrete: 2 x 8 ohms Sensitivity (1 W@1 m) SPL Parallel: 97dB; Discrete: 100dB Calculated Peak SPL Parallel: 134dB; Discrete: 134dB Calculated Continuous SPL Parallel: 128dB; Discrete: 128 B Components 2x 15" woofer, 4" voice coil Shape Rectangular Material 3/4 inch (19 mm), 13-ply Finish Birch (Baffle and Inner Wall), 5/8 inch (16 mm), 11-ply Finish Birch Grill 16 gauge powder coated perforated steel grilles, backed w/ acoustically transparent reticulated foam Connectors 1 x Neutrik NL4 and barrier strip, wired in parallel Flying Hardware 12 x M10 for shoulder eyebolts Handle Four Dimensions (H x W x D) 34.8" (883 mm) x 17.6" (448 mm) x 24" (610 mm) Weight 139 lbs (63 kg) - Reviews
