Yamaha IS1218 18 inch Dual High Power Subwoofer (Discontinued)

By Yamaha

Yamaha IS1218 18 inch Dual High Power Subwoofer (Discontinued)

Name: Yamaha IS1218 18 inch Dual High Power Subwoofer (Discontinued)
Brand: Yamaha
SKU: YAMAHA-IS1218
Price: 2806 USD
Availability: OutOfStock

Write a Review

Part #:

IS1218 YI

Model #:

IS1218

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Yamaha IS1218 is a high power 18" subwoofer ideal for medium to large-scale installations.

Description

Yamaha's new Installation Series Speakers address a number of important issues that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. In particular, phase characteristics have been kept smooth and consistent throughout the entire series, so you can mix and match speakers to suit any system and venue without ending up with hot and dead spots due to phase interference. And of course sonic quality is superb throughout the entire reproduction range so the full impact of the source material reaches the audience undiluted.

Features

High power 18" subwoofer
3/4 inch (19 mm), 13-ply Finnish Birch for Baffle
Internally braced construction
Twelve 10 mm (M10) threaded inserts
Four M10 shoulder eyebolts for flying are included as standard
Durable black or white finish, which can be painted to match any interior
Optional matching Array frame available
Two handles for carrying comfort

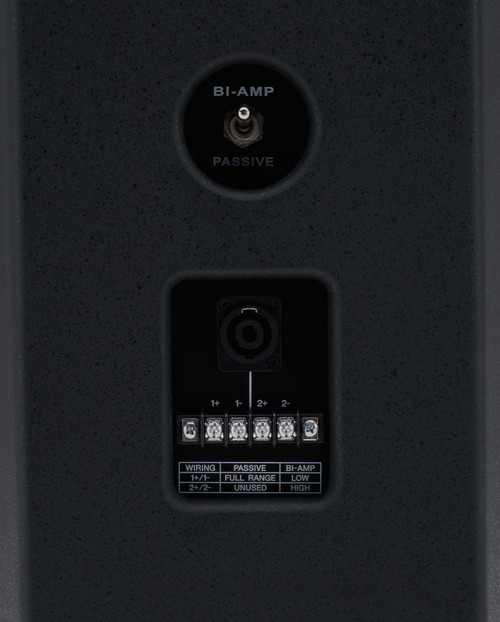

Parallel-wired Neutrik NL4 and barrier strip connectors

Specifications

Drive Mode	Paralle/lDiscrete
Frequency Range (-10 dB)	33Hz-3kHz
Power Rating (Parallel)	NOISE: 1400W; PGM: 2800W; MAX: 5600W
Power Rating (Discrete)	NOISE: 700W x 2; PGM: 1400W x 2; MAX: 2800W x 2
Nominal Impedance	Parallel: 4 ohms; Discrete: 2 x 8 ohms
Sensitivity (1 W@1 m) SPL	Parallel: 99dB; Discrete: 102dB
Calculated Peak SPL	Parallel: 136dB; Discrete: 136dB
Calculated Continuous SPL	Parallel: 130dB; Discrete: 130dB
Components	2x 18" woofer, 4" voice coil
Shape	Rectangular
Material	3/4 inch (19 mm), 13-ply Finish Birch (Baffle and Inner Wall), 5/8 inch (16 mm), 11-ply Finish Birch
Grill	16 gauge powder coated perforated steel grilles, backed w/ acoustically transparent reticulated foam
Connectors	1 x Neutrik NL4 and barrier strip, wired in parallel
Flying Hardware	12 x M10 for shoulder eyebolts
Handle	Four
Dimensions (H x W x D)	36.6" (1006 mm) x 24" (610 mm) x 27.9" (709 mm)
Weight	168 lbs (76 kg)
