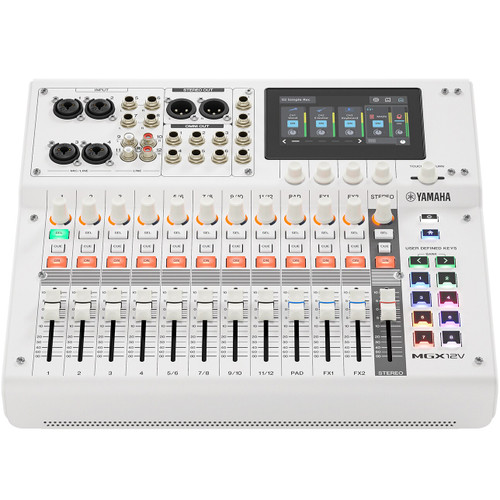

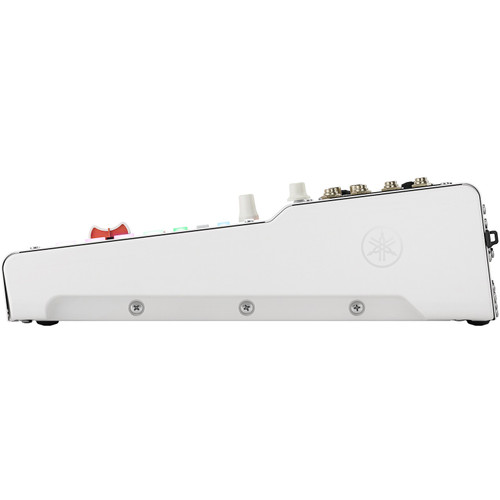

Yamaha MGX12V 18-Channel Digital Mixing Console
The MGX12V is a compact 18-channel digital mixing console with an integrated video interface, designed to simplify live streaming, content creation, corporate presentations, worship services, and professional audio production. Finished in white, the MGX12V combines modern aesthetics with powerful audio performance, featuring an intuitive 11 + 1 fader layout, a responsive 4.3-inch touchscreen, and dedicated rotary controls for fast, efficient operation. Its flexible mixing architecture includes 4 mono inputs, 4 stereo inputs, a Sound Pad channel, and 2 FX returns, providing versatile connectivity for microphones, instruments, media players, and other audio sources.
Built for today's hybrid audio and video workflows, the MGX12V features an integrated HDMI-to-USB video/audio interface with real-time HDMI passthrough and capture functionality. Extensive connectivity includes 4 combo mic/line inputs, 4 TRS line inputs, 4 RCA inputs, 2 XLR outputs, 6 TRS outputs, and 4 headphone outputs. The console supports high-resolution 18x18 USB audio at up to 32-bit/96 kHz, while onboard microSD recording allows up to 16-track recording and 2-track playback without requiring an external computer. Bluetooth 5.0 audio input adds convenient wireless playback for presentations, events, and streaming applications.
Advanced onboard DSP processing delivers professional-grade sound shaping and low-latency monitoring with tools including EQ, compression, gate, delay, REV-X reverb, multi-band compression, guitar amp simulation, pitch correction, and ducking. User-friendly features such as Auto Gain, Clip Safe, Scene Recall, and selectable Simple or Standard operating modes streamline setup and operation for users of all experience levels. Combining powerful digital mixing, integrated video capture, comprehensive recording capabilities, and an elegant white finish, the Yamaha MGX12V is a versatile all-in-one solution for modern production environments.
