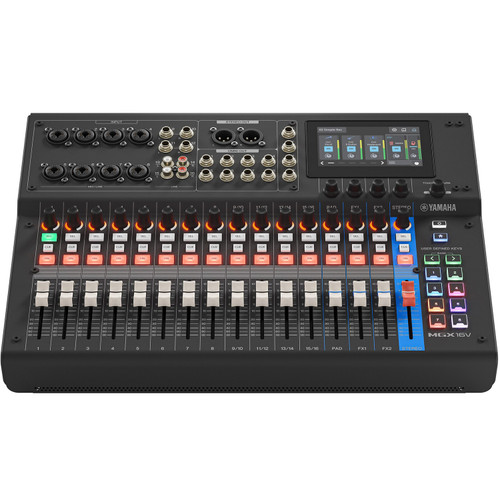

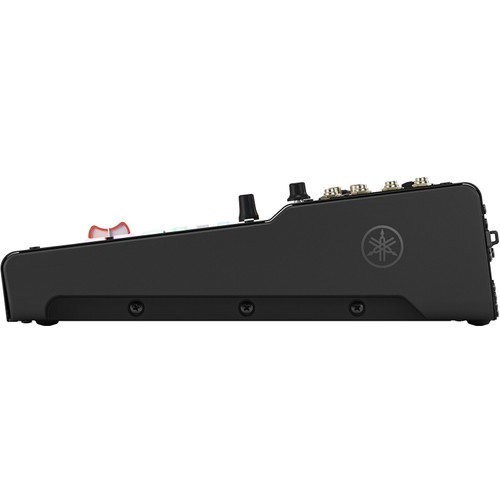

Yamaha MGX16V 22-Channel Digital Mixing Console with Video Interface
The MGX16V is a professional 22-channel digital mixing console with an integrated video interface, designed for live streaming, content creation, corporate presentations, worship services, live sound reinforcement, and multimedia production. Finished in black, the MGX16V combines powerful audio processing with video capture functionality in a compact, user-friendly design. Its intuitive 15 + 1 non-motorized fader layout, 4.3-inch touchscreen display, and dedicated control knobs provide fast access to critical mixing functions, while the flexible channel configuration includes 8 mono inputs, 4 stereo inputs, a Sound Pad channel, and 2 FX returns.
Built for modern audio and video workflows, the MGX16V features an integrated HDMI-to-USB video/audio interface with real-time HDMI passthrough and capture capabilities, making it ideal for streaming and production applications. Extensive connectivity includes 8 combo mic/line inputs, 4 TRS line inputs, 4 RCA inputs, 2 XLR outputs, 8 TRS outputs, and 4 headphone outputs. The console also offers a high-resolution 22x22 USB audio interface supporting up to 32-bit/96 kHz operation, along with onboard microSD recording for up to 16 tracks and 2-track playback. Bluetooth 5.0 audio input enables convenient wireless playback from compatible mobile devices and computers.
Advanced onboard DSP processing delivers professional sound quality with tools including gate, compressor, EQ, Sweet Spot Morphing Channel Strip, guitar amp simulation, pitch correction, ducking, multi-band compression, delay, and REV-X reverb. User-friendly features such as Auto Gain, Clip Safe, Scene Recall, and selectable Simple or Standard operating modes simplify setup and operation for users of all skill levels. Combining digital mixing, multitrack recording, HDMI video capture, and comprehensive DSP processing, the Yamaha MGX16V is a powerful all-in-one solution for today's audio and video production environments.
