Yamaha MGX12 18-Channel Digital Mixing Console

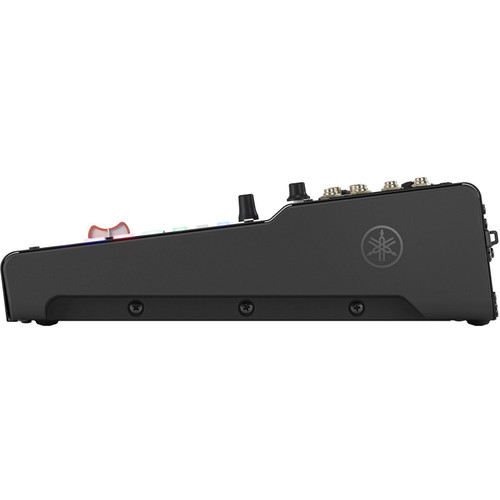

The MGX12 is a portable compact digital mixing console in black, designed for professional audio applications in live sound, studio recording, and installed environments. It features an 11 + 1 fader configuration with a 4.3-inch touchscreen and five rotary control knobs, delivering an intuitive workflow with fast access to critical mixing functions. Its flexible channel architecture includes 4 mono inputs, 4 stereo inputs, a Sound Pad channel, and 2 FX returns, making it suitable for a wide range of input sources and production needs.

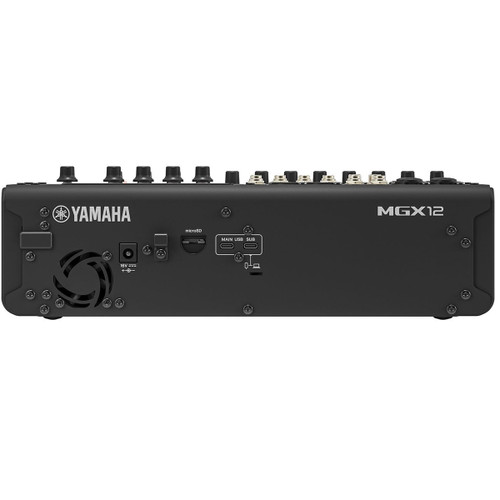

The MGX12 offers extensive routing and connectivity options with 1 stereo bus and 8 mix buses for advanced signal distribution. Local I/O includes 4 combo mic/line inputs, 4 TRS line inputs, 4 RCA line inputs, 2 XLR outputs, 6 TRS outputs, and 4 headphone outputs. High-resolution USB audio supports 18x18 recording and playback at 32-bit/96 kHz via USB Main, along with USB Sub 2x2 functionality for simplified integration. Additional recording options include microSD card support for 16-track recording and 2-track playback.
Built-in DSP provides professional-grade processing with low latency performance and features such as Auto Gain, Clip Safe, Scene Recall, and flexible operating modes for simplified operation. The MGX12 also includes Bluetooth 5.0 audio input, onboard effects processing, and comprehensive monitoring tools, making it a powerful yet portable solution for engineers, musicians, and venues requiring reliable, high-quality digital mixing.
