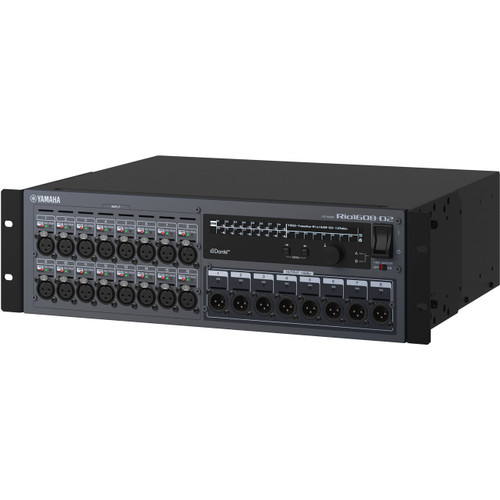

Yamaha Rio1608-D2 Dante-Ready I/O Rack (Discontinued)

Yamaha Rio1608-D2 Dante-Ready I/O Rack (Discontinued)

Name: Yamaha Rio1608-D2 Dante-Ready I/O Rack (Discontinued)
Brand: Yamaha
SKU: YAMAHA-Rio1608-D2
Price: 5663.99 USD
Availability: OutOfStock

Write a Review

Part #:

RIO1608-D2

Model #:

Rio1608-D2

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This high-performance Yamaha Rio1608-D2 I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration.

Description

The Yamaha Rio1608-D2 is a high-performance I/O rack unit that features 16 analog inputs and 8 analog outputs, and eight digital AES/EBU outputs. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation. Designed and manufactured to achieve outstanding sonic transparency in keeping with Yamaha’s “natural sound” philosophy, it plays a vital role in supporting the performance capabilities of the associated console, offer extensive freedom for placement and multi-unit combinations, and allows redundancy for high reliability. The Rio1608-D2 is not only a standard component of the RIVAGE PM7 Digital Mixing System, but is also fully compatible with CL and QL series digital mixing consoles, offering excellent audio and operational performance that makes the most of Dante networking potential.

Features

RIVAGE PM Series audio quality boosts creative freedom
16 analog inputs and 8 outputs, and 8 digital outputs
Dante network protocol for flexible system setup
Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported
Dual redundant power supplies and improved, quiet airflow
Comprehensive display and local control of gain and other parameters
Digital compensation for analog gain changes

Specifications

Signal Delay	Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
Total Harmonic Distortion	Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min
Frequency Response	+0.5, –1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, –1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
Dynamic Range	112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min
Crosstalk	-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz, Measured with a 30dB/octave filter @22kHz
Power Requirements	100-240V, 50/60Hz
Power Consumption	70W
Others	NC Value: FAN MODE LOW: NC=15 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: –20 - 60°C
Dimensions (H x W x D)	5.2" (132 mm) x 18.9" (480 mm) x 14.5" (368 mm)
Net Weight	21.2 lbs (9.6 kg)
