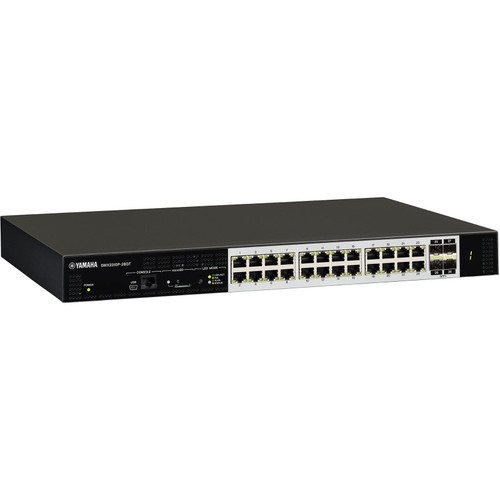

The SWX2310P-28GT is a high-performance, intelligent L2 network switch designed for large- to medium-scale AV and Dante-enabled audio networks. Leveraging Yamaha's expertise in networking and professional audio, it provides reliable, low-latency performance for distributed audio systems, ADECIA installations, and enterprise AV networks.
Ports 1-24 support PoE+, delivering up to 30W per port with a total power budget of 370W. This allows compatible Dante devices, IP speakers, and other networked equipment to be powered directly via Ethernet, reducing cabling complexity and simplifying installation. SFP+ uplinks enable scalable cascading of multiple switches for expanded network topologies.
The switch automatically applies recommended Dante settings upon connection to ADECIA devices and supports QoS, IGMP Snooping, and Energy Efficient Ethernet (EEE) to ensure stable, high-quality audio transmission across the network. Its robust design, high port density, and flexible deployment options make it ideal for professional AV installations requiring secure, scalable, and high-performance networked audio.
| LAN Ports | Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) Number of Ports: 24 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight |
|---|---|
| SFP+ Ports | Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX), IEEE 802.3ae (10GBASE-SR/10GBASE-LR) Number of Ports: 4 |
| Console Ports | Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 bit/s |
| Performance | Switching Bandwidth: 128 Gbit/s Forwarding Rate: 95.24 Mpps Flame Buffer: 1.5 MB |
| Ports Available for PoE Power Supply | 24 ports (1 - 24) |
| PoE Standards | IEEE 802.3at |
| Power Supply System | Alternative A |
| Maximum Power Supply | Per Port: 30W, All Ports: 370W |
| microSD Slot | Standard: microSD/microSDHC File System: FAT/FAT32 Number of Slots: 1 |
| Indicators | POWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED) |
| MAC Address | Indicated in product label on top panel of unit |
| Number of Fans | 4 |
| Operating Environment | Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing) |
| Storage Environment | Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing) |
| Power Supply Voltage, Frequency | AC100 - 240V, 50/60 Hz |
| Maximum Power Consumption | 459W |
| Accessories | Manual (Read This First), Power cords, Power cord clamp, Dust covers, Legs, 19-inch rack mount hardware and screws |
| Dimensions (H x W x D) | 1.73" (44 mm) x 17.32" (440 mm) x 11.57" (294 mm) |
| Weight | 8.60 lbs (3.9 kg) |
