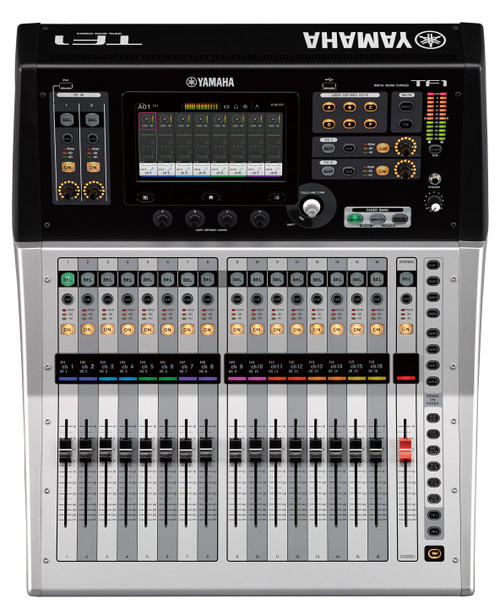

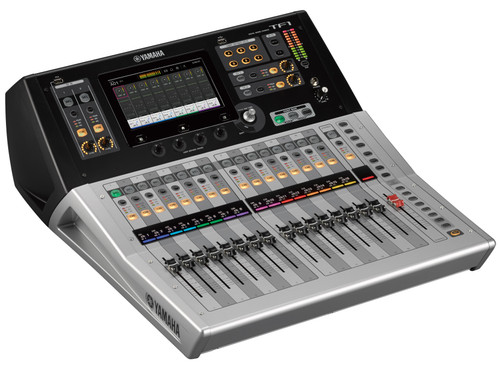

The TF1 16-channel digital console's fluid TouchFlow Operation lets you respond to the music onstage with effortless speed and freedom, ensuring that nothing restricts your inspiration. Whether you're an experienced engineer or a complete novice, the TF1's level of refinement is nothing short of astonishing, making it remarkably easy to achieve a great mix. And after listening to the TF1's great-sounding D-Pre mic preamps, we think you'll agree that this comfortable, smooth-operating compact digital mixer doesn't skimp on sound quality, either. The Yamaha TF1 is a truly evolved 16-channel digital console, thanks to its straightforward touchscreen design and practical presets and scenes.
| Fader Configuration | 16 + 1 (Master) |
|---|---|
| Mixing Capacity | |
| Input Channels | 40 (32 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) |
| Stereo Buses | 1 |
| Sub Buses | 1 |
| Input channel functions | 8 DCA Groups |
| I/O | |
| Inputs | 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
| Outputs | 16 (XLR) |
| Expansion slots | 1 |
| On-board processors - DSP | 8 Effects + 10 GEQ |
| Recording/ Playback | |
| PC/Mac (USB2.0) | Recording 34 tracks, Playback 34 tracks |
| USB Storage Device | Recording 2 tracks (USB hard drive/ SSD), Playback 2 tracks (USB hard drive/ SSD/ thumb drive) |
| Sampling frequency rate - Internal | 48 kHz |
| Signal delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz |
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders |
| Total harmonic distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. |
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT |
| Dynamic range | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
| Hum & noise level | |
| Equivalent input noise | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
| Residual output noise | –85 dBu, ST master off (Measured with an A-Weight filter) |
| Crosstalk | –100 dB, adjacent INPUT/OMNI OUT channels, Input Gain=Min. |
| Power requirements | 100–240 V 50/60 Hz |
| Power consumption | 100 W |
| Accessories | Quick Guide, Power Cord, CUBASE AI download information |
| Options | Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5) |
| Others | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C |
| Dimensions (H x W x D) | 8.9" (225 mm) x 20.1" (510 mm) x 23.6" (599 mm) |
| Net weight | 29.8 lbs (13.5 kg) |
