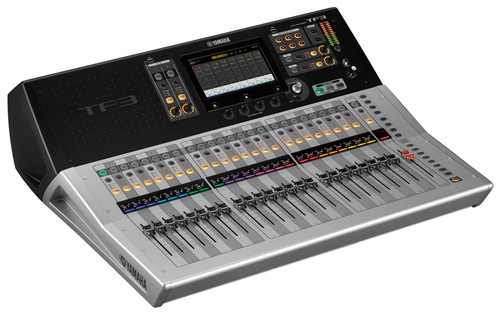

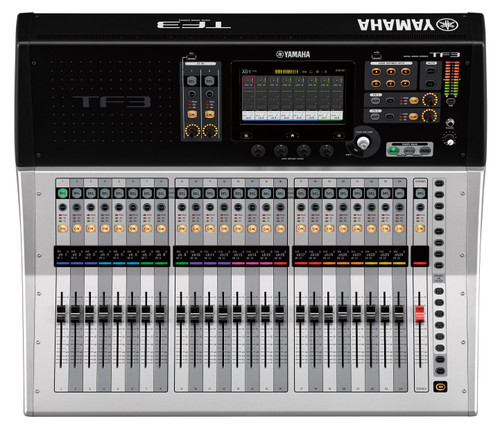

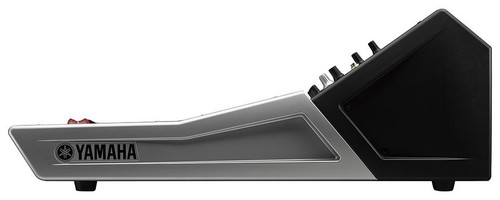

Yamaha TF3 24-Channel Digital Mixing Console
The Yamaha 24-channel digital console that will unleash your creativity, the Yamaha TF3's fluid TouchFlow Operation lets you respond to the music onstage with effortless speed and freedom, ensuring that nothing restricts your inspiration. Whether you're an experienced engineer or a complete novice, the TF3's level of refinement is nothing short of astonishing, making it remarkably easy to achieve a great mix. And after listening to the TF3's great-sounding D-Pre mic preamps, we think you'll agree that this comfortable, smooth-operating compact digital mixer doesn't skimp on sound quality, either. The Yamaha TF3 is a truly evolved 24-channel digital console, thanks to its straightforward touchscreen design and practical presets and scenes.
| Fader Configuration | 24 + 1 (Master) |
|---|---|
| Mixing Capacity | |
| Input Channels | 48 (40 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) |
| Stereo Buses | 1 |
| Sub Buses | 1 |
| Input Channel Functions | 8 DCA Groups |
| I/O | |
| Inputs | 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
| Outputs | 16 (XLR) |
| Expansion Slots | 1 |
| On-Board Processors - DSP | 8 Effects + 10 GEQ |
| Recording/ Playback | |
| PC/Mac (USB 2.0) | Recording 34 tracks, Playback 34 tracks |
| USB Storage Device | Recording 2 tracks (USB hard drive/SSD), Playback 2 tracks (USB hard drive/SSD/thumb drive) |
| Sampling Frequency Rate - Internal | 48 kHz |
| Signal Delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz |
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders |
| Total Harmonic Distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. |
| Frequency Response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT |
| Dynamic Range | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
| Hum & Noise Level | |
| Equivalent Input Noise | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
| Residual Output Noise | –85 dBu, ST master off (Measured with an A-Weight filter) |
| Crosstalk | –100 dB, adjacent INPUT/OMNI OUT channels, Input Gain=Min. |
| Power Requirements | 100–240 V 50/60 Hz |
| Power Consumption | 110W |
| Accessories | Quick Guide, Power Cord, CUBASE AI download information |
| Options | Expansion Card, Foot Switch (FC5) |
| Others | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C |
| Dimensions (H x W x D) | 8.9" (225 mm) x 28.2" (716 mm) x 23.6" (599 mm) |
| Net Weight | 37.5 lbs (17 kg) |
