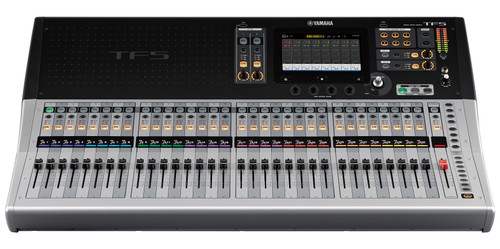

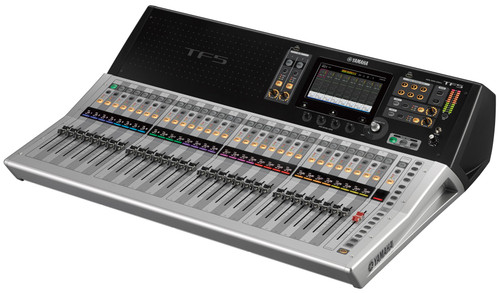

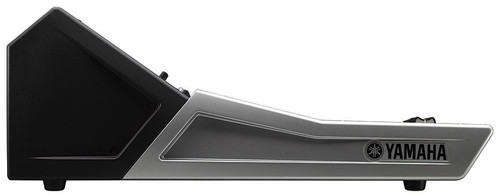

The Yamaha TF5 32-channel digital console's fluid TouchFlow Operation will completely unleash your creativity, allowing you to respond to the music onstage with effortless speed and freedom. In other words, the TF5 ensures that nothing restricts your inspiration. Whether you're an experienced engineer or a complete novice, the TF5's level of refinement is nothing short of astonishing, making it remarkably easy to achieve a great mix. And after listening to the TF5's great-sounding D-Pre mic preamps, we think you'll agree that this comfortable, smooth-operating compact digital mixer doesn't skimp on sound quality, either.
Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.
In developing the TF series Yamaha engineers built from their existing base of acclaimed high-end mixer interfaces, adding intuitive control in an interface optimized for the type of touch panel control that has become a familiar feature in a wide range of applications. Allowing most operations to be carried out via the touch panel alone, the innovative TF series interface will quickly become second nature to a broad spectrum of users. Whether you have experience with Yamaha digital consoles, work with other digital consoles, operate analog consoles, or have never operated a mixer before, TF consoles will lead you to the desired results quickly and effortlessly through a smooth, efficient workflow. The availability of physical controls surrounding the touch panel further.
- Features
Features
- 33 motor faders (32 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 1 expansion slot for NY64-D audio interface card
- Specification
Fader Configuration 32 + 1 (Master) Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return) Aux Buses 20 (8 mono + 6 stereo) Stereo Buses 1 Sub Buses 1 Input Channel Functions 8 DCA Groups I/O Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs 16 (XLR) Expansion Slots 1 On-board Processors - DSP 8 Effects + 10 GEQ Recording/Playback PC/Mac (USB2.0) Recording 34 tracks, Playback 34 tracks USB Storage Device Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive) Sampling Frequency Rate - Internal 48 kHz Signal Delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders Total Harmonic Distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. Frequency Response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT Dynamic Range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. Hum & Noise Level Equivalent Input Noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) Residual Output Noise –85 dBu, ST master off (Measured with an A-Weight filter) Crosstalk –100 dB, adjacent INPUT/OMNI OUT channels, Input Gain=Min. Power Requirements 100–240 V 50/60 Hz Power Consumption 120 W Accessories Quick Guide, Power Cord, CUBASE AI download information Options Expansion Card, Foot Switch (FC5) Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C Dimensions (H x W x D) 8.9" (225 mm) x 34.1" (866 mm) x 23.6" (599 mm) Weight 44.1 lbs (20 kg) - Documents
