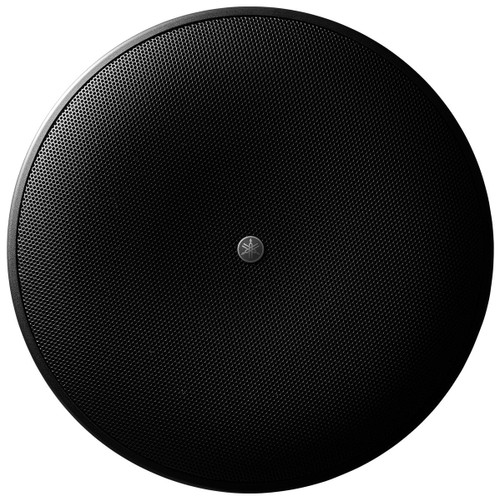

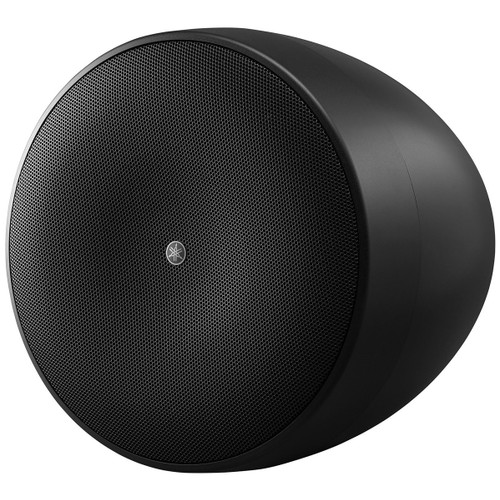

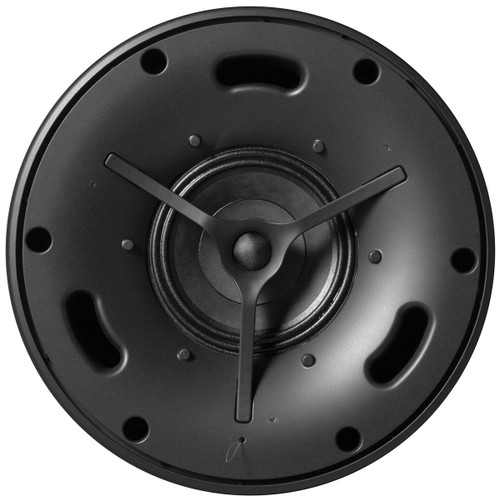

The Yamaha VXH6B is a versatile 2-way pendant speaker designed to deliver clear, natural sound for both background music and voice reproduction in spaces with high, open-structure, or sloped ceilings. Featuring a 6.5-inch woofer and a 1-inch tweeter, the VXH6B offers wide 120° dispersion and handles up to 300W of power, making it ideal for evenly covering large areas with high-quality audio. Its flexible design supports both low-impedance and high-impedance connections, providing adaptability for a wide range of sound system installations. The speaker includes paintable grilles with magnetic catches for a clean finish, as well as two 6-meter steel wire cables by Gripple for secure suspension.
| System Type | Coaxial 2 Way, Bass Reflex Type |
|---|---|
| LF Driver | 16 cm Cone |
| HF Driver | 2.5 cm Soft Dome |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz (Full-Space: 4π) |
| Crossover Frequencies | 3 kHz |
| Nominal Coverage | 120° conical (Full-Space: 4π) |
| Nominal Impedance | 8 Ω |
| Transformer Taps | 70V 60 W, 30 W, 15 W, 7.5 W 100V 60 W, 30 W, 15 W |
| Power Rating | Noise 75 W PGM 150 W Max 300 W |
| SPL | 93 dB (Full-Space: 4π) Sensitivity (1 W; 1 m on axis) |
| SPL (Peak) | 118 dB (Calculated, 1 m) |
| Dimensions (Dia x D) | 13.38" (341 mm) x 14.5 " (379 mm) |
| Weight | 12.6 lbs (5.7 kg) |
